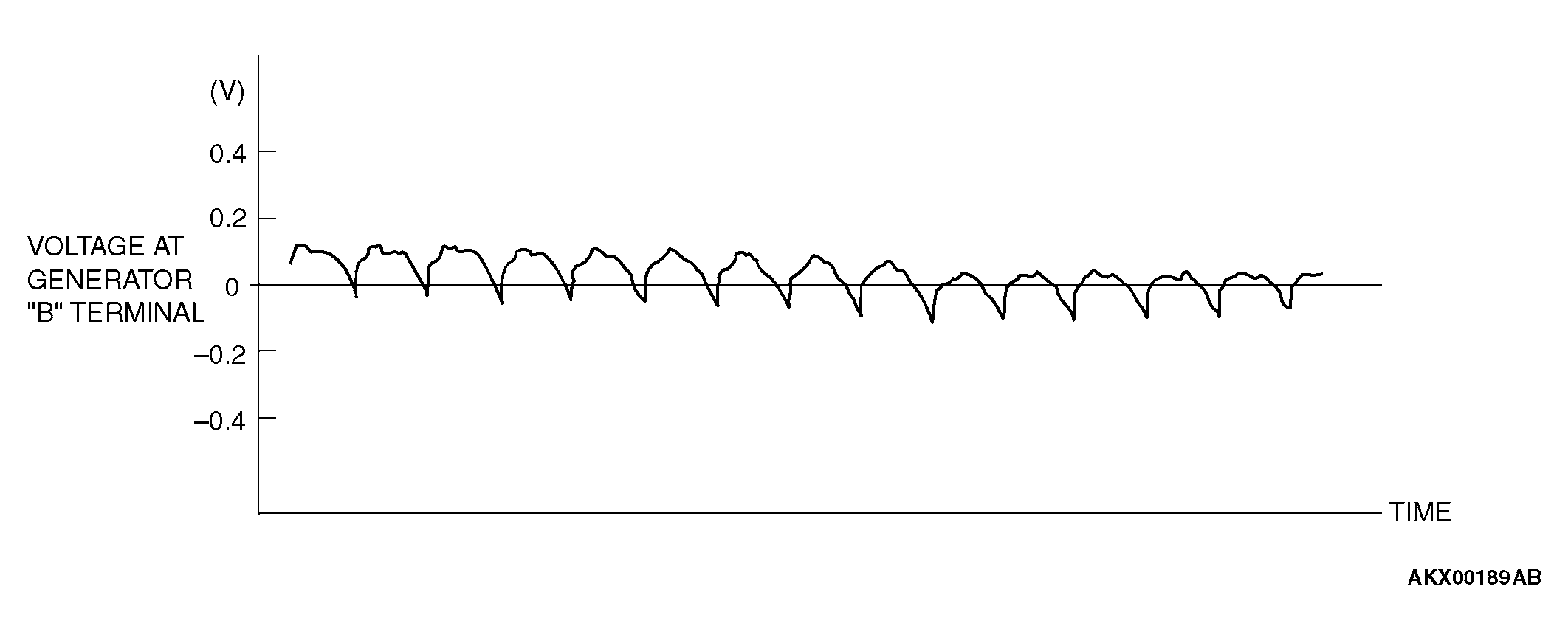

Standard Waveform
WAVE PATTERN CHART
| Observation Conditions | |
|---|---|
| FUNCTION | SPECIAL PATTERNS |
| Pattern height | Variable |
| Variable knob | Adjust while viewing the wave pattern |
| Pattern selector | Raster |
| Engine revolutions | Curb idle speed |
NOTE:

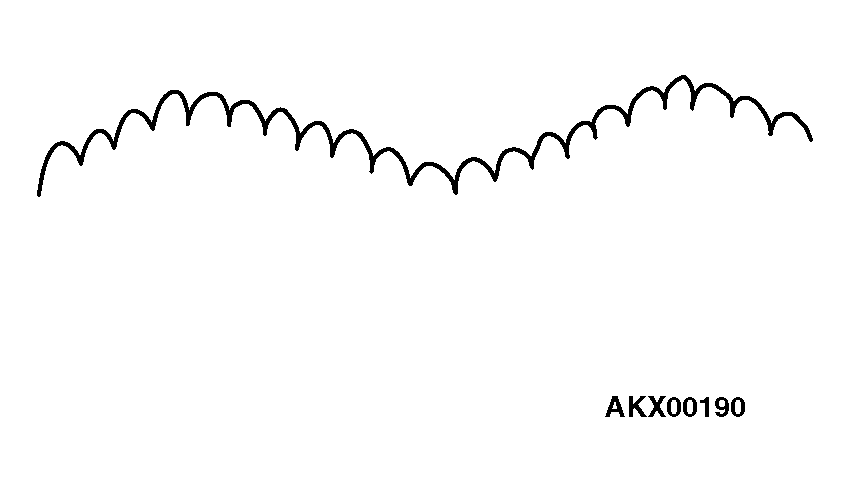

The voltage waveform of the generator "B" terminal can undulate as shown in illustration
. This waveform is produced when the regulator operates according to fluctuations in the generator load (current), and is normal for the generator.
If the ripple height is abnormally high (approximately 2 V or more during idling), the wires between the generator "B" terminal and the battery have broken due to fuse blowing, etc. The generator is usually operating properly.
If the ripple height is abnormally high (approximately 2 V or more during idling), the wires between the generator "B" terminal and the battery have broken due to fuse blowing, etc. The generator is usually operating properly.
