Special Tool

SPECIAL TOOL

TOOL TOOL NUMBER AND NAME SUPERSESSION APPLICATION
G04265051G04265052G04265053G04265054G04265055G04265056G04265057
G04265051G04265052G04265053G04265054G04265055G04265056G04265057
G04265051G04265052G04265053G04265054G04265055G04265056G04265057
G04265051G04265052G04265053G04265054G04265055G04265056G04265057
G04265051G04265052G04265053G04265054G04265055G04265056G04265057
G04265051G04265052G04265053G04265054G04265055G04265056G04265057
G04265051G04265052G04265053G04265054G04265055G04265056G04265057
 MB991958
Scan tool (MUT-III sub assembly)

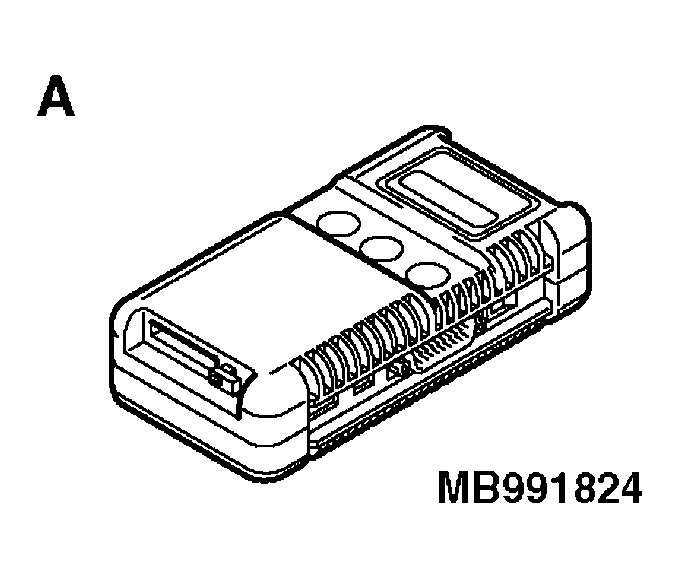

  1. MB991824 Vehicle communication interface (V.C.I.)

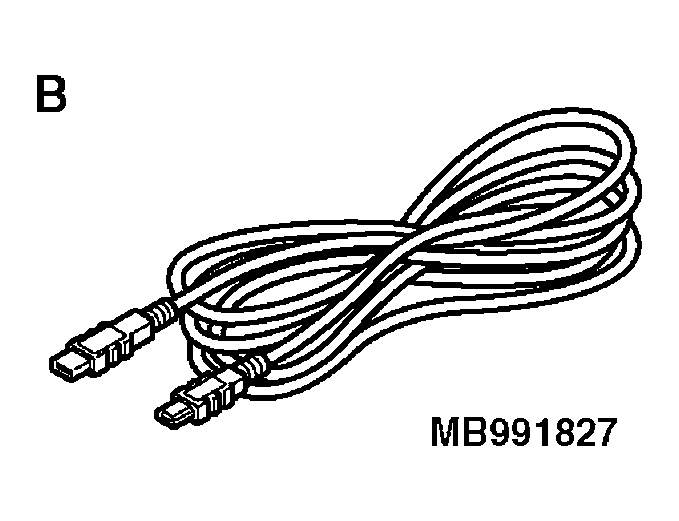

  2. MB991827 MUT-III USB cable
  3. MB991910 MUT-III main harness A (Vehicles with CAN communication system)

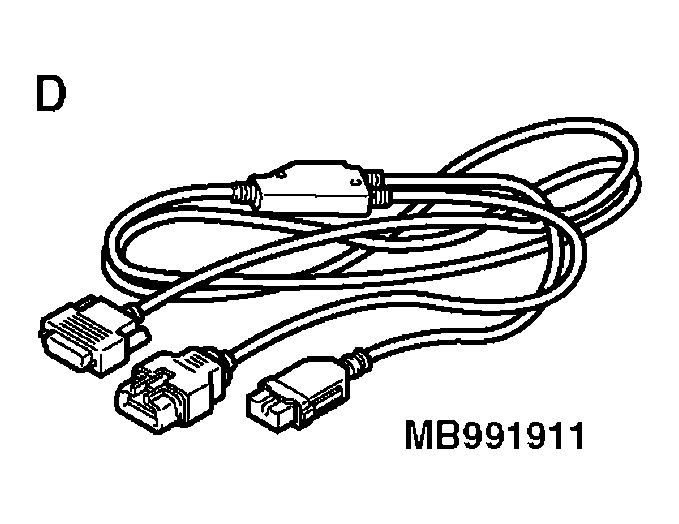

  4. MB991911 MUT-III main harness B (Vehicles without CAN communication system)
  5. MB991914 MUT-III main harness C (for Daimler Chrysler models only)

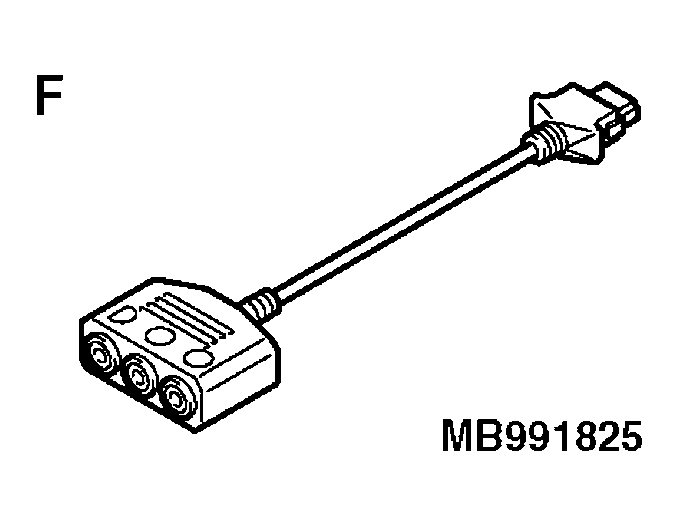

  6. MB991825 MUT-III measurement adapter

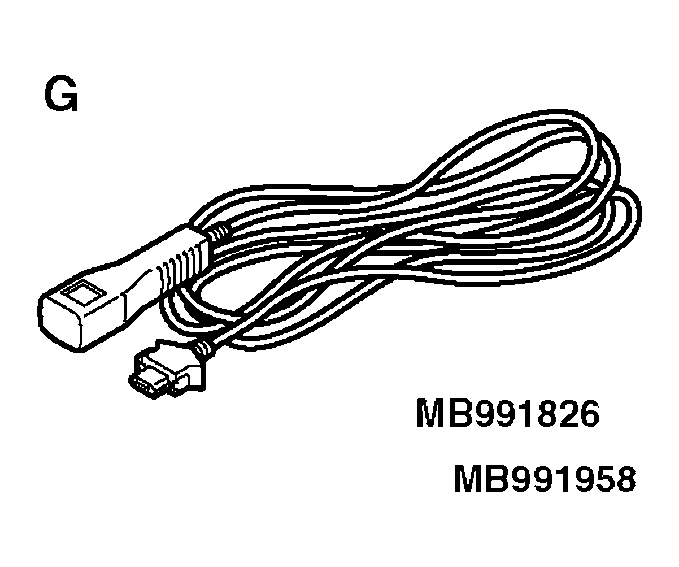

  7. MB991826 MUT-III trigger harness
 MB991824-KIT
NOTE: G: MB991826 MUT-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.
 Checking of engine speed
CAUTION: If you connect MUT-III main harness A to a vehicle without CAN communication system to use the MUT-III, a pulse signal may interfere with the simulated vehicle speed lines, thus causing the MUT-III inoperative. Therefore, use the MUT-III main harness B (MB991911) instead.
G04265058
 MB991519 Generator harness connector MIT530 Micrd 530 charging system tester. Checking of generator ("S" terminal voltage)
