Fuel Pump (Module) Disassembly And Assembly: Notes

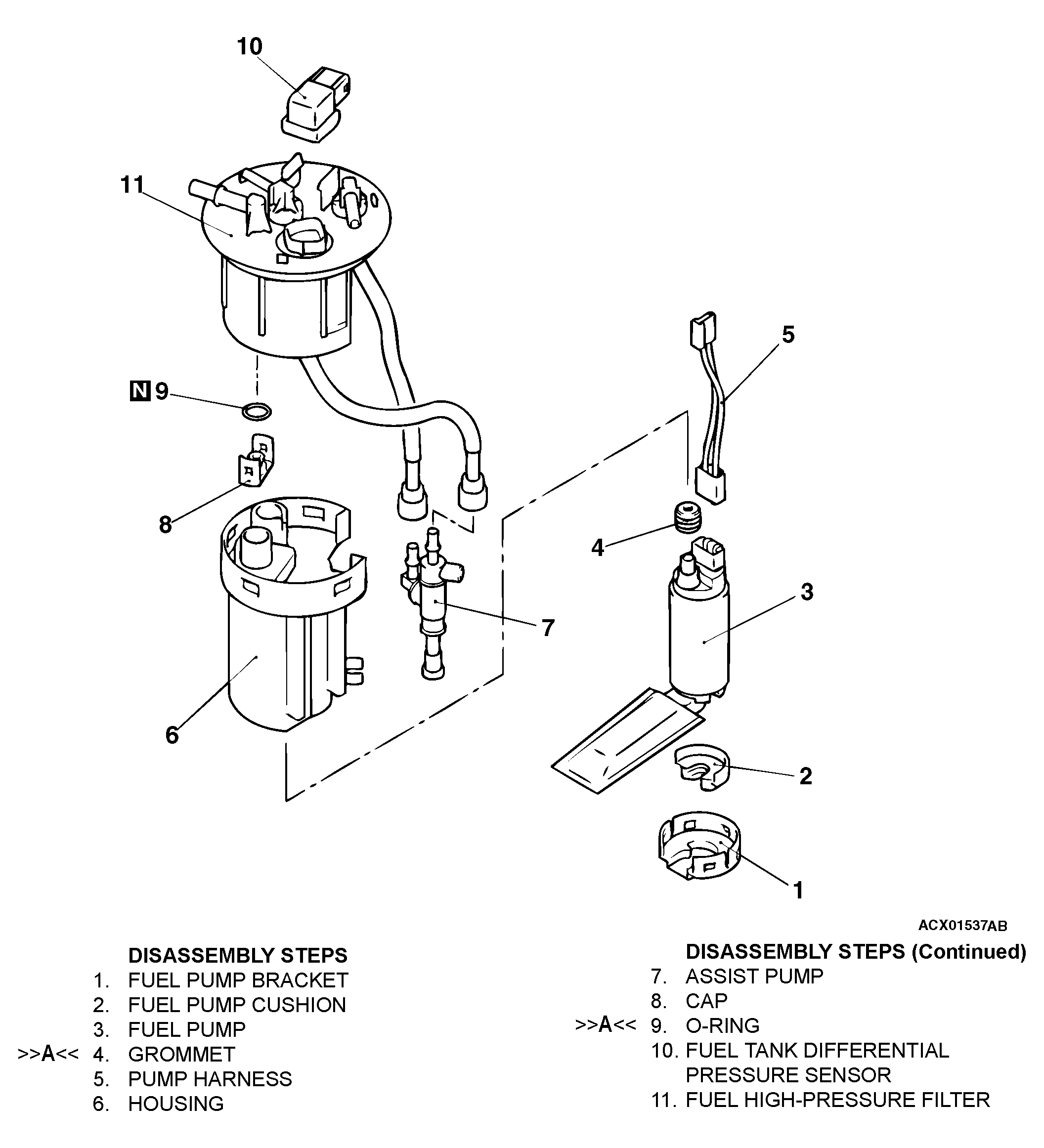

Fig 1: Disassembling/Assembling Fuel Pump
G04265001Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
