Removal And Installation: Notes

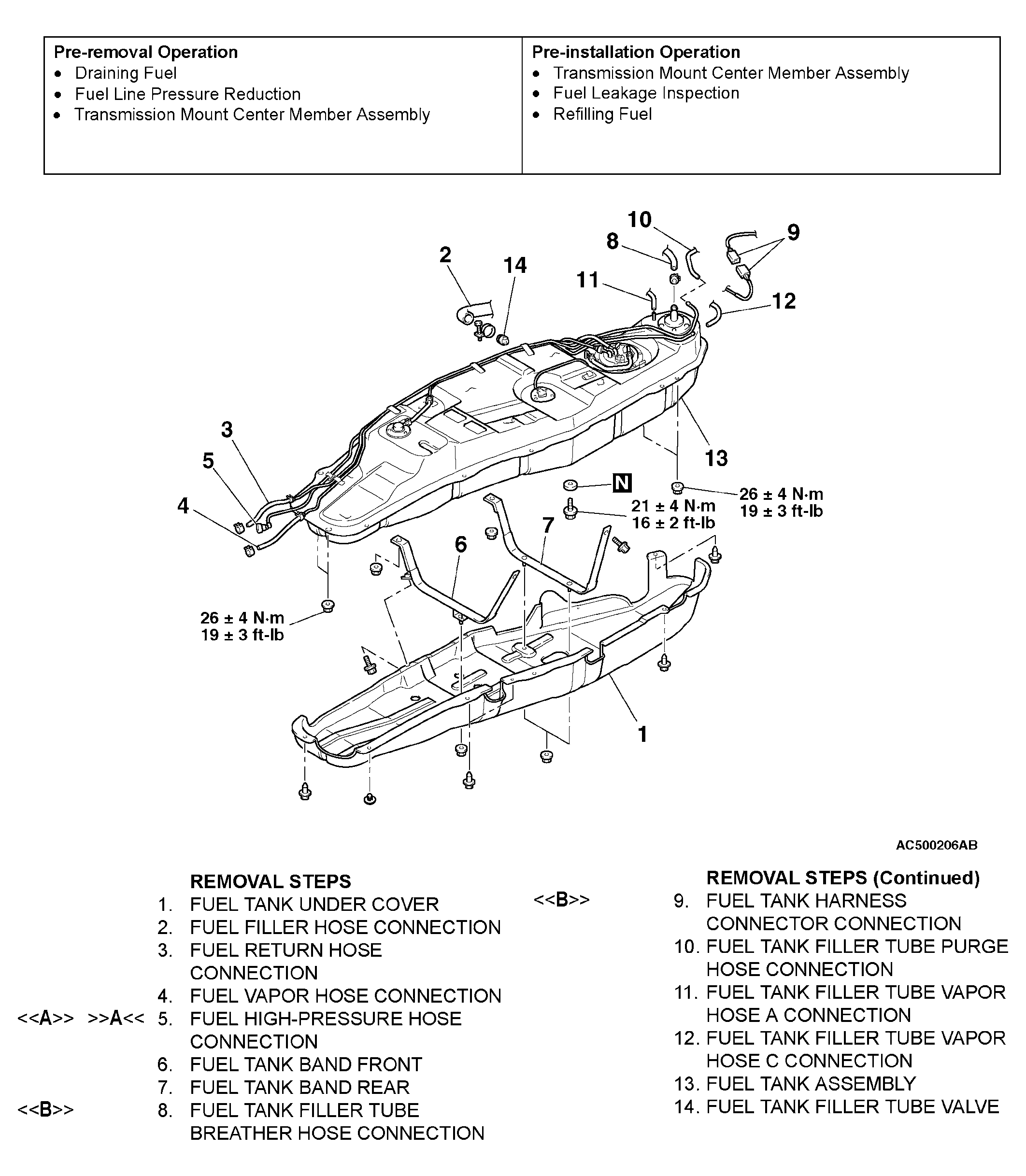

Fig 1: Exploded View Of Fuel Tank (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

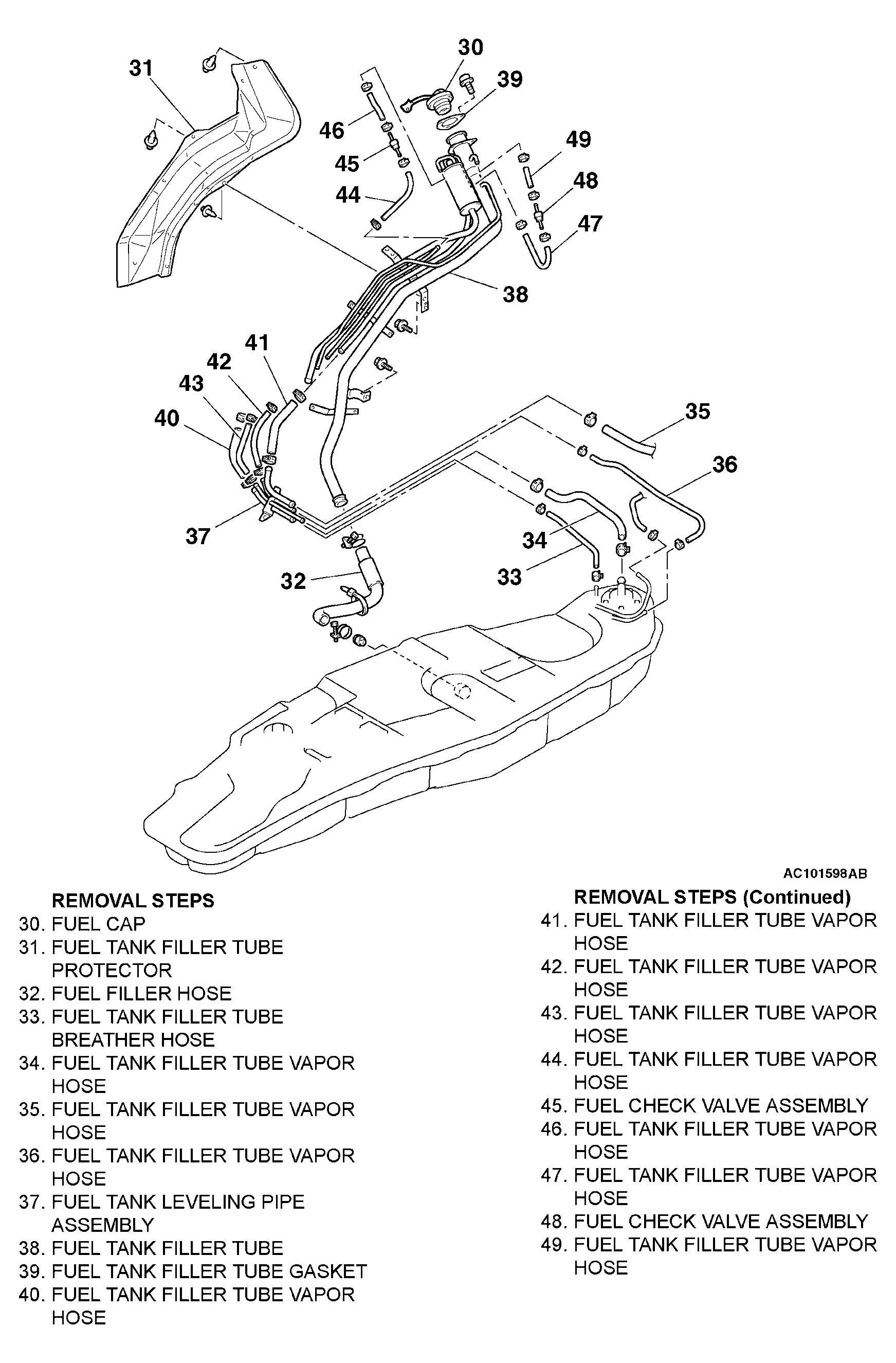

Fig 2: Exploded View Of Fuel Tank (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

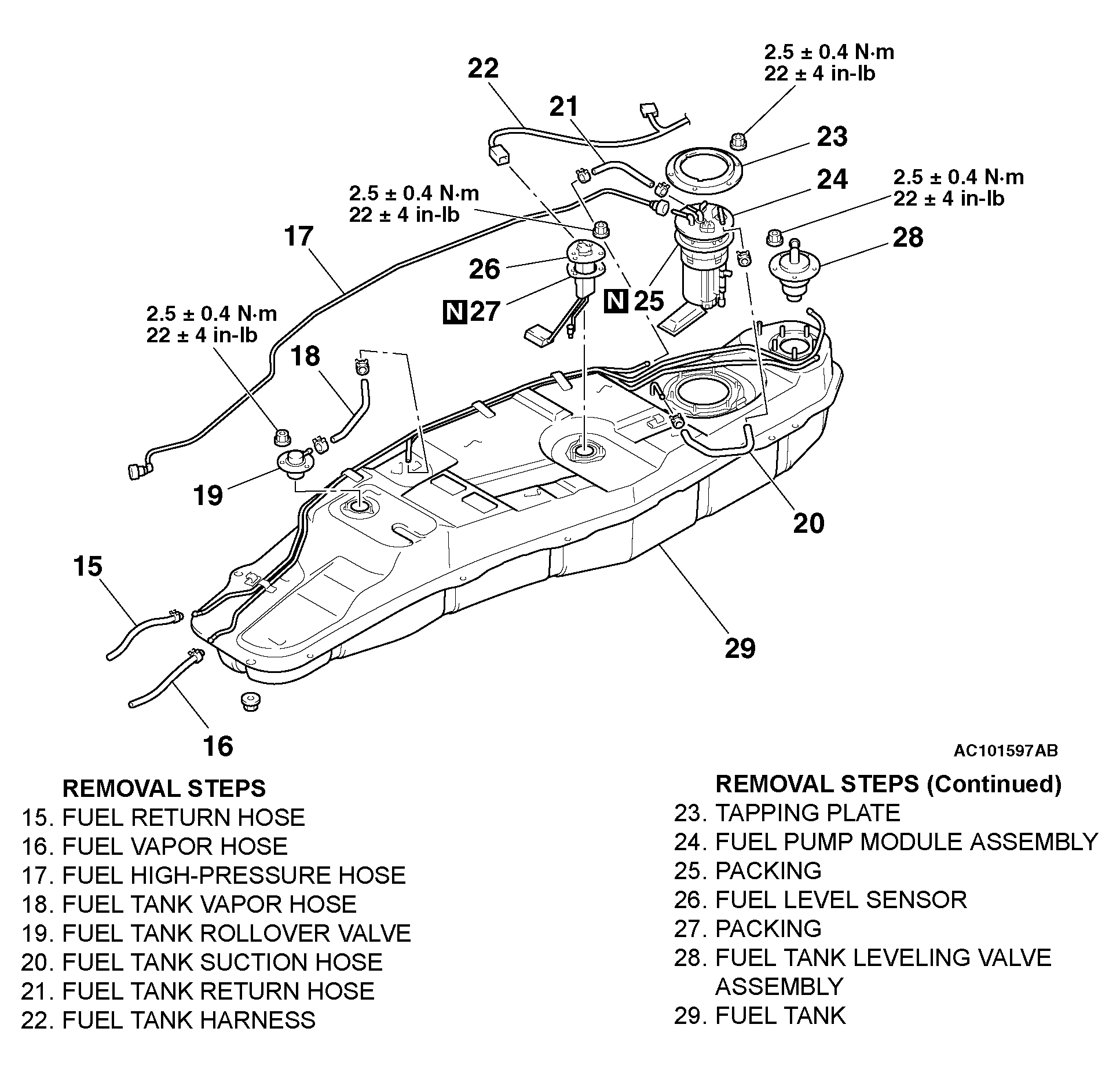

Fig 3: Exploded View Of Fuel Tank (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
