Disassembly And Assembly: Notes

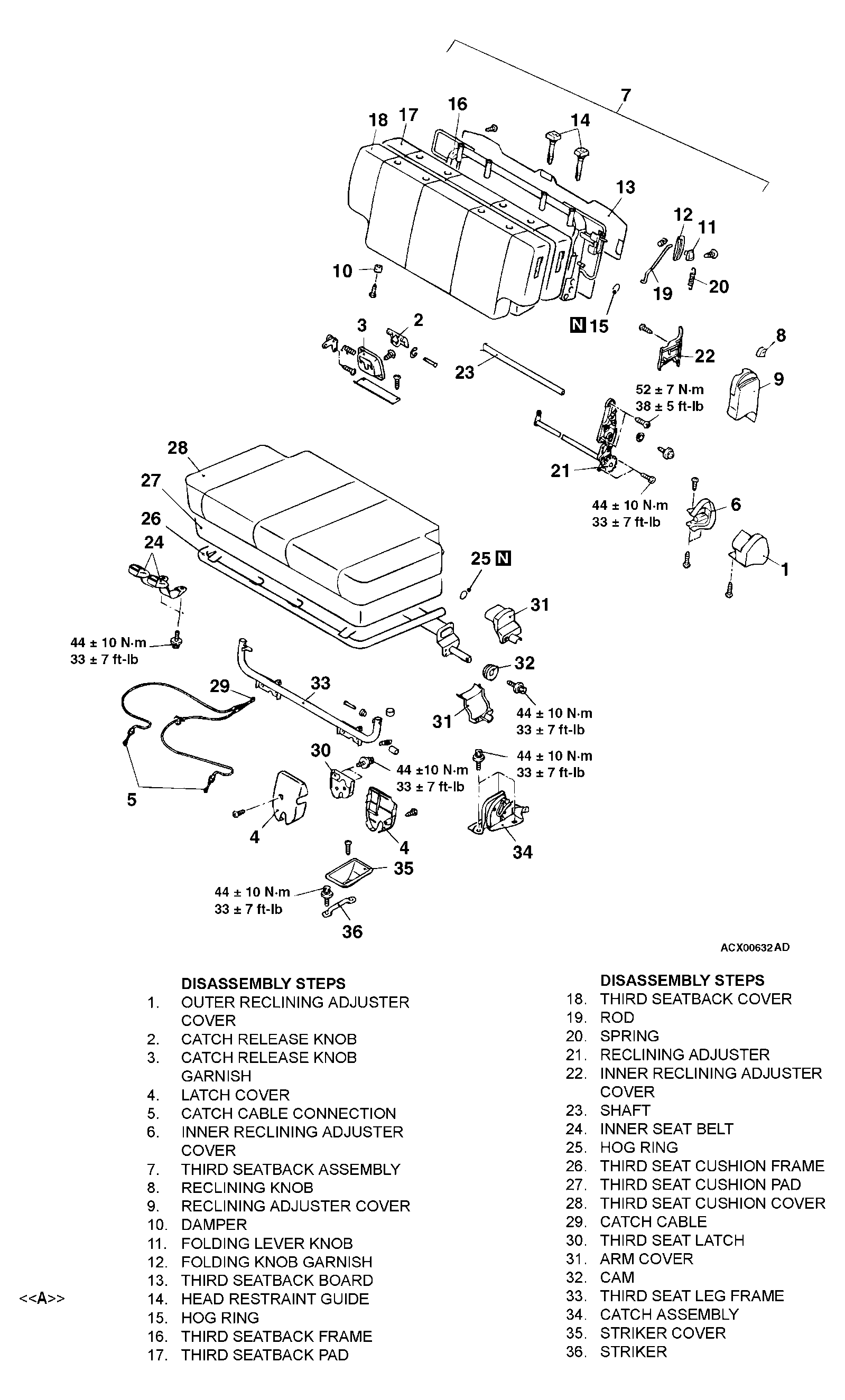

Fig 1: Exploded View Of Third Seat Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
