<< C >> Steering Wheel Air Bag Module Assembly Removal

  1. Remove the air bag module and the horn switch connector through the hole appeared after removing the steering wheel cover.

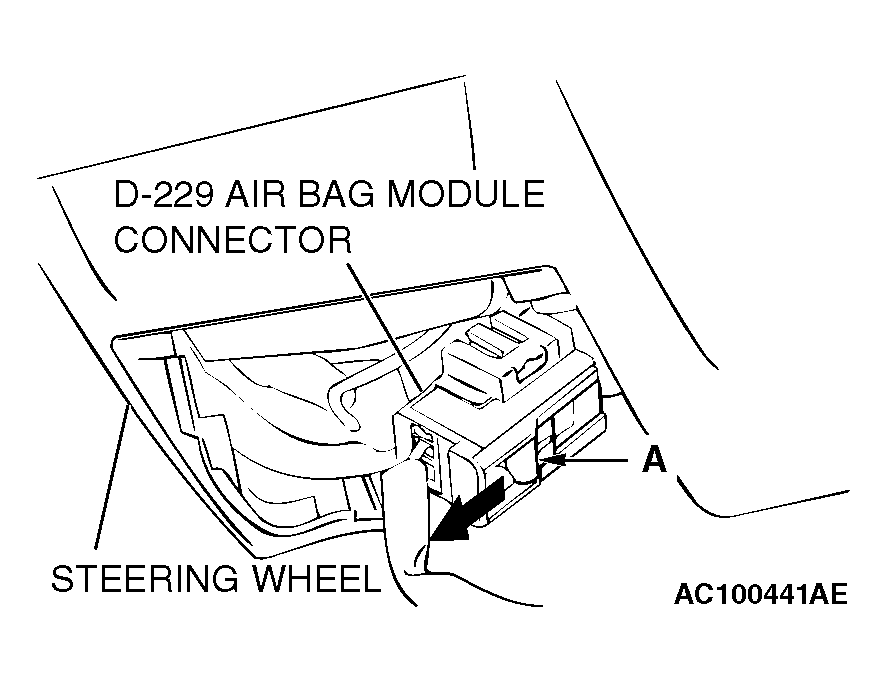

    Fig 1: Removing Air Bag Module And Horn Switch Connector
    G04268260Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Loosen the bolt completely before removing the steering wheel assembly.
    NOTE: We recommend to use the commercial hex bit socket or the hexagonal wrench which effective length of hexagonal portion is 75 mm (3.0 inches) and over and which width across flats is 8 mm (0.3 inch).

    Recommended tool: Hex bit socket 8 mm (0.3 inch). (Type: 3010M-160, 4010M-160) made by KOKEN
