<< D >> Air Bag Module (Driver's Side) Removal

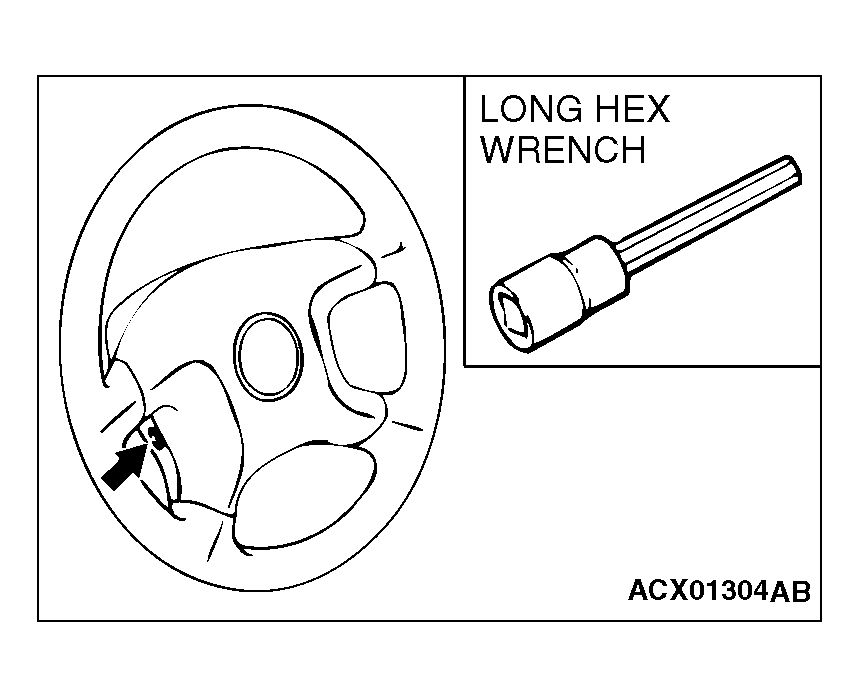

Fig 1: Loosening Bolt And Removing Steering Wheel Assembly
G04268261Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION:
  • Do not diagnose the circuit using an electric circuit tester or disassemble the air bag module.
  • Keep the removed driver's side air bag module at the clean and dry place turning the pad face up.
