<< G >> Air Bag Module (Front Passenger's Side) Removal

CAUTION: Keep the front passenger's side air bag module at the clean and dry place turning the inflating face up.

While pulling the portion shown in the illustration on the instrument panel pad toward you, remove the front passenger's side air bag module to pull it out from down side.

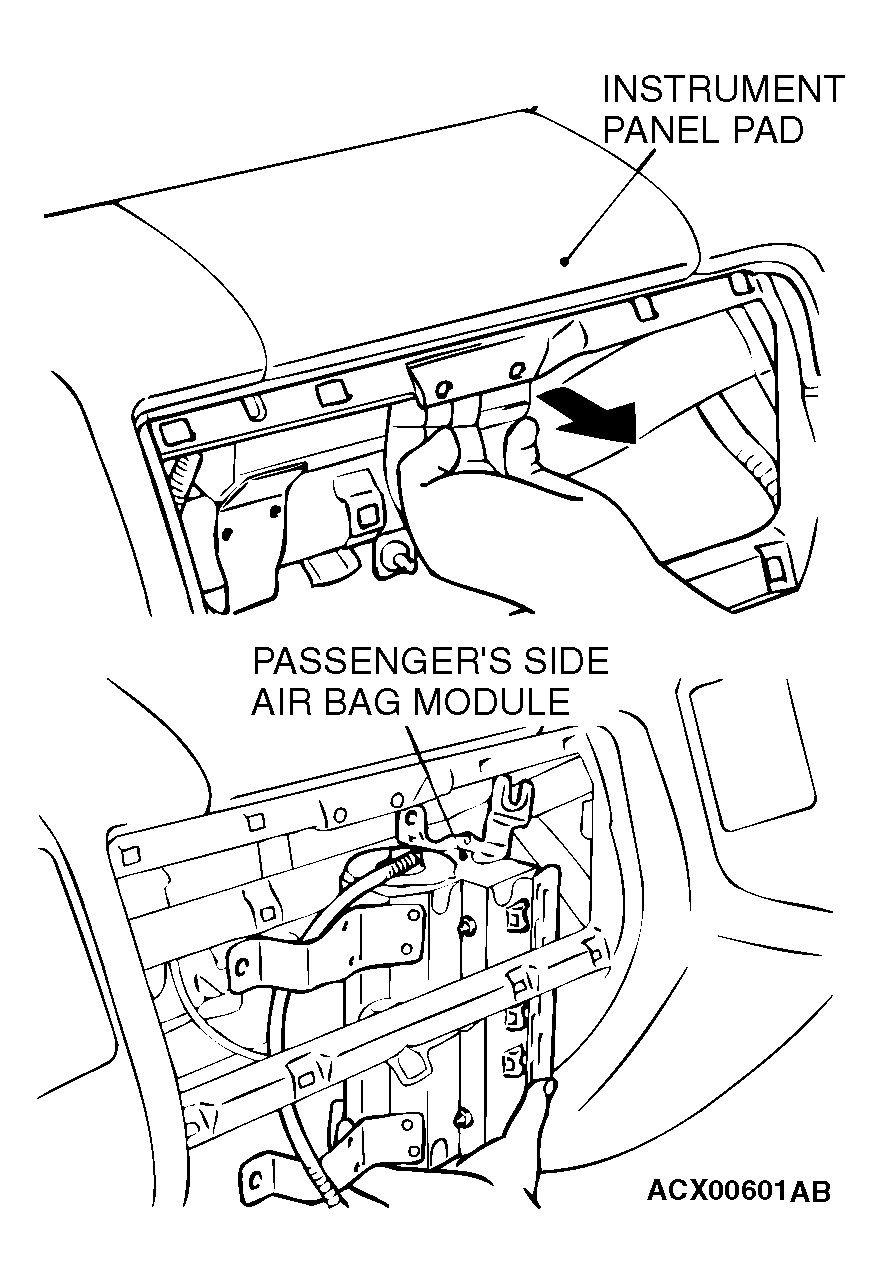

Fig 1: Pulling On Instrument Panel Pad To Remove Air Bag Module
G04268263Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
