On-Board Diagnostic/SRS Warning Light Function

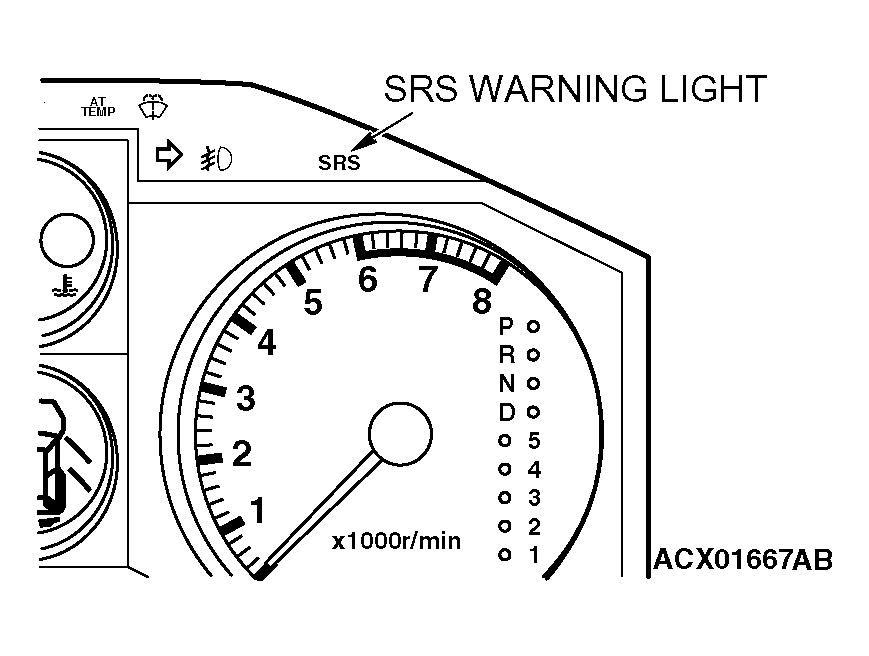

The diagnosis unit monitors the SRS system and stores data concerning any detected faults in the system. When the ignition switch is in "ON" or "START" position, the SRS warning light should illuminate for about seven seconds and then turn "OFF." That indicates that the SRS system is in operational order. If a vehicle's SRS warning light is in any of the following conditions, the SRS system must be inspected, diagnosed and serviced in accordance with this service information.
- The SRS warning light does not illuminate as described above.
- The SRS warning light stays on for more than seven seconds.
- The SRS warning light illuminates while driving.
