Clock Spring

  1. Check the clock spring connectors and protective tube for damage, and the terminals for deformation.
  2. Visually check the case for damage.

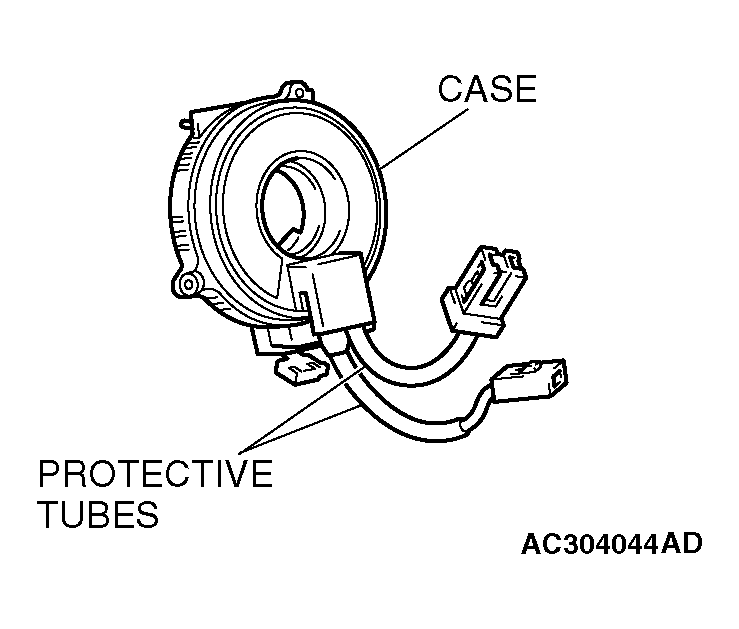

    Fig 1: Checking Case For Damage
    G04268244Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
