Front Seatback Assembly (Side-Airbag Module)

  1. Check that there is no abnormality in the side-airbag module deployment section.
  2. Check that there is no connector damage, bent terminals or clamping of the harness.

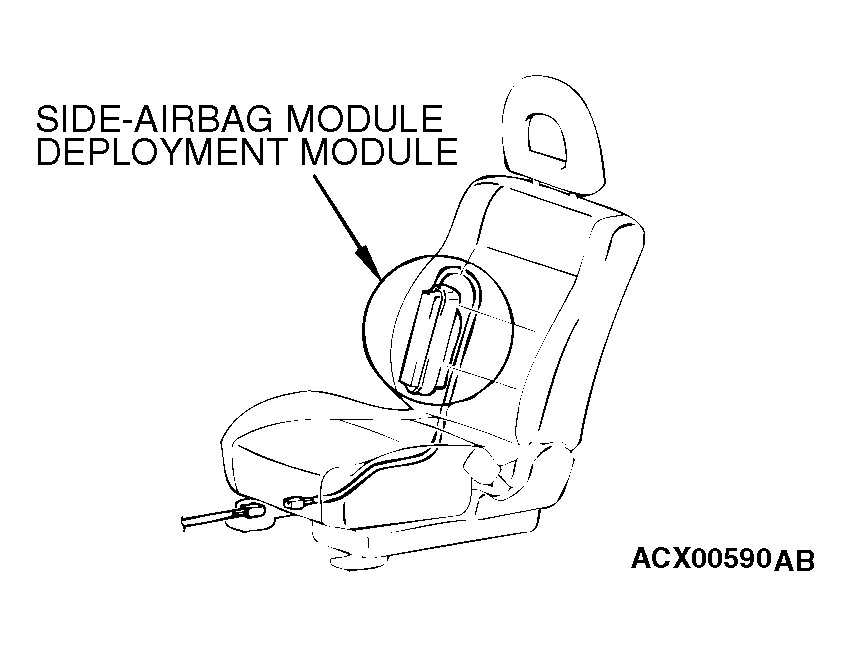

    Fig 1: Checking Abnormality In Side-Airbag Module Deployment Section
    G04268243Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
