DTC 43: SRS Warning Light Drive Circuit System Fault 1 (Light does not Switch Off).: Notes

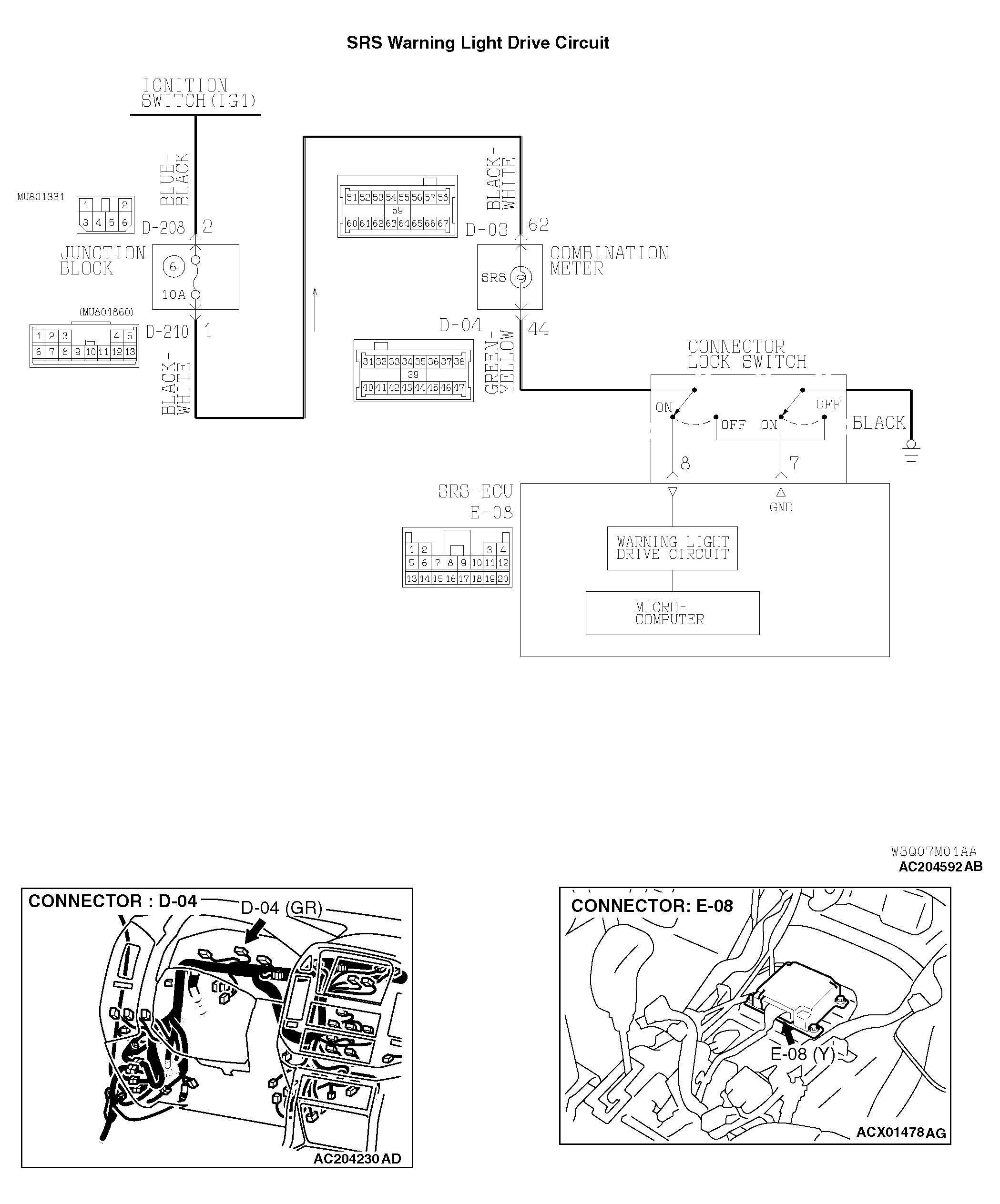

Fig 1: SRS Warning Light Drive - Circuit Diagram
G04268042Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
