DTC 62: Driver's Air Bag Module (Squib) System Fault for Ground Circuit (Short Circuited to ground): Notes

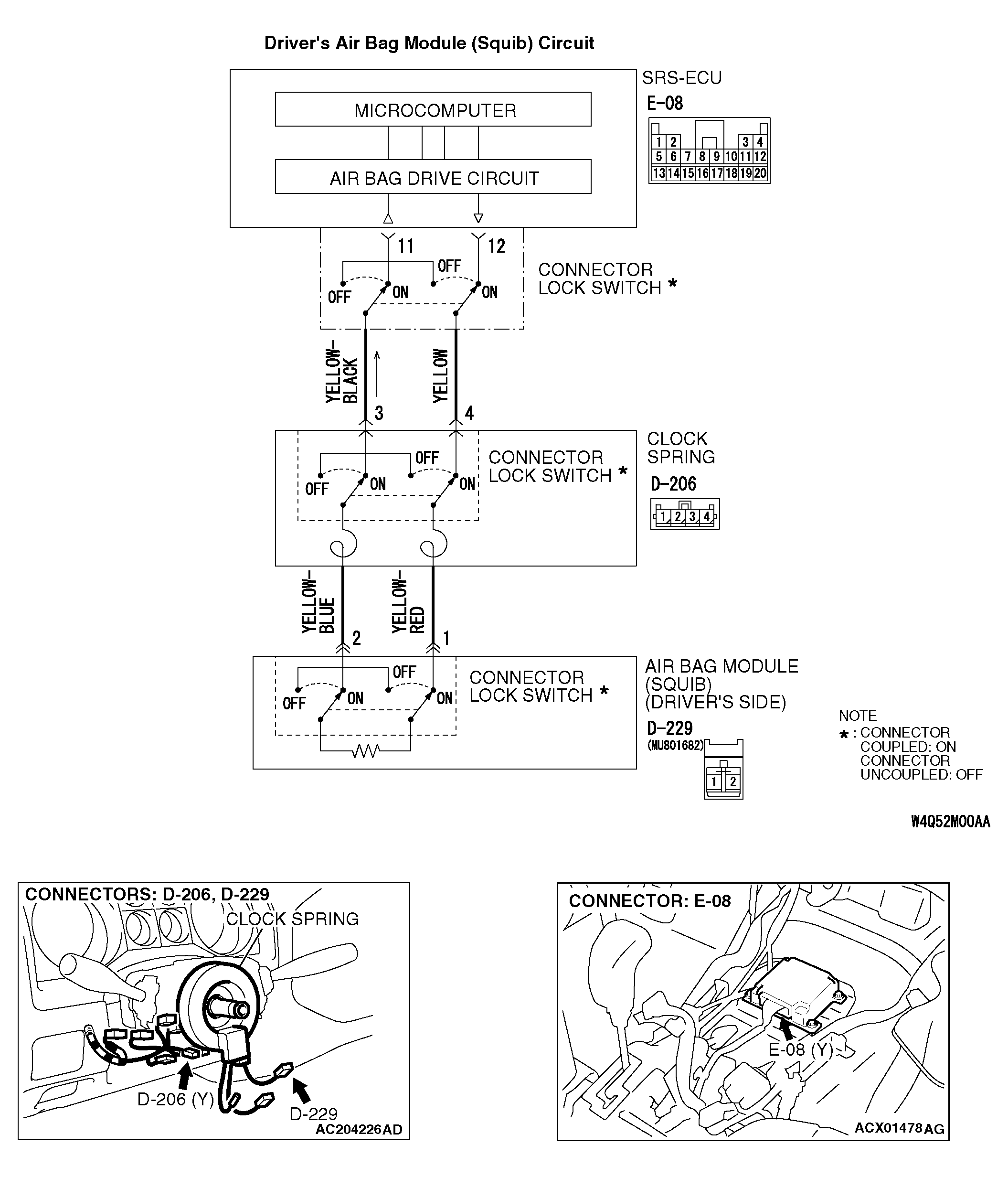

Fig 1: Driver's Air Bag Module (Squib) - Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
