DTC 81: Left Hand Side-airbag Module (Squib) System Fault 1 (Short Circuit between Terminals of the Squib Circuit): Notes

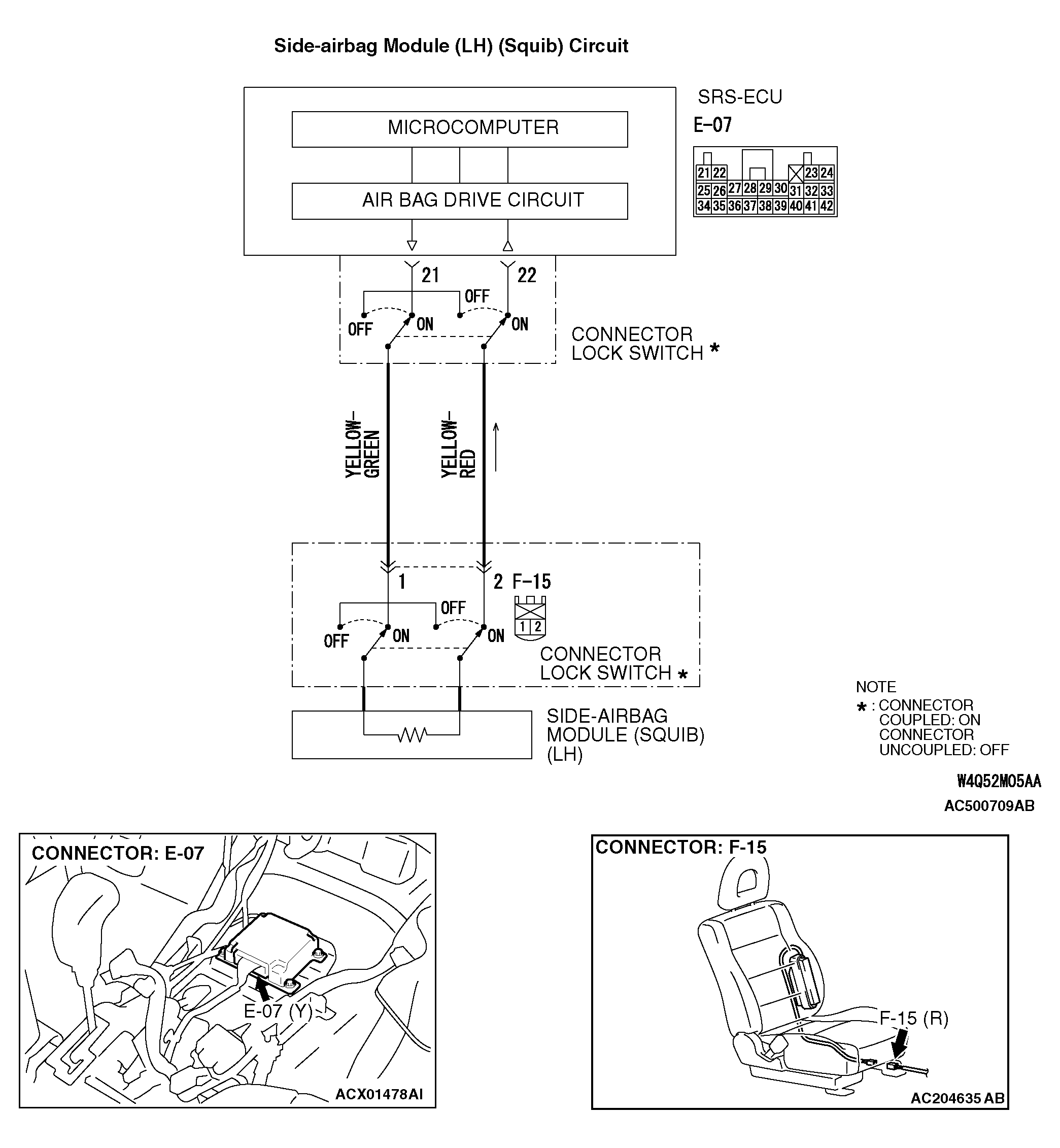

Fig 1: Side-Airbag Module (LH) (Squib) - Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
