>> C << Rack Assembly Installation

CAUTION: Do not plug the vent hole in the rack with grease.
  1. Apply a coating of multipurpose grease to the rack assembly teeth face.
    Fig 1: Applying Multipurpose Grease To Rack Assembly Teeth Face
    G04267640Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Cover rack serrations with special tool MB991213.
  3. Apply GENUINE MITSUBISHI POWER STEERING FLUID to special tool MB991213.

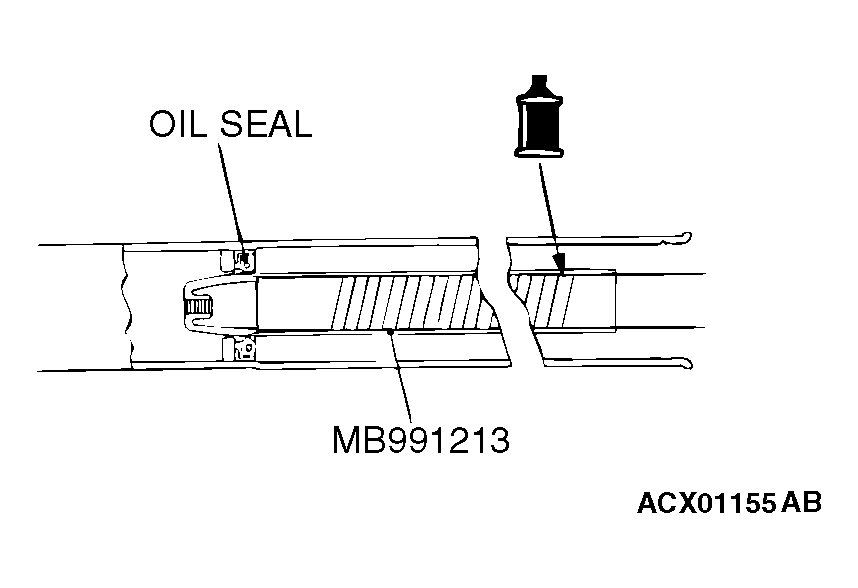

    Fig 2: Applying Mitsubishi Power Steering Fluid To Special Tool
    G04267641Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CAUTION: When inserting the rack, carefully push in while aligning the center of the oil seal and the tip of special tool MB991213 so that the oil seal retainer spring does not fall out.
  4. Align the center of the oil seal with the rack to prevent the retainer spring from slipping. Slowly insert the rack from power cylinder side.
