Removal And Installation: Notes

WARNING: Before removing the steering gear box, refer to SERVICE PRECAUTIONS and AIR BAG MODULES AND CLOCK SPRING . Center the front wheels and remove the ignition key. Failure to do so may damage the SRS clock spring and render the SRS system inoperative, risking serious injury.

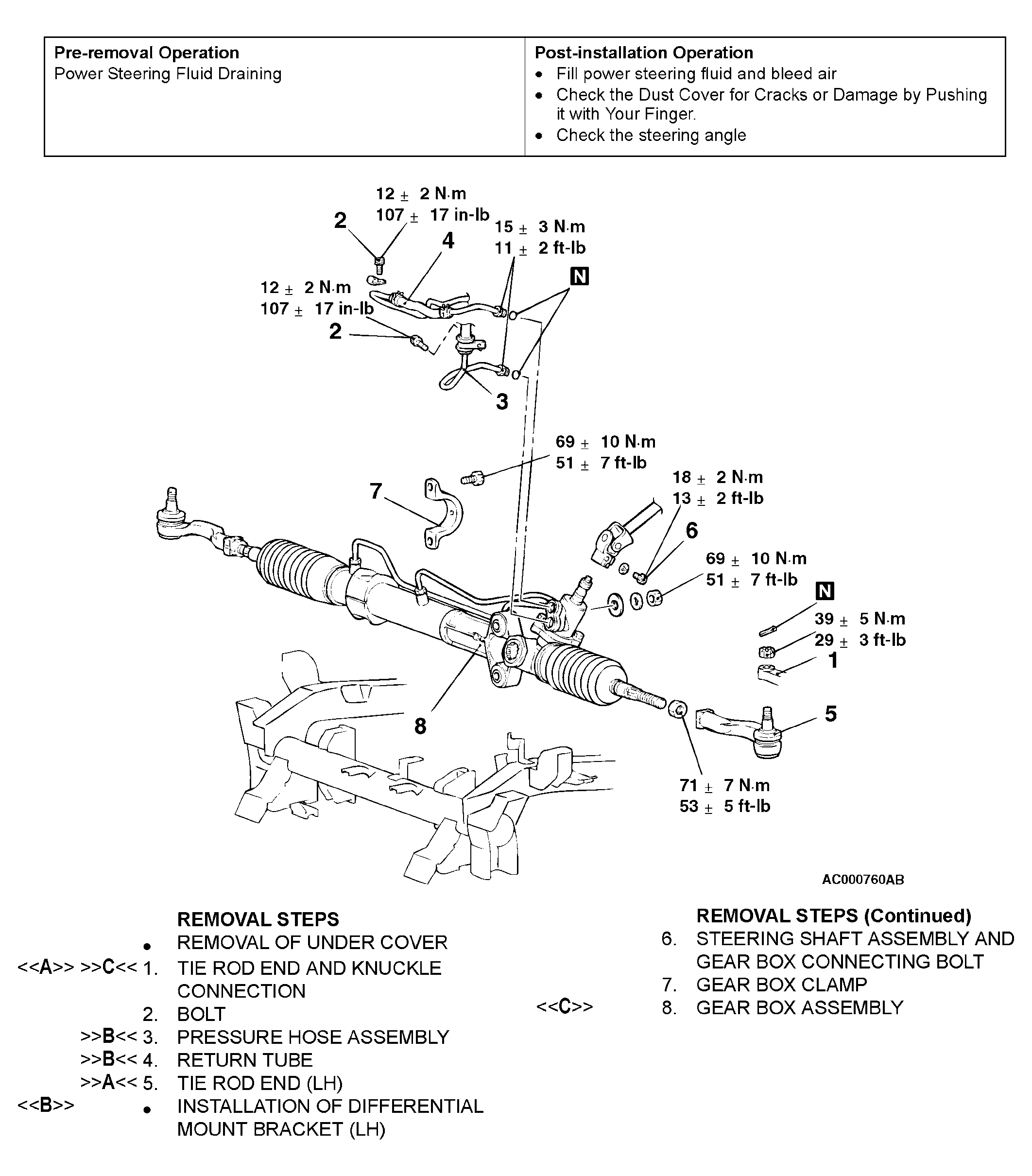

Fig 1: Removing And Installing Power Steering Gear Box Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

MB991897: Ball Joint Remover
