Special Tools
SPECIAL TOOLS CHART
| TOOL | TOOL NUMBER AND NAME | SUPERSESSION | APPLICATION |
|---|---|---|---|

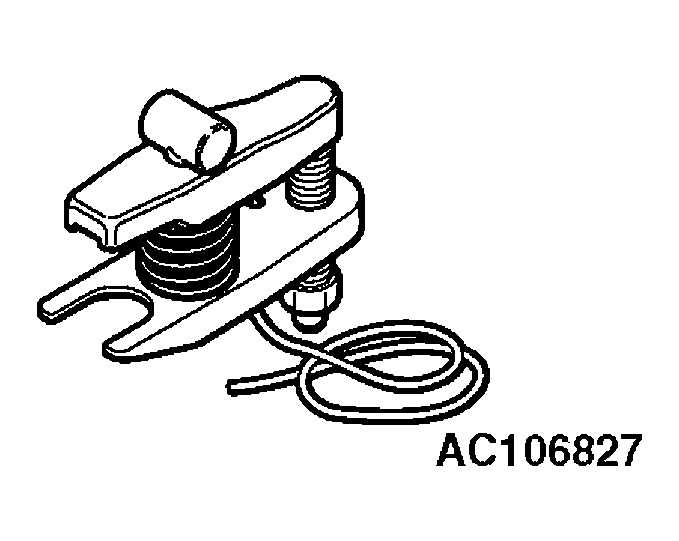

| MB991897 Ball joint remover |
MB991113-01, MB990635-01 or General service tool | Tie rod end disconnection
NOTE:
Steering linkage puller (MB990635 or MB991113) is also available to disconnect ball joint.
|
|

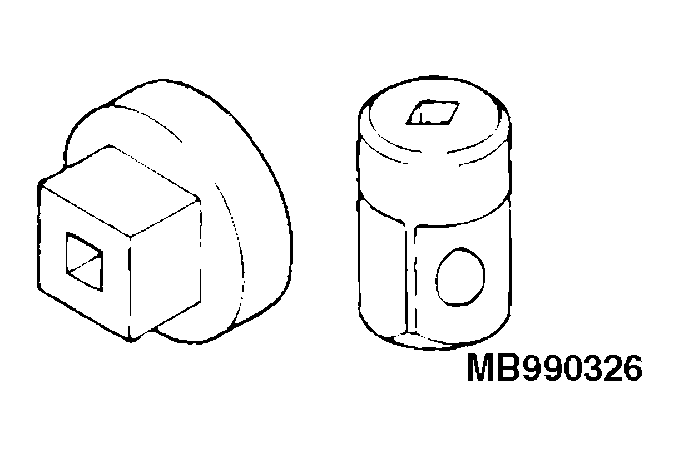

| MB990326 Preload socket |
General service tool | Tie rod end ball joint breakaway torque check | |

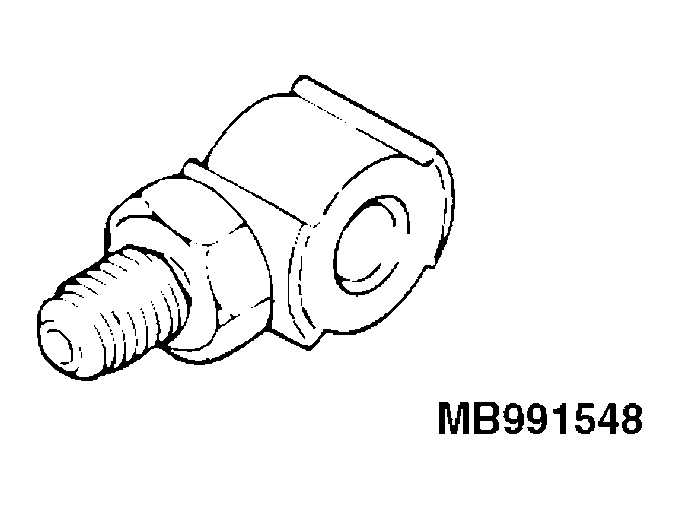

| MB991548 Power steering oil pressure gauge adapter (Pump side) |
MB991548-01 | Oil pump pressure test | |
| MB991549 Power steering oil pressure gauge adapter (Hose side) |
MB991549-01 | ||

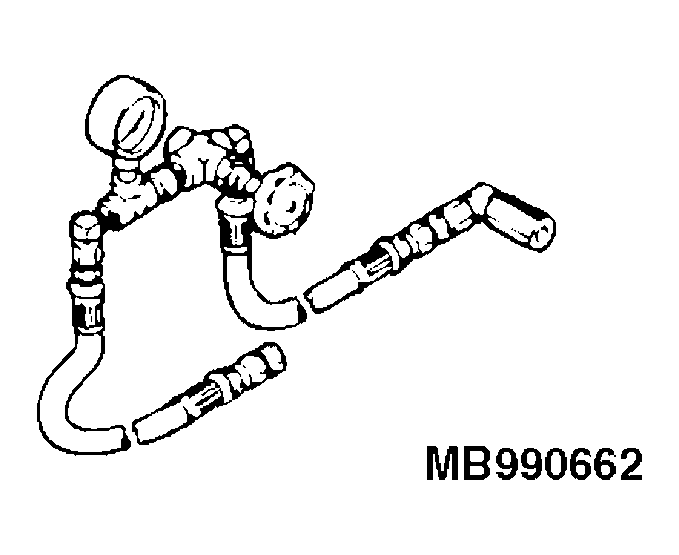

| MB990662 Oil pressure gauge assembly |
MB990662-01 | ||

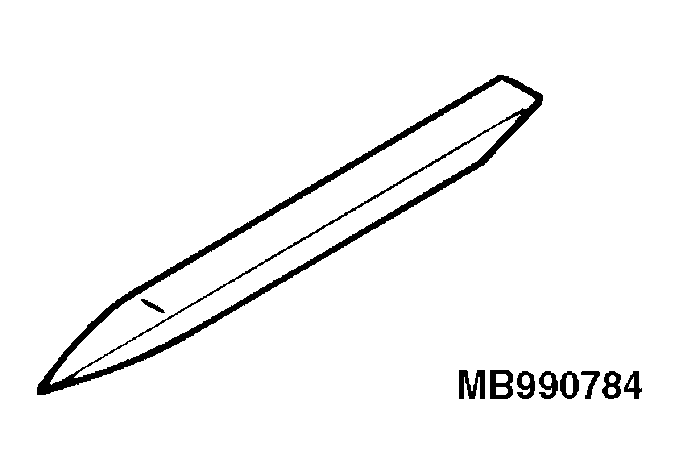

| MB990784 Ornament remover |
General service tool | Removal of cover | |

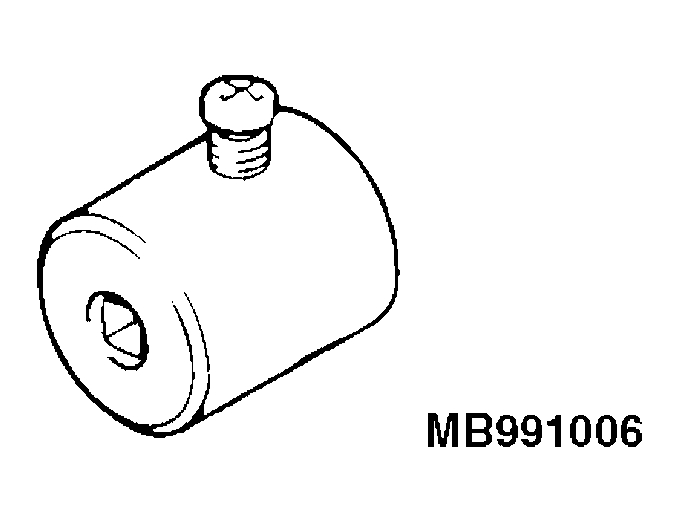

| MB991006 Preload socket |
MB991006-01 | Gear box total pinion torque check | |

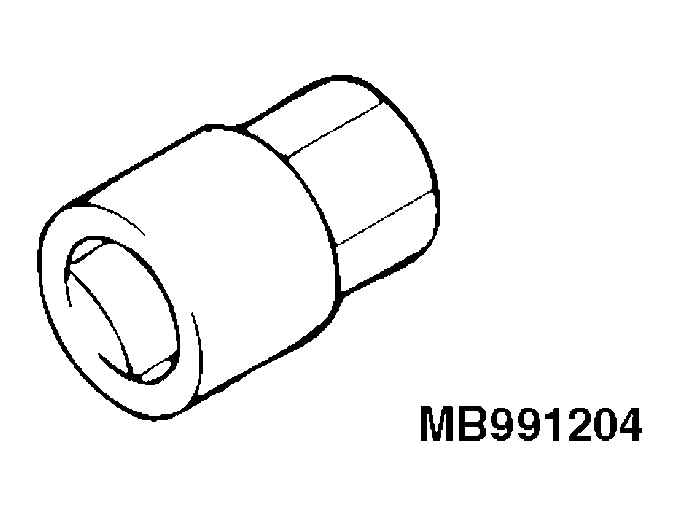

| MB991204 Torque wrench socket |
General service tool |
|
|

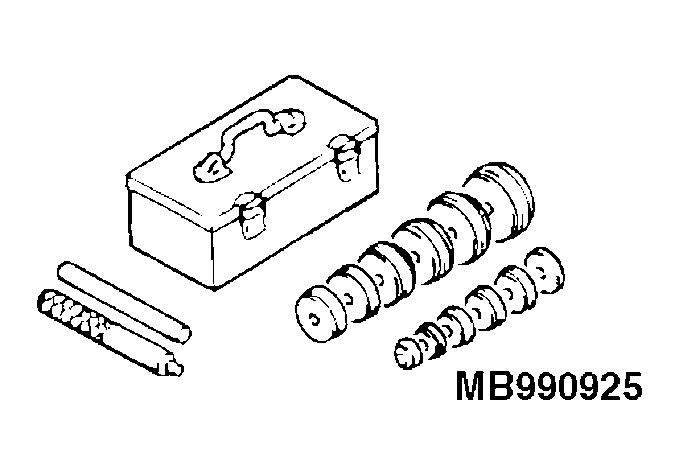

| MB990925 Bearing and oil seal installer set |
MB990925-01 or general service tool |
|
|

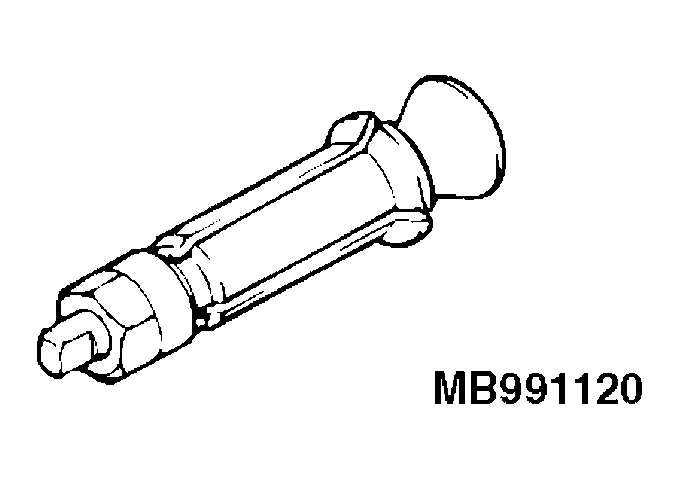

| MB991120 Needle bearing puller |
Tool not available | Needle roller bearing removal | |

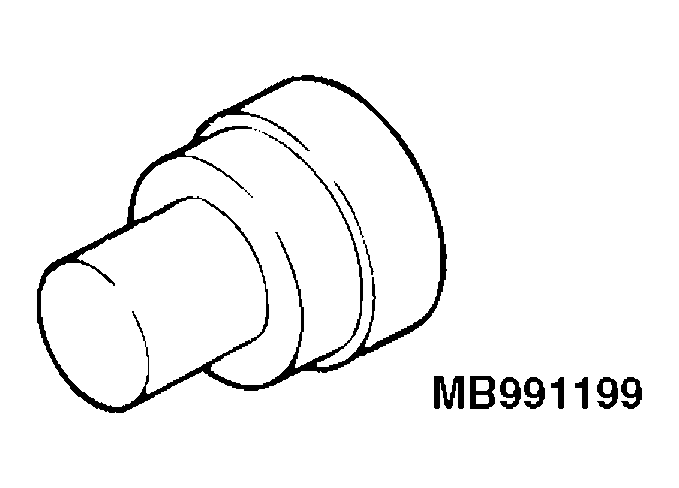

| MB991199 Oil seal installer |
General service tool | Oil seal installation | |

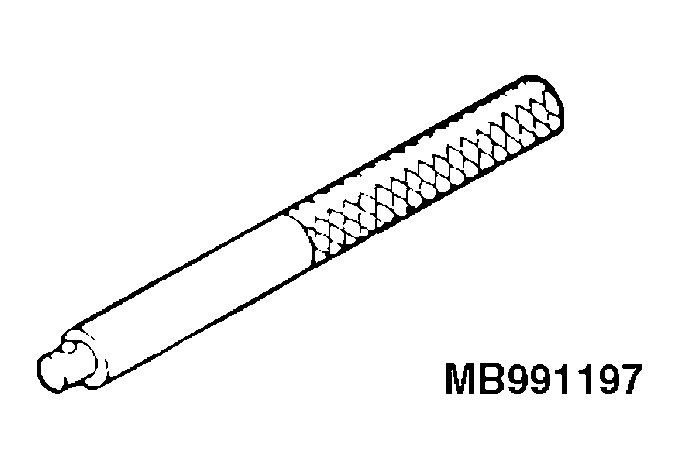

| MB991197 Bar (long type) |
General service tool | ||

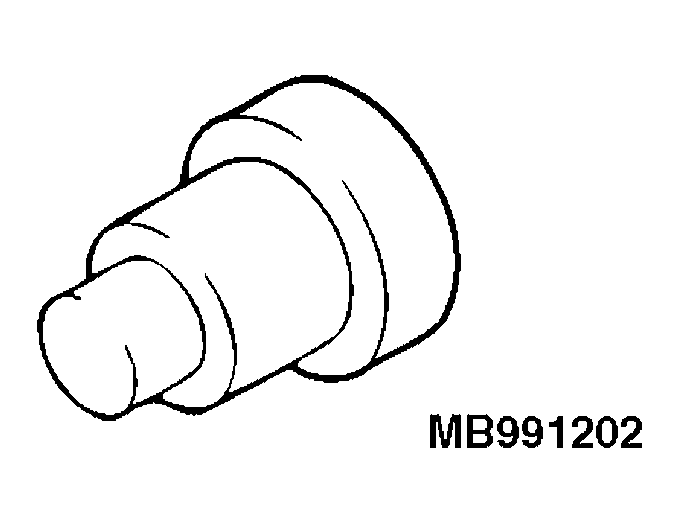

| MB991202 Oil seal and bearing installer |
General service tool | Needle roller bearing installation | |
| MB991213 Rack installer |
General service tool | Rack installation | |

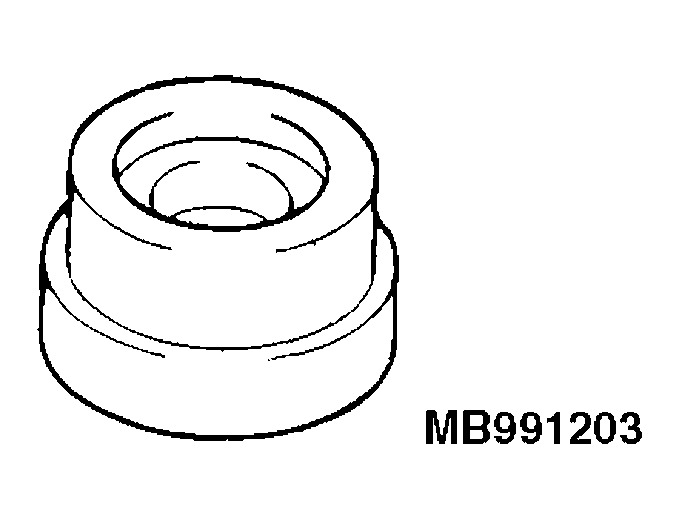

| MB991203 Oil seal and bearing installer |
Tool not available | Oil seal and bearing installation | |

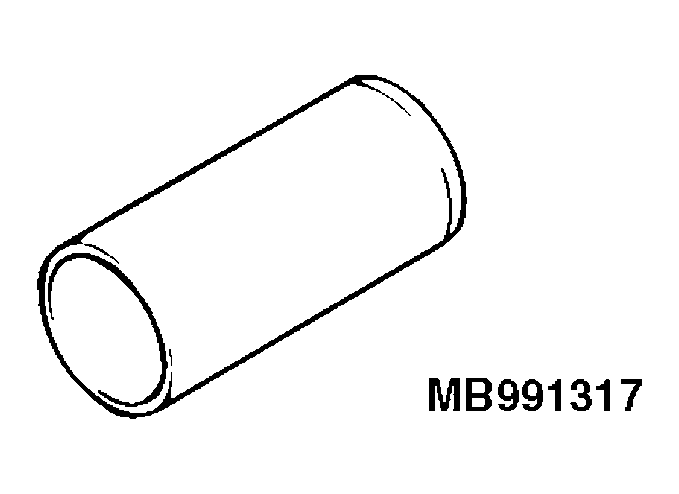

| MB991317 Seal ring installer |
Tool not available | Seal ring installation | |

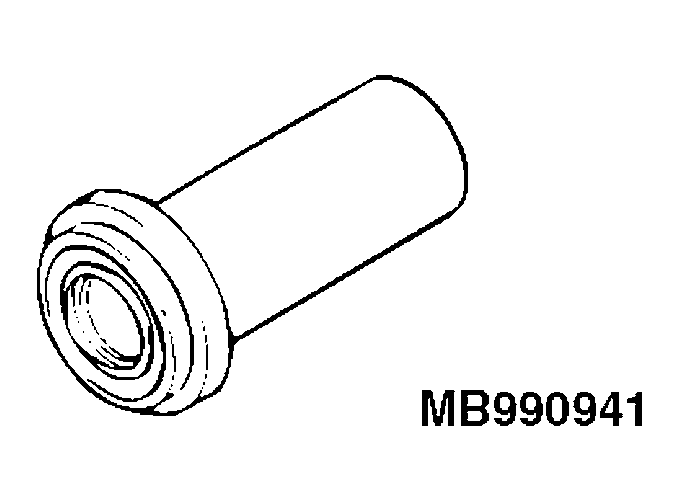

| MB990941 Torque tube bearing installer |
General service tool | Oil seal installation | |

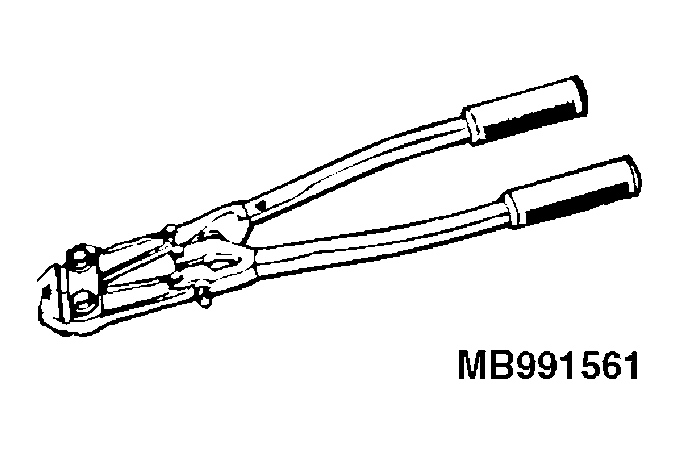

| MB991561 Boot band crimping tool |
- | Bellows band installation |
