<< A >> Rack Support Cover Removal

Using special tool MB991204, remove the rack support cover from the gear box.

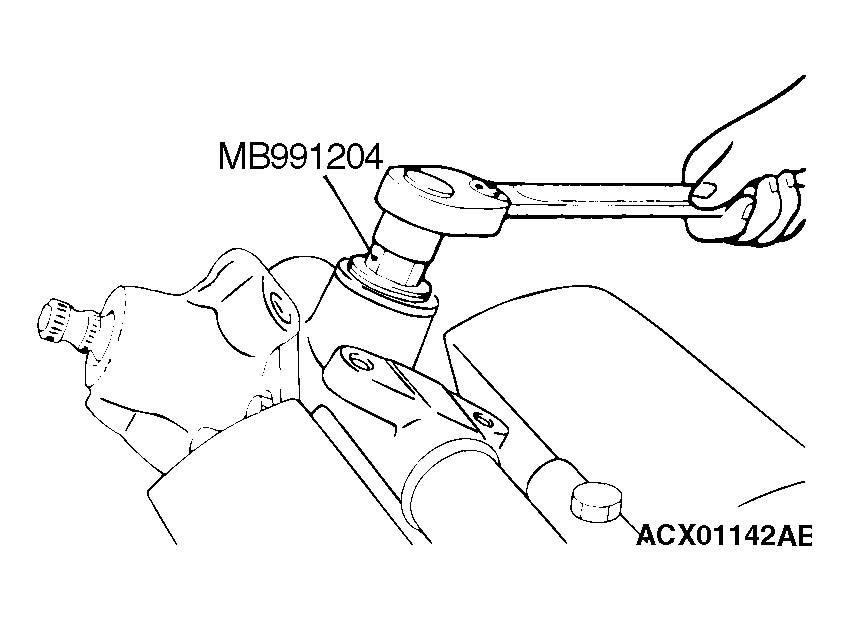

Fig 1: Removing Rack Support Cover From Gear Box Using Special Tool
G04267628Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
