Lubrication And Sealing Points

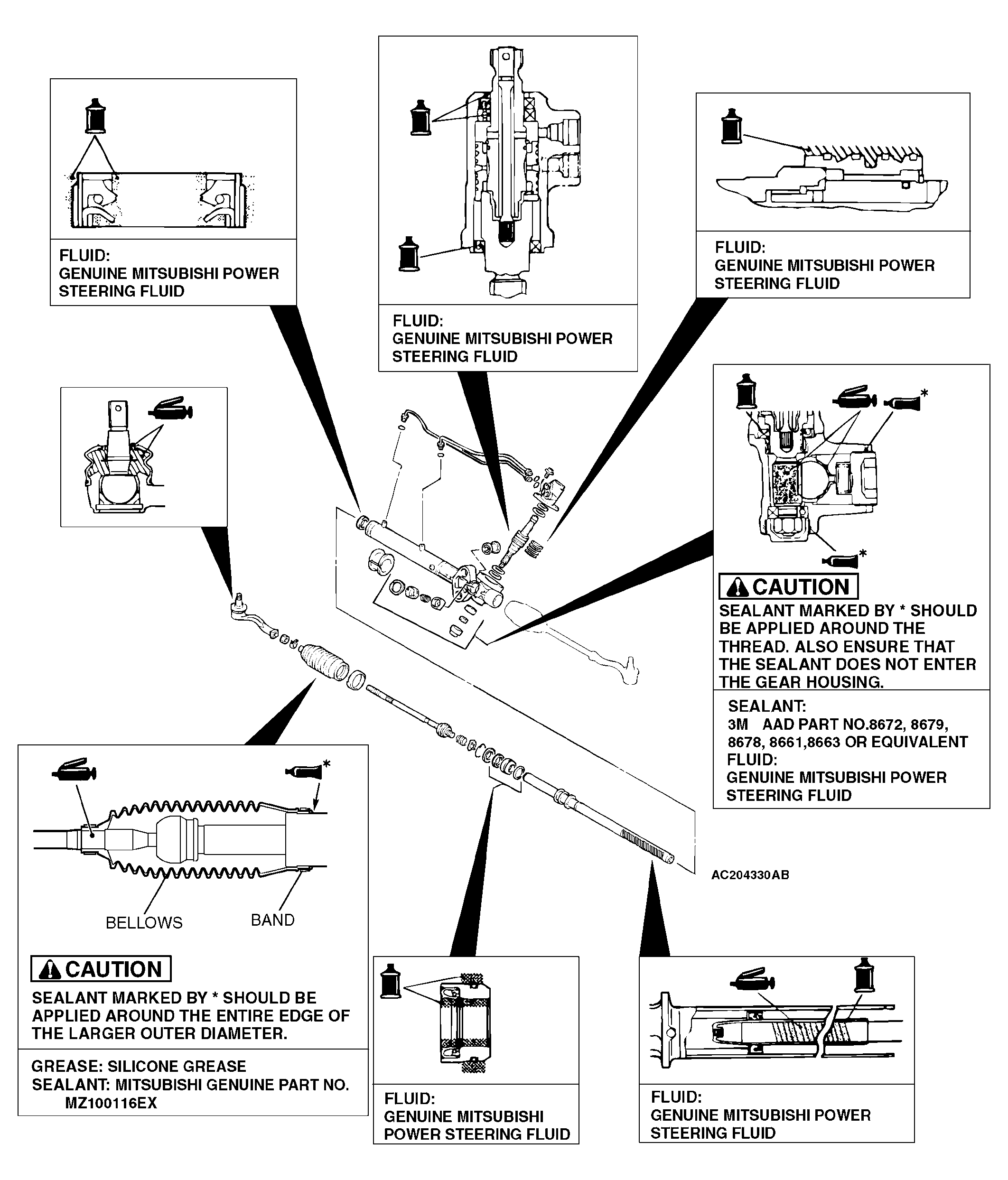

Fig 1: Identifying Lubrication And Sealing Points Locations
G04267627Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
