Removal And Installation: Notes

WARNING:

Before removing the air bag module, refer to SERVICE PRECAUTIONS and AIR BAG MODULE AND CLOCK SPRING .
When removing and installing the steering wheel, do not let it bump against the air bag module.

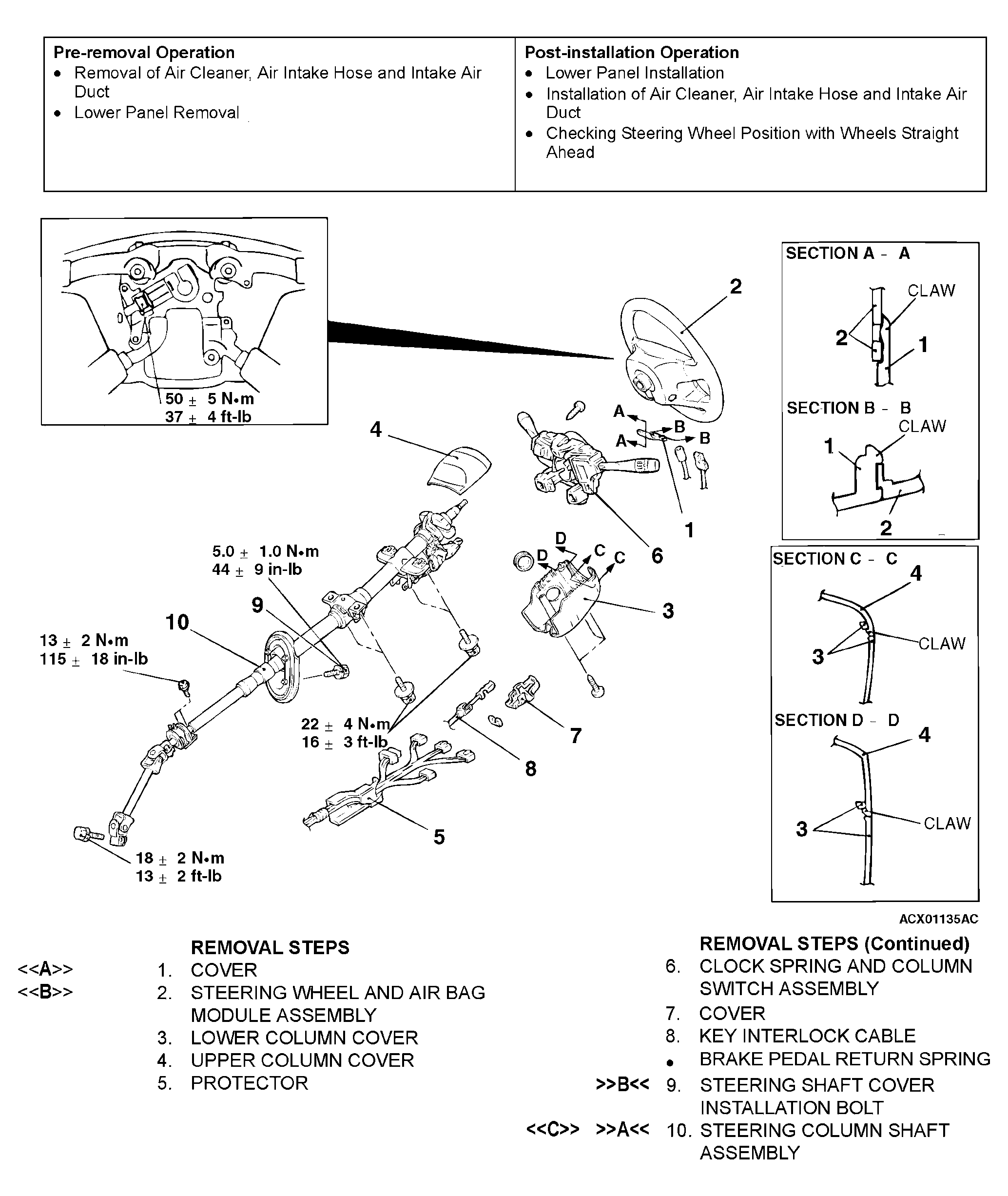

Fig 1: Removing And Installing Steering Wheel And Shaft Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

NOTE: When the air bag module assembly must be removed, refer to AIR BAG MODULES AND CLOCK SPRING .
