<< B >> Steering Wheel And Air Bag Module Assembly Removal

By sliding section A of the clock spring connector shown in the illustration in the arrow direction, disconnect the connector.

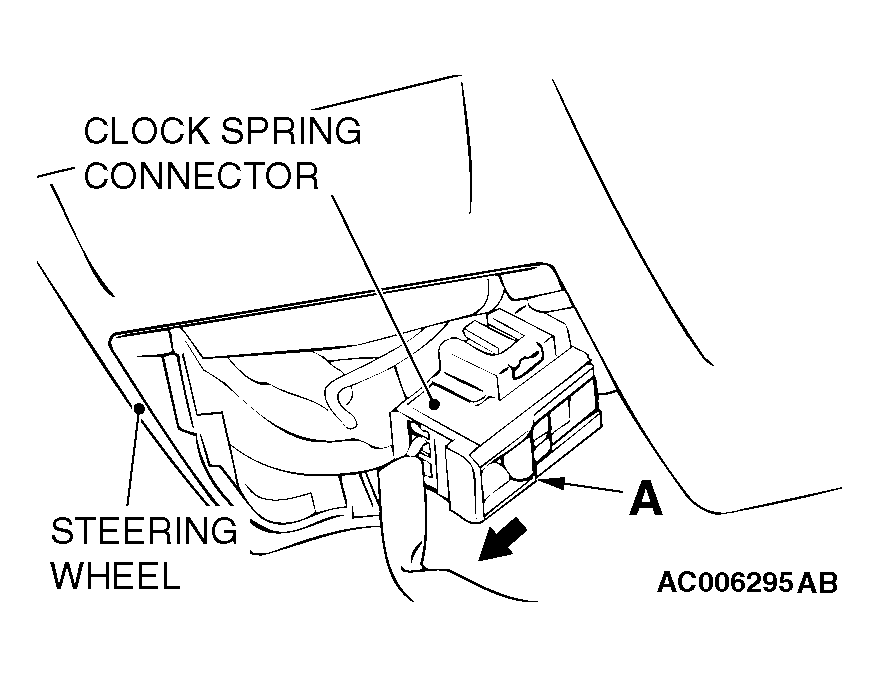

Fig 1: Identifying Clock Spring Connector Disconnecting Procedure
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Loosen the bolt completely. Then remove the steering wheel and air bag module assembly.
NOTE: Use a hexagonal bit socket or a hexagonal wrench having an effective length of 75 mm (0.29 inch) or more in the hexagonal section and the diameter of 8 mm (0.031 inch) or more.

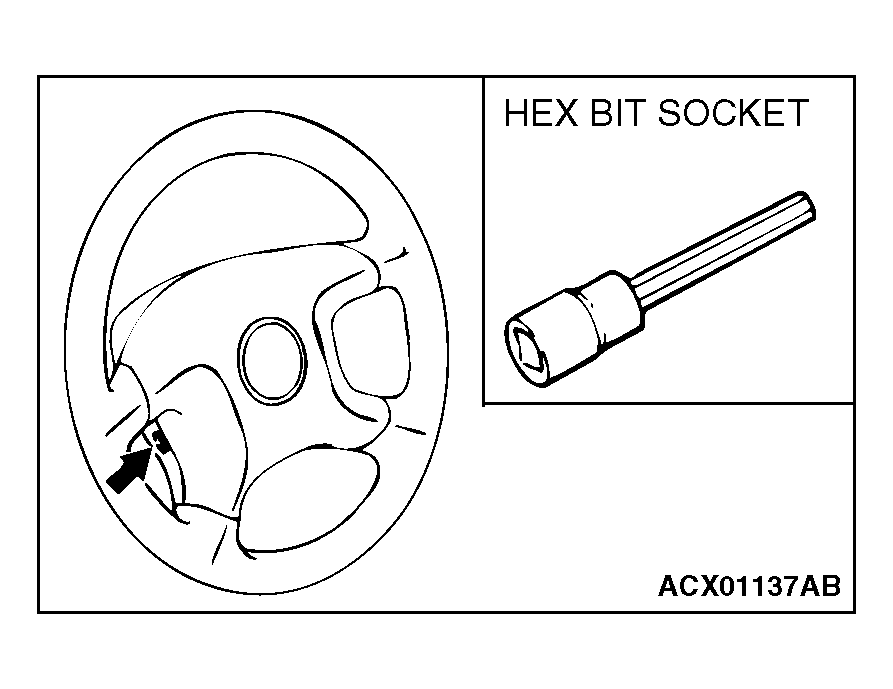

Fig 2: Removing Bolt Using Hexagonal Bit Socket
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
