Sectional View

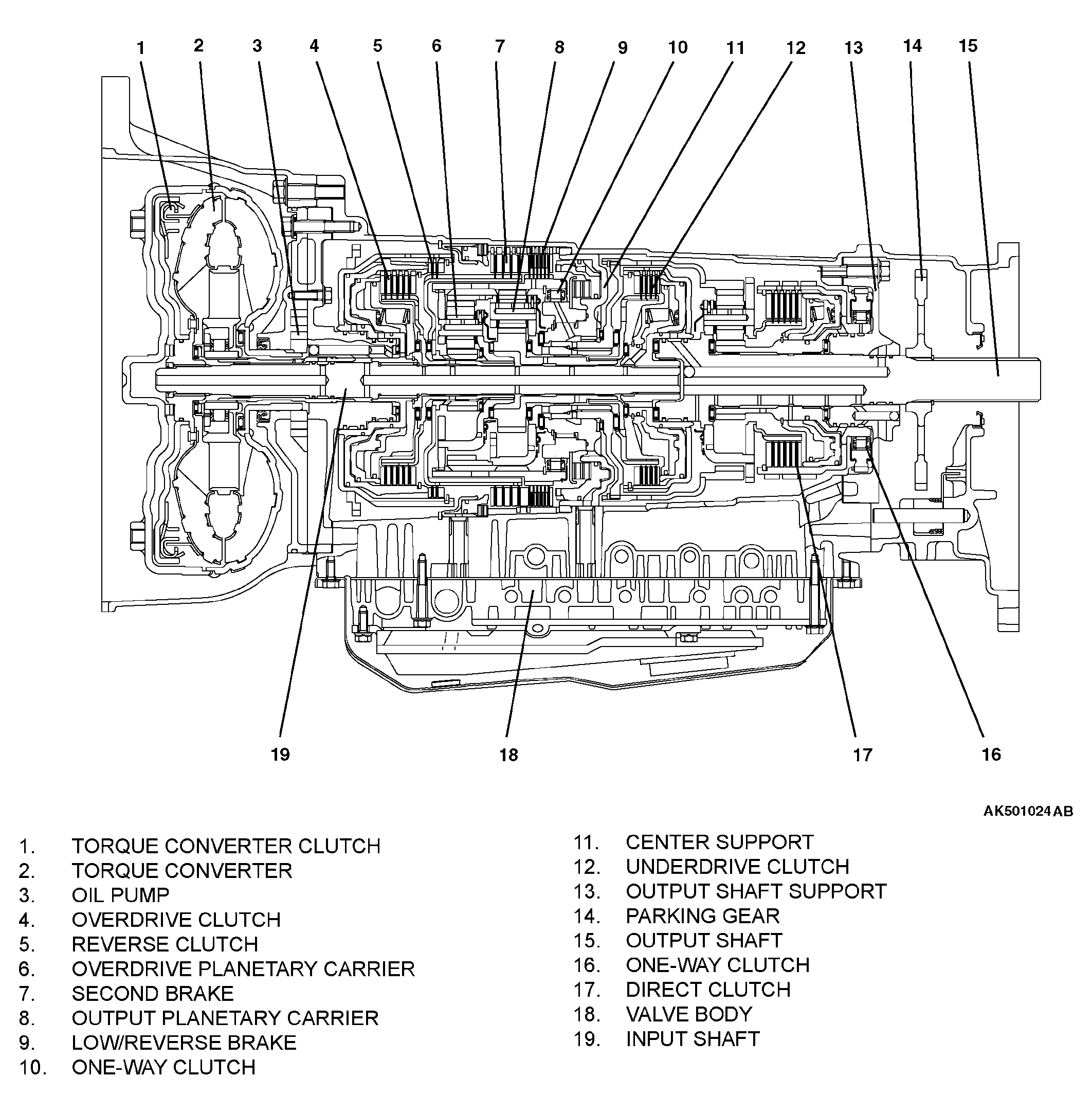

Fig 1: Sectional View Of Automatic Transmission (1 Of 2)
G04266263Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.


Fig 1: Sectional View Of Automatic Transmission (2 Of 2)
G04266264Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
