>> G << Transfer Case Plate Installation

Apply MITSUBISHI genuine grease Part number 0101011 or equivalent to the high-low shift rail inserting part indicated in the illustration.

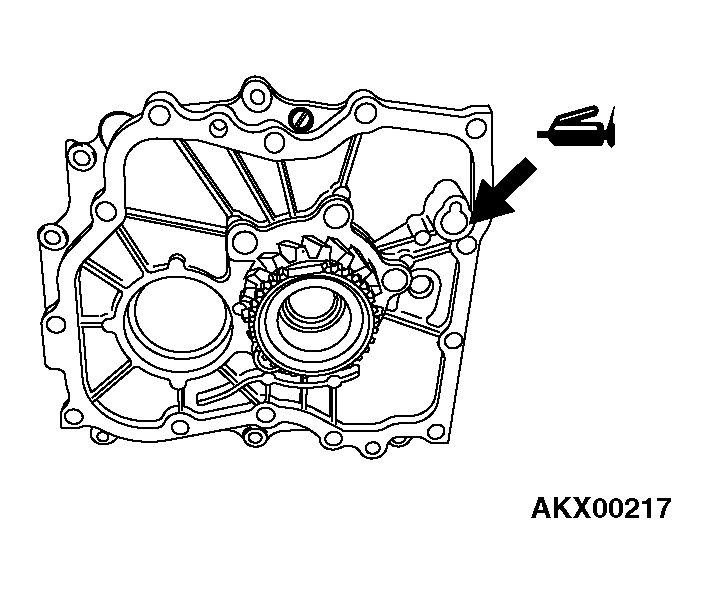

Fig 1: Applying Grease To High-Low Shift Rail
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Face the notched section of the input gears in the direction shown in the illustration.

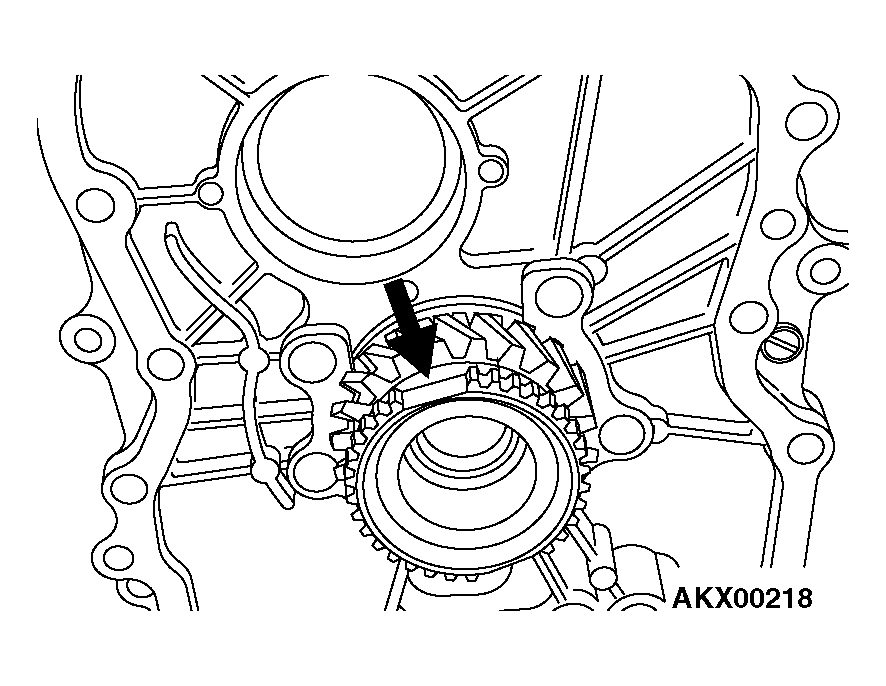

Fig 2: Identifying Notched Section Of Input Gears
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: Squeeze the sealant out evenly to apply it in an unbroken, non-excessive quantity.
Apply MITSUBISHI genuine sealant Part number MD997740 or equivalent to the transfer case.
CAUTION: In case the sub-gear is difficult to engage the counter shaft gear, install securely by rotating the transfer drive shaft and such.
Install the transfer case plate together with the input gear. Slide the input gear tooth aligned in Step 2 along the tooth space of the countershaft gear.

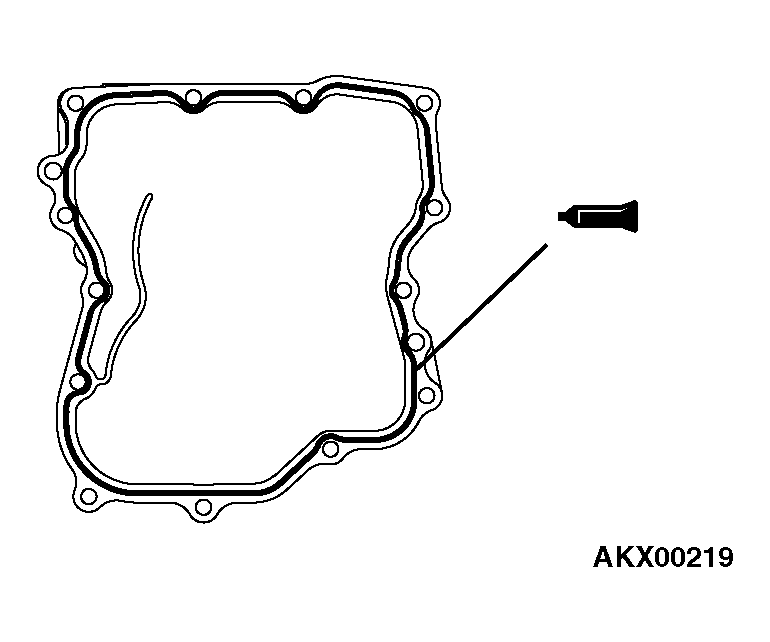

Fig 3: Applying Sealant To Transfer Case
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
