Disassembly And Assembly: Notes

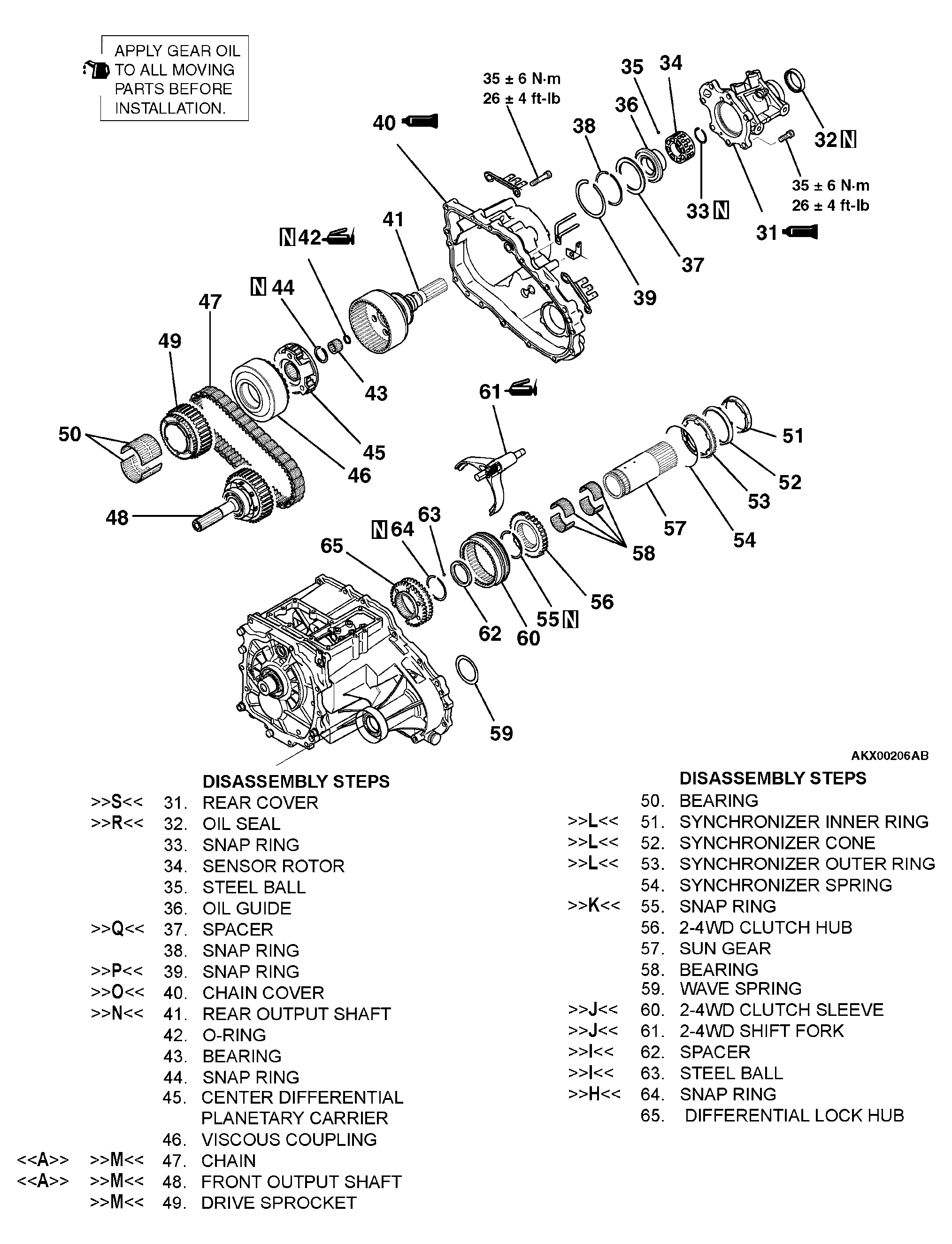

Fig 1: Disassembling/Assembling Transfer (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

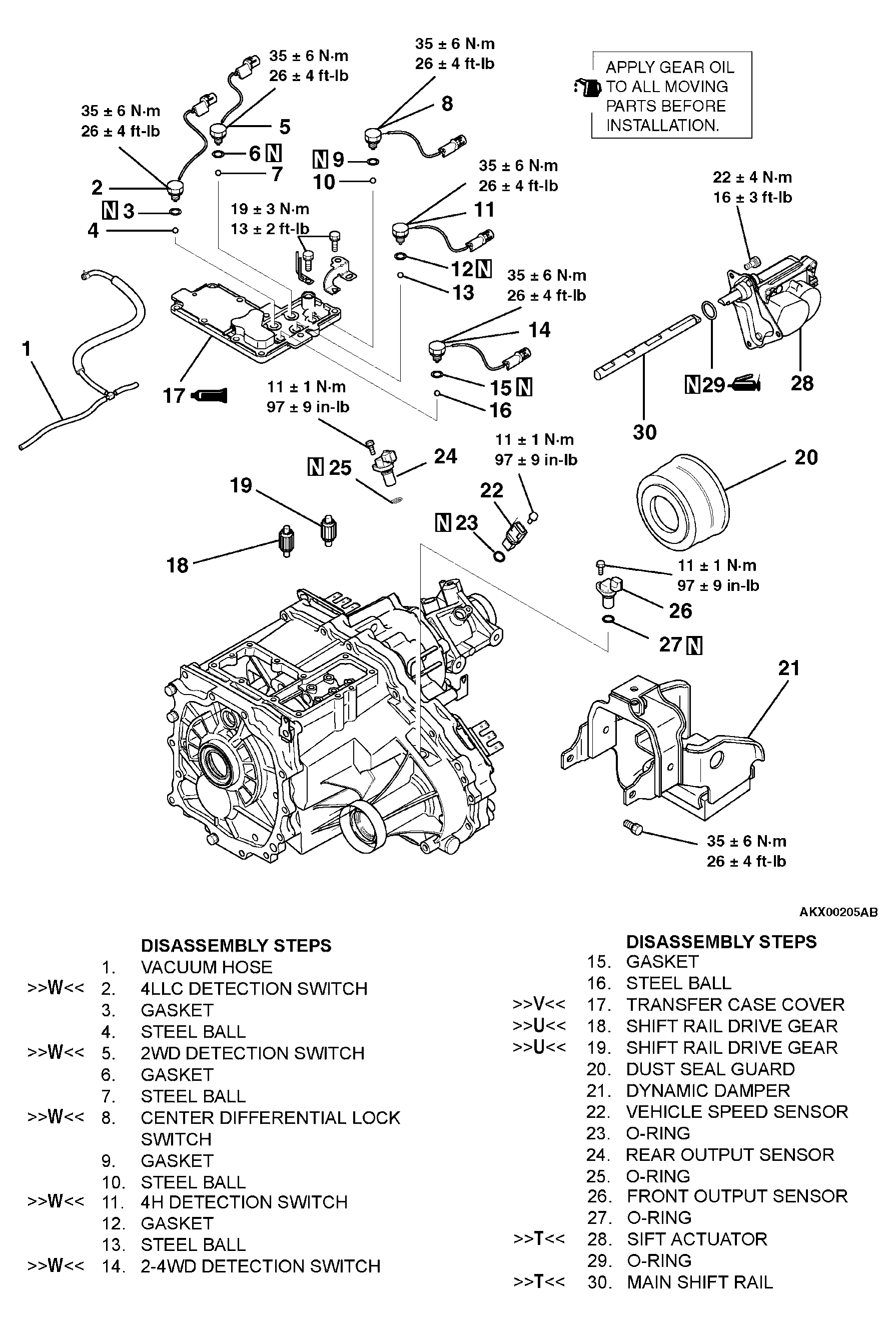

Fig 2: Disassembling/Assembling Transfer (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

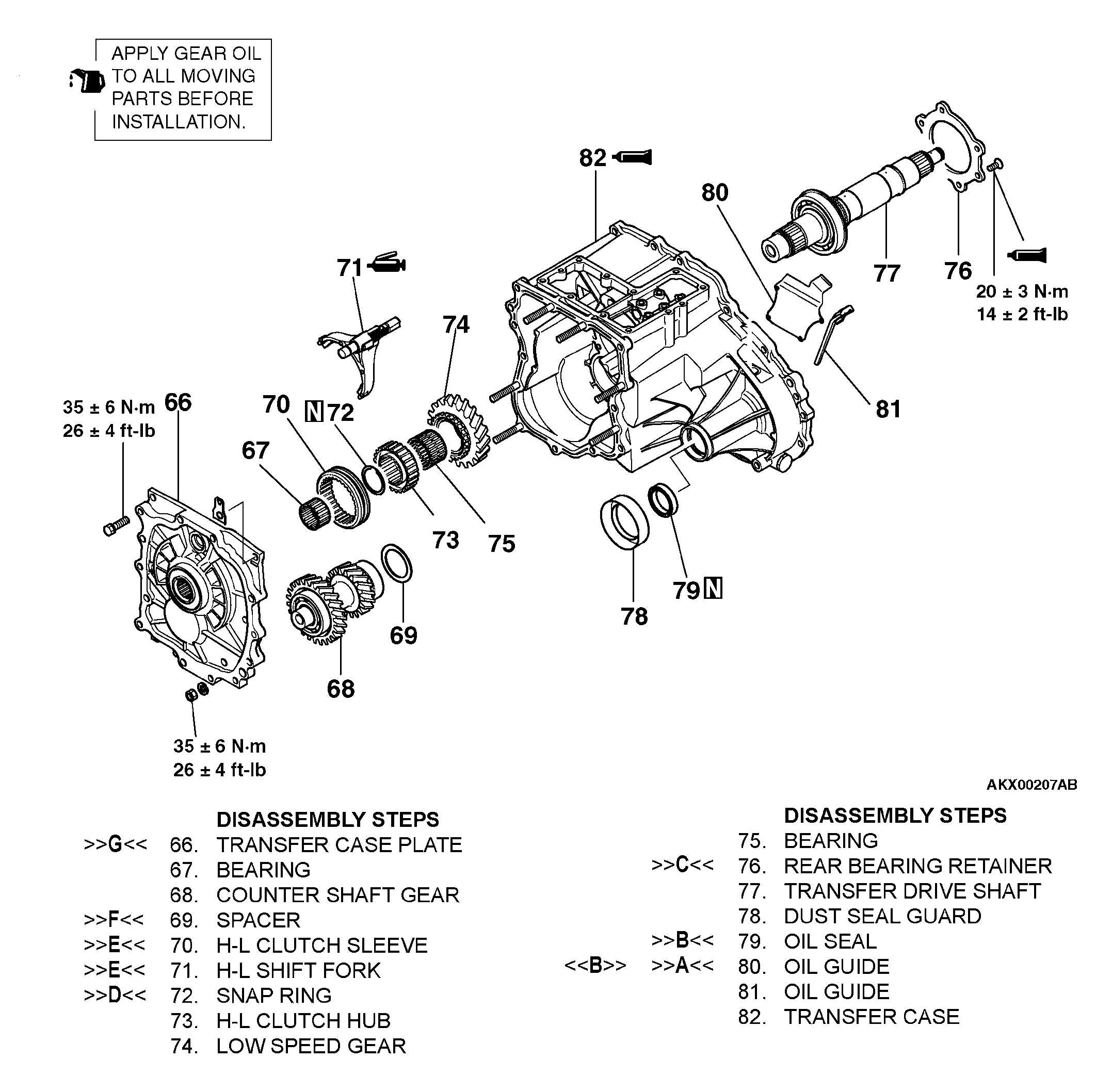

Fig 3: Disassembling/Assembling Transfer (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required special tools:

• MB990932: Installer Adapter
• MB990936: Installer Adapter
• MB990938: Handle
