Disassembly And Assembly: Notes

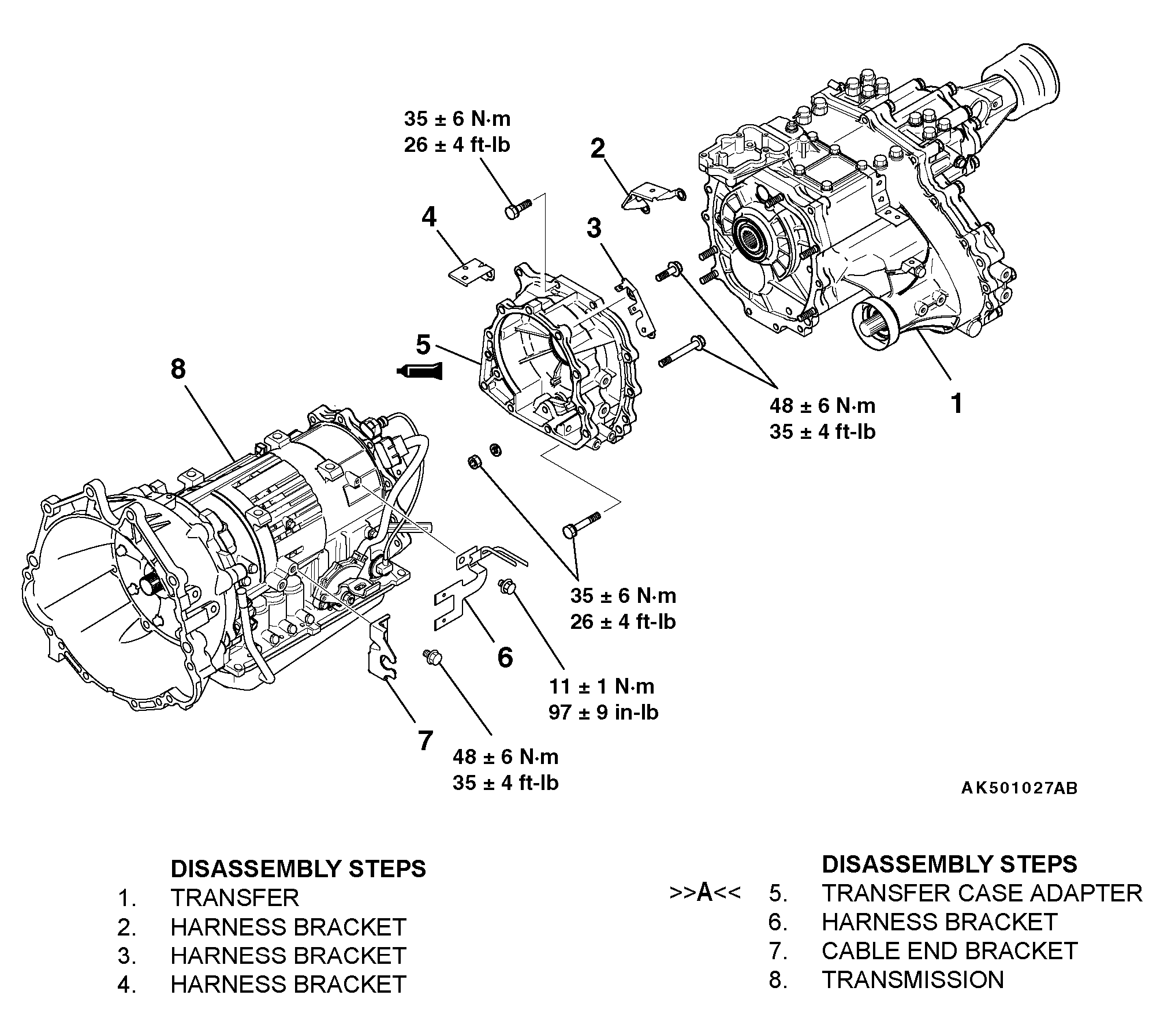

Fig 1: Disassembling/Assembling Transmission And Transfer
G04266298Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
