Disassembly And Assembly: Notes

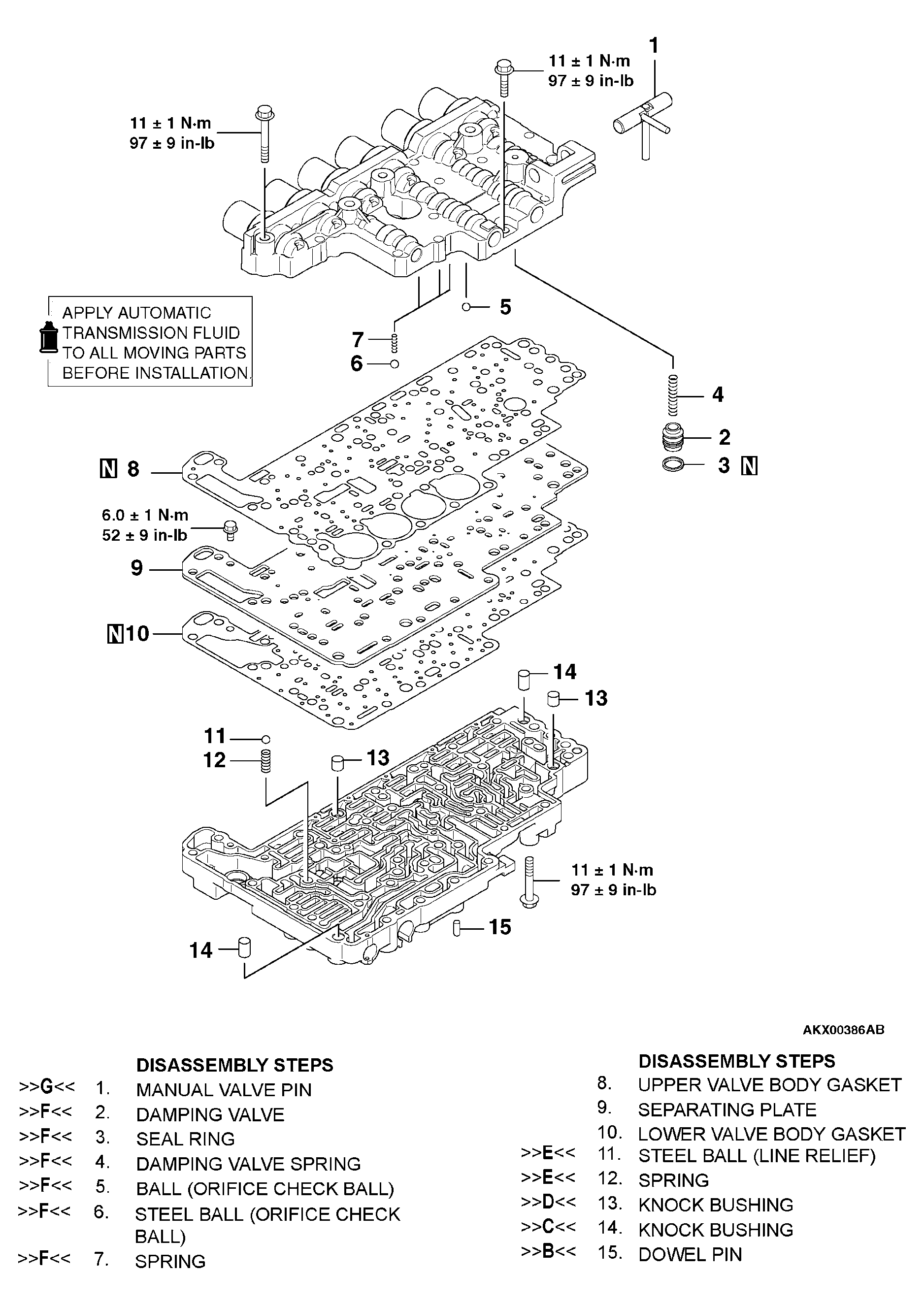

Fig 1: Disassembling/Assembling Valve Body (1 Of 3)
G04266467Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

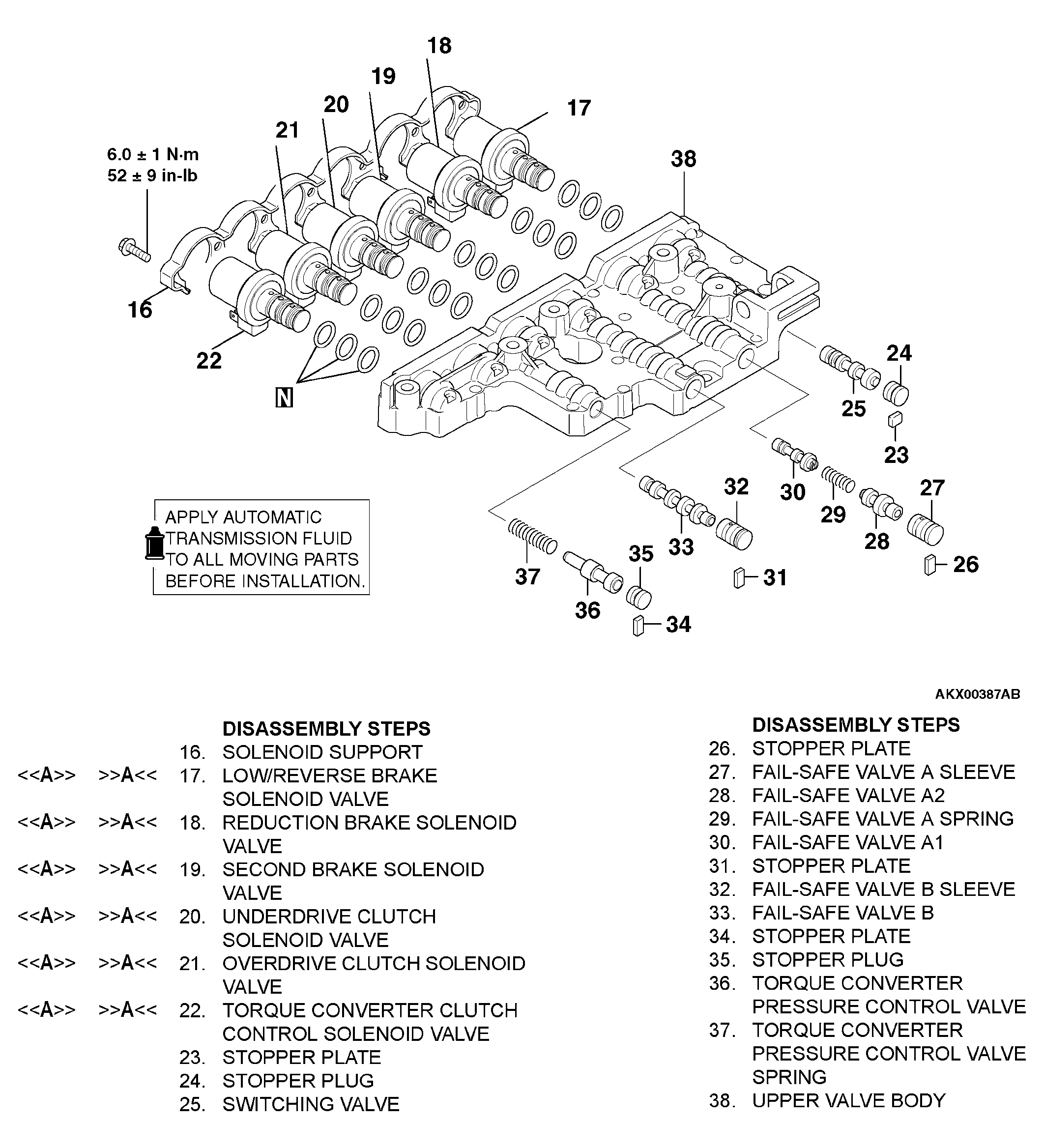

Fig 2: Disassembling/Assembling Valve Body (2 Of 3)
G04266468Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

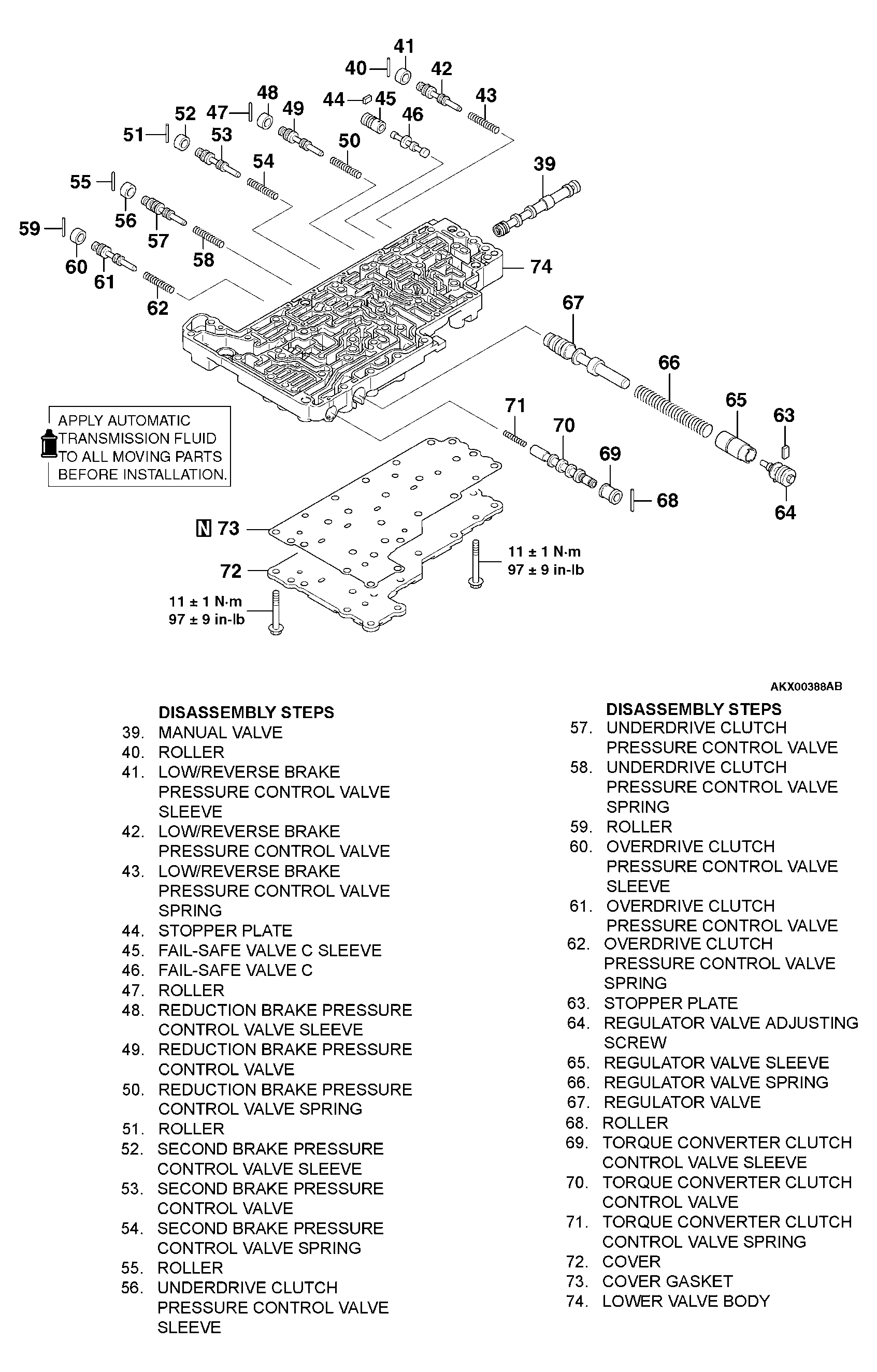

Fig 3: Disassembling/Assembling Valve Body (3 Of 3)
G04266469Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
