Disassembly and Assembly

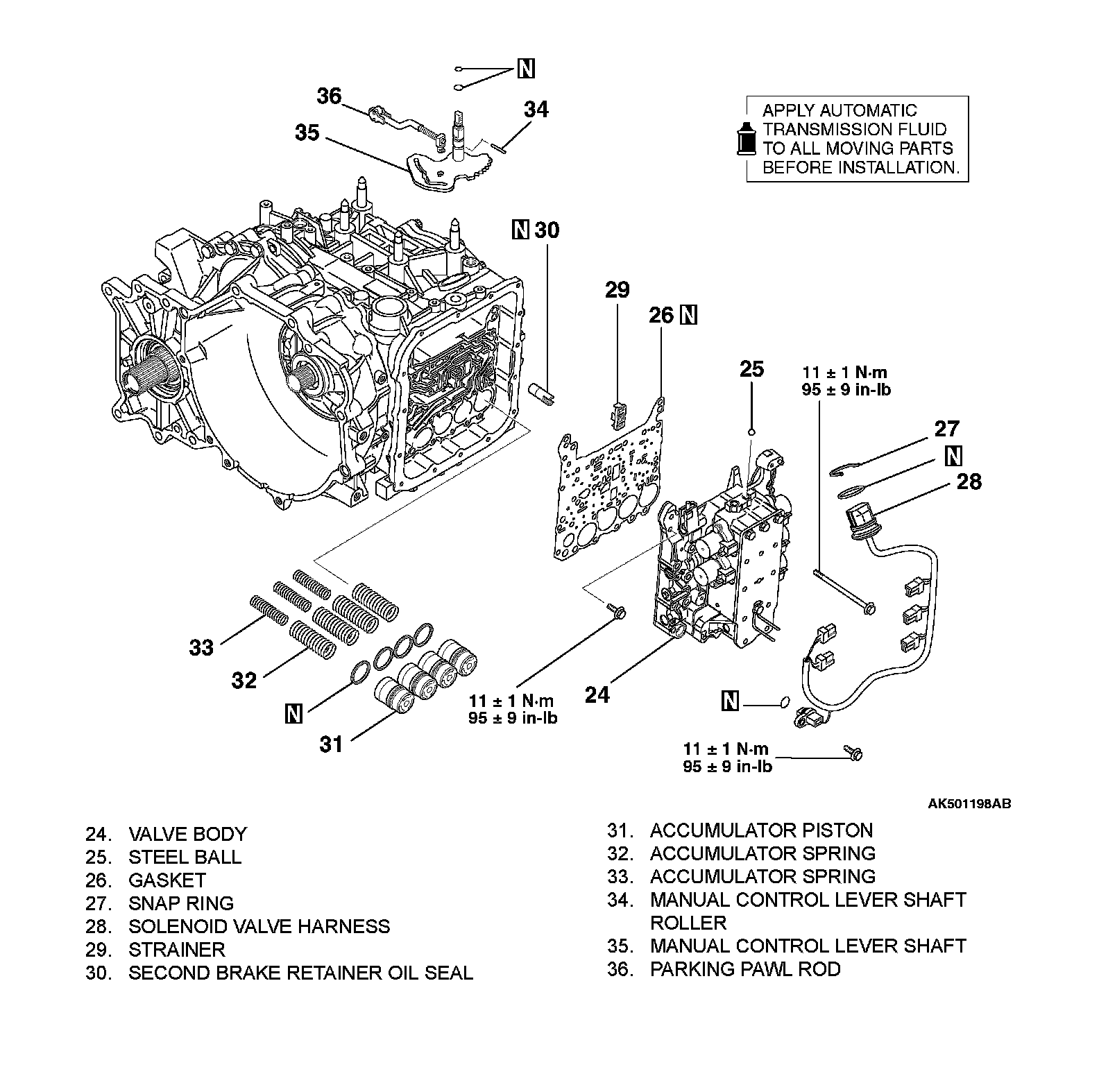

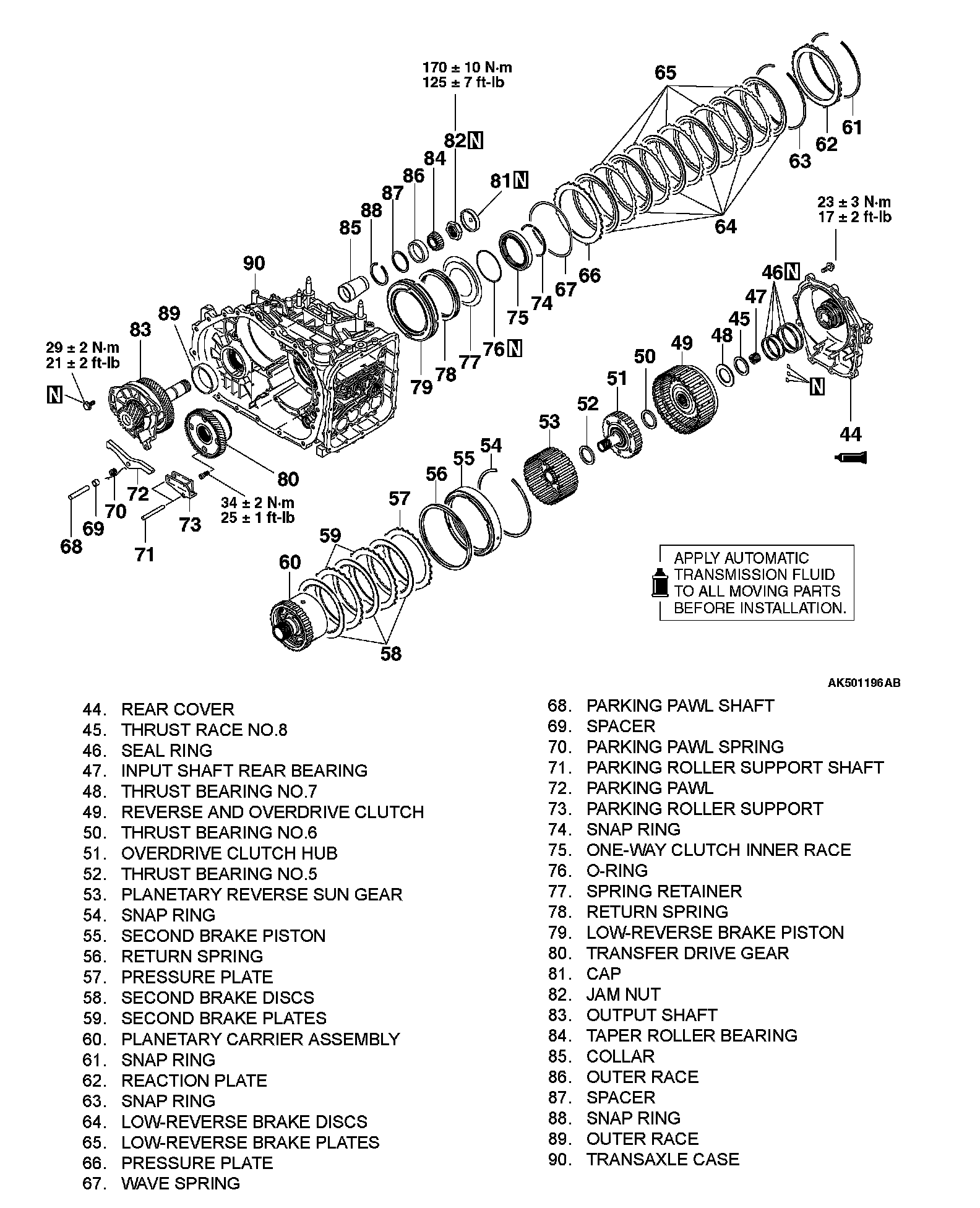

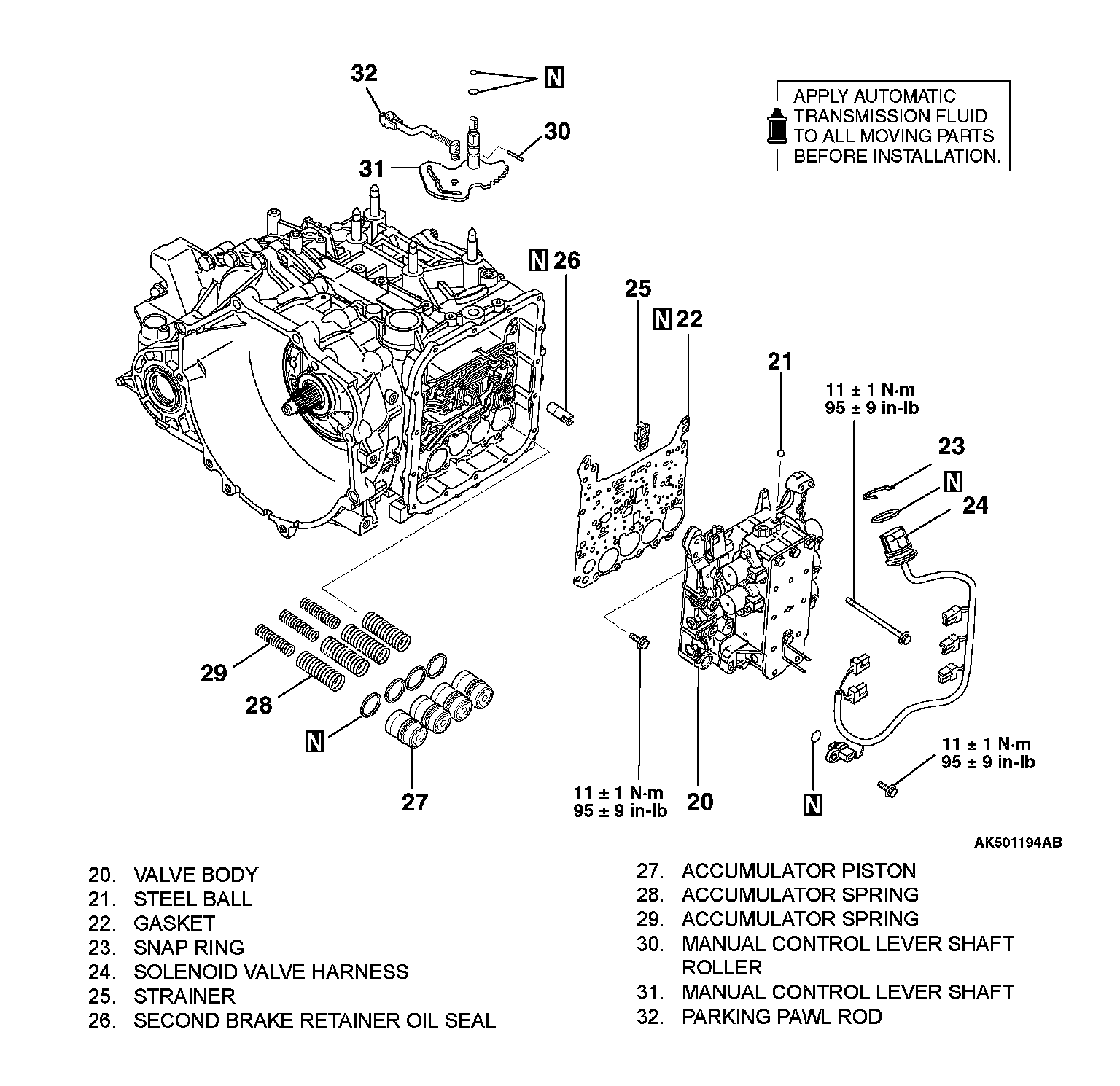

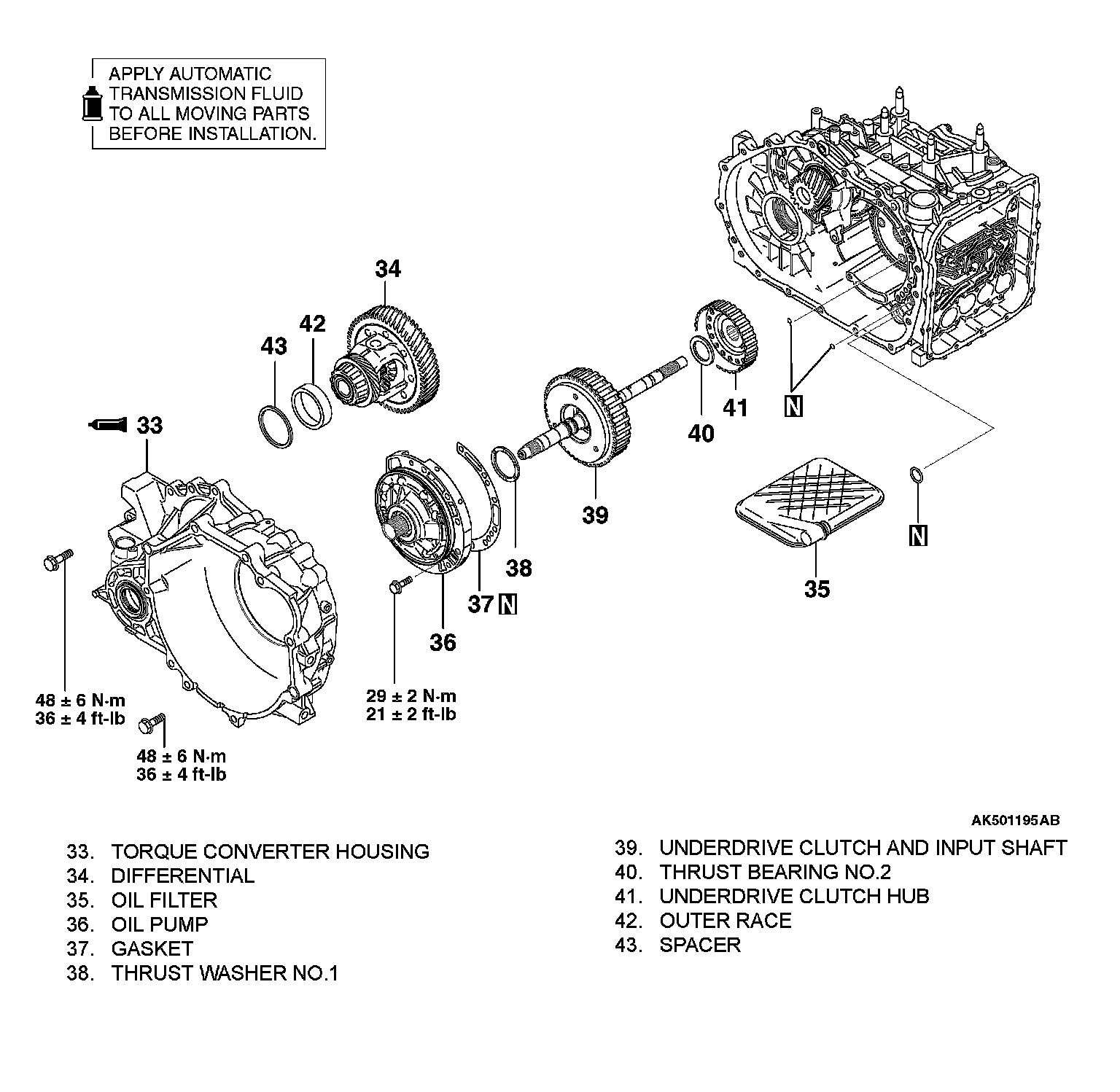

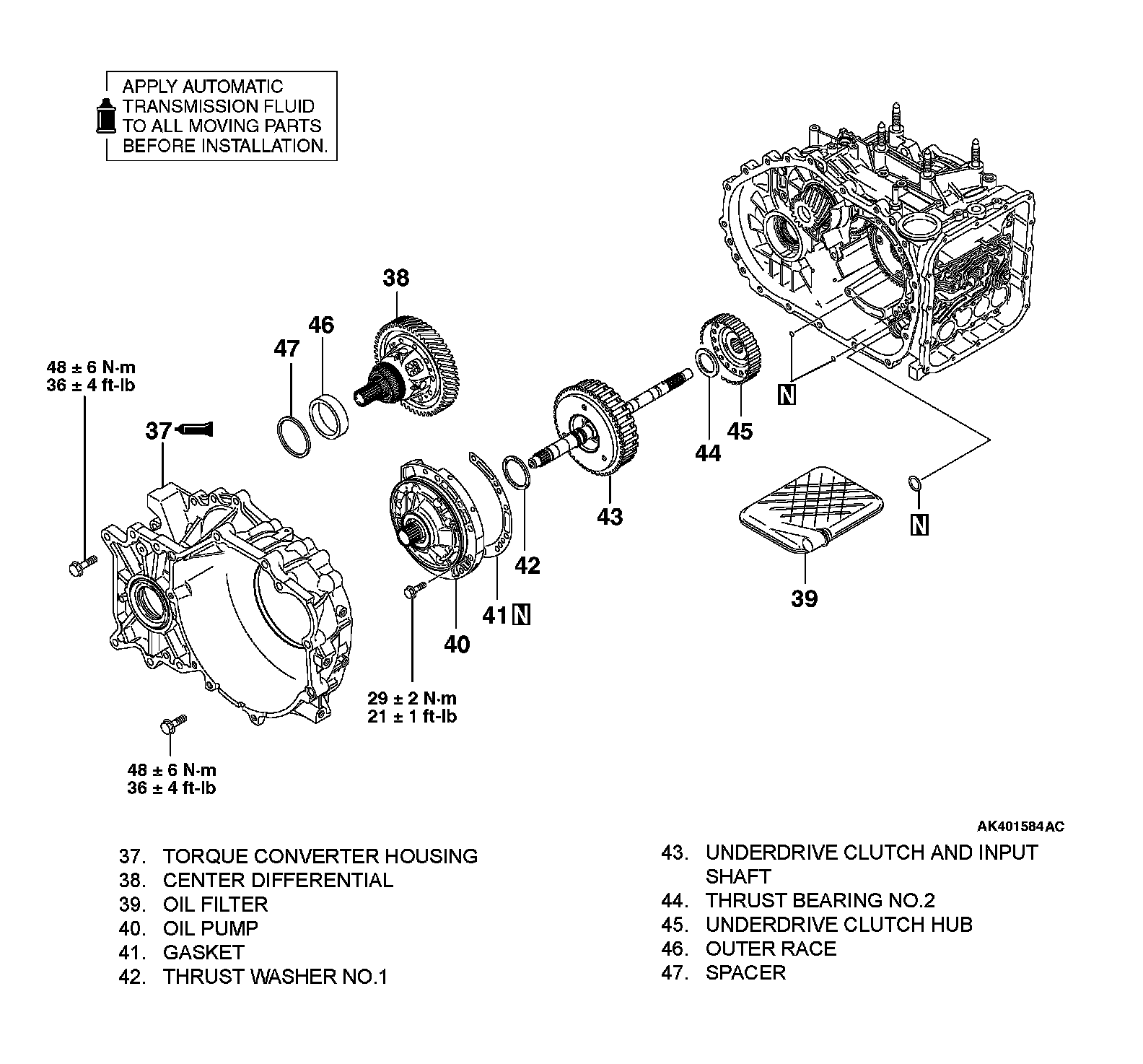

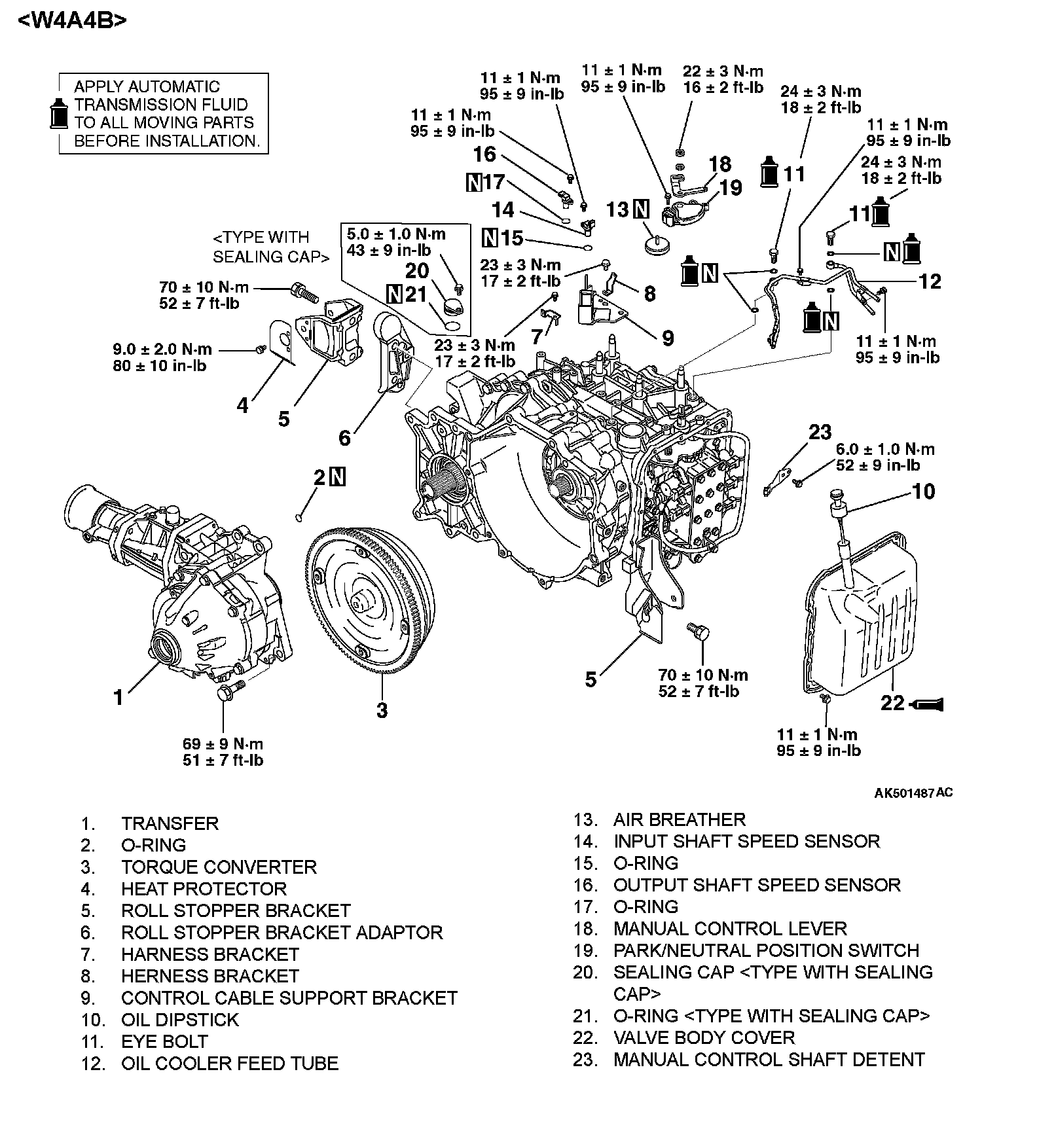

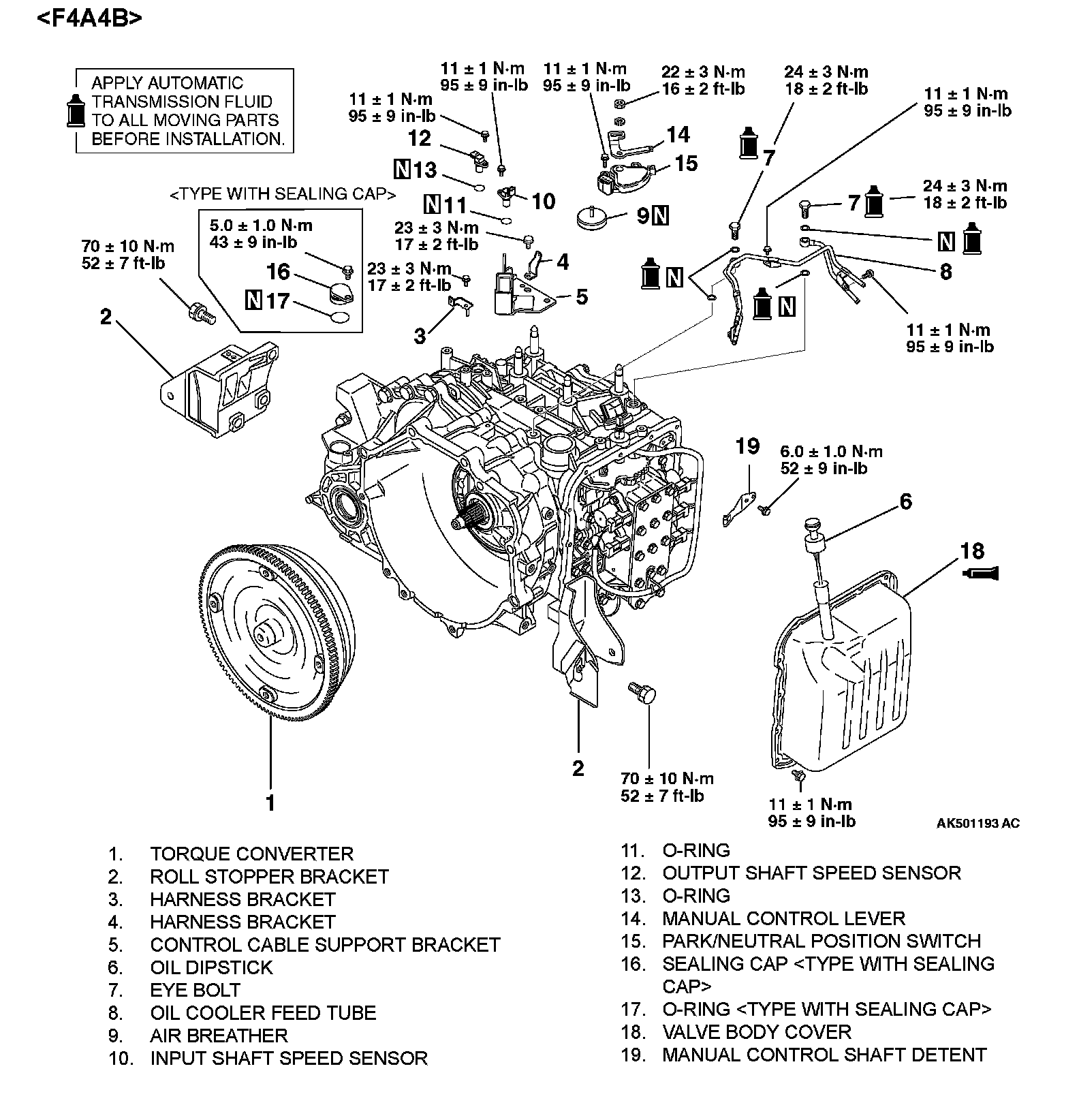

TRANSAXLE DISASSEMBLY AND ASSEMBLY
Required Special Tools:
Required Special Tools:
