Control Module HVAC: Service and Repair

AUTOMATIC A/C CONTROL PANEL ASSEMBLY (A/C-ECU)

REMOVAL AND INSTALLATION

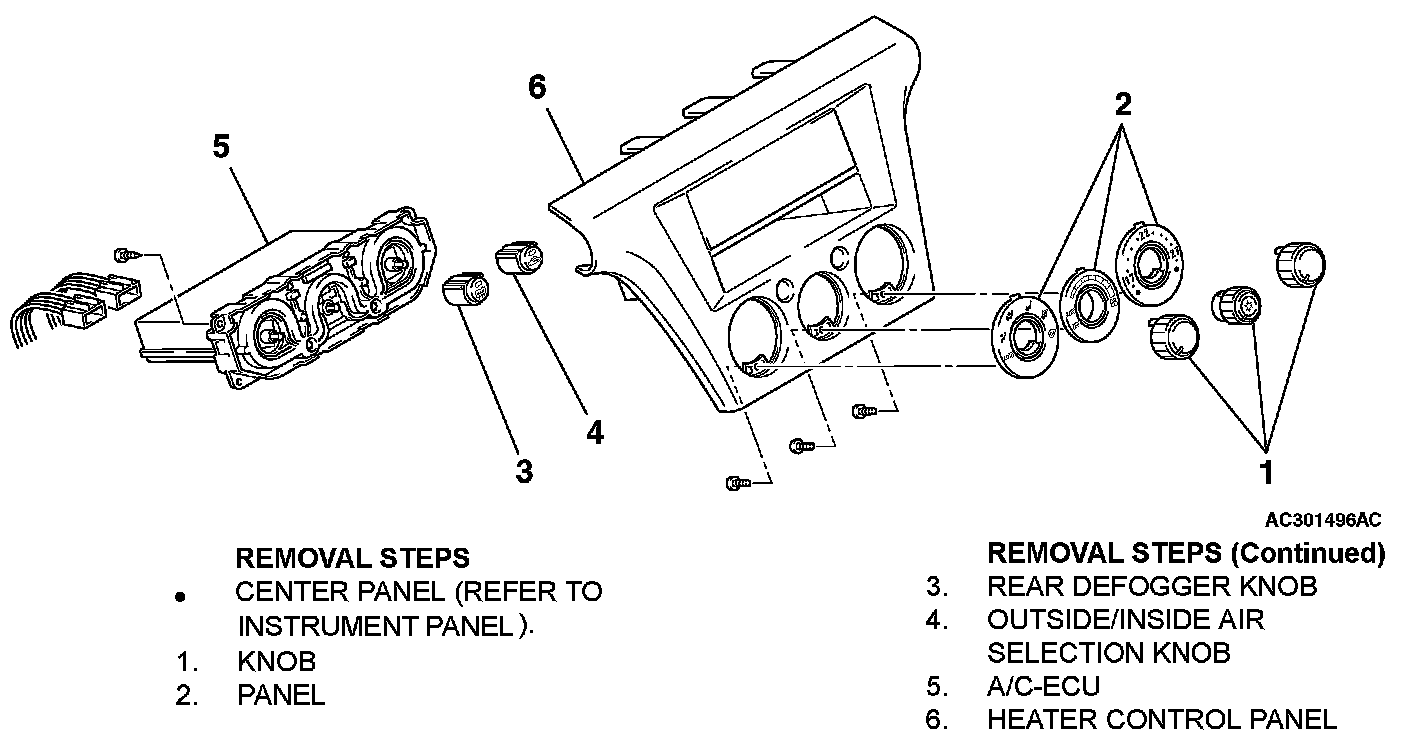

Removal Steps 1-6:
