PCM Terminal Resistance and Continuity Inspection Chart

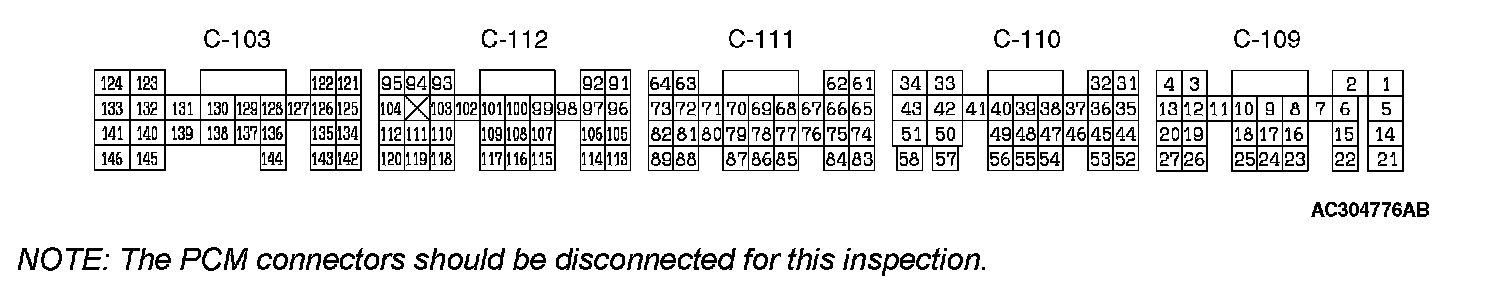

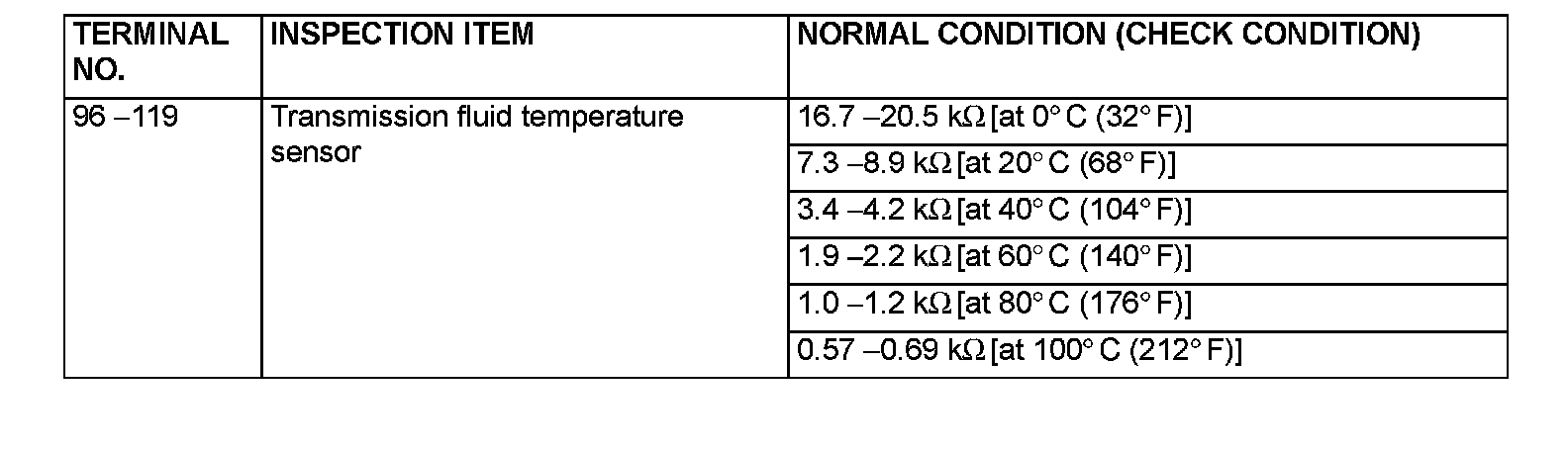

PCM TERMINAL RESISTANCE AND CONTINUITY INSPECTION CHART:
PCM TERMINAL RESISTANCE AND CONTINUITY INSPECTION CHART:
