General Circuit Diagram For The Keyless Entry System

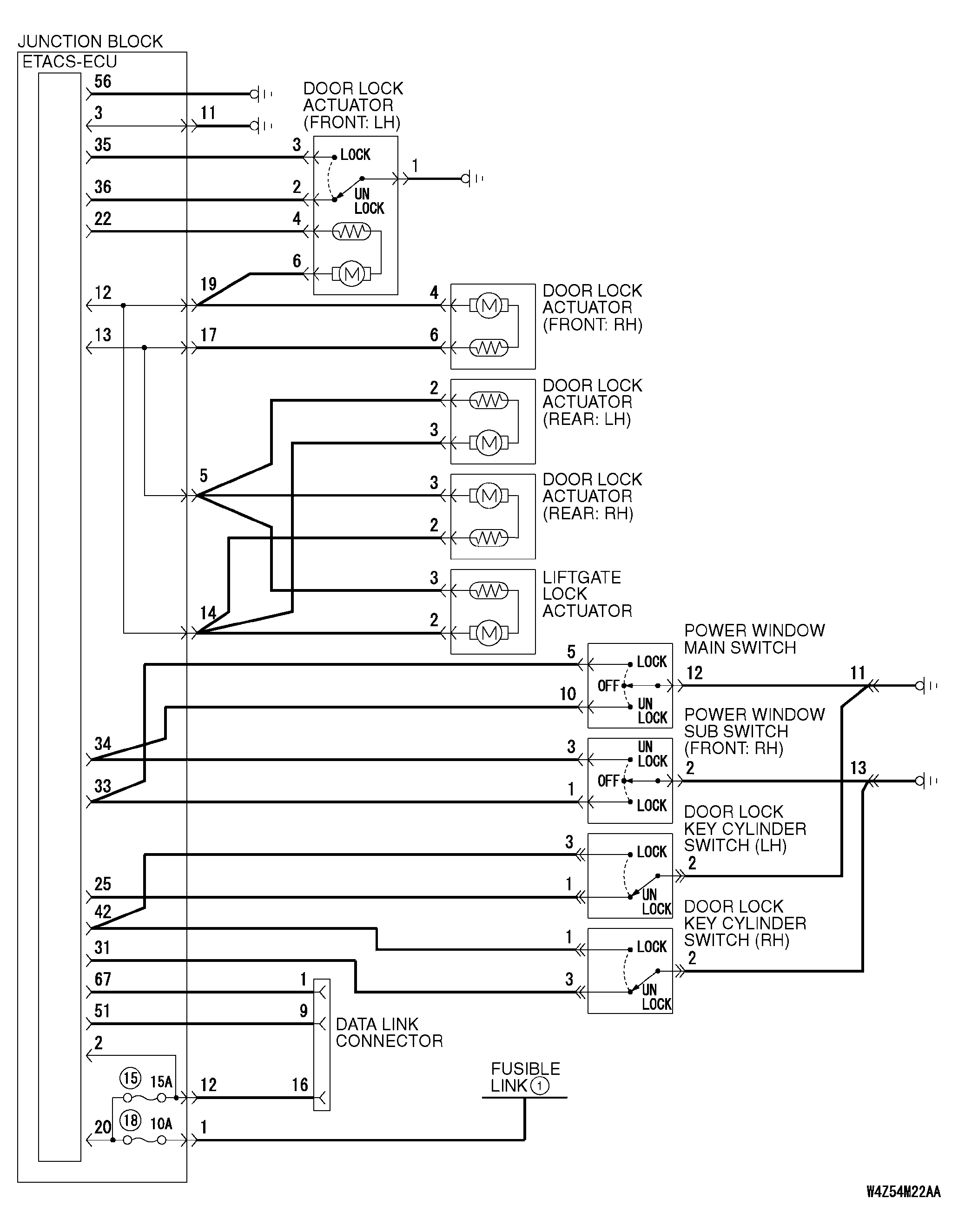

Fig 1: General Circuit Diagram For Keyless Entry System (1 Of 2)
G04305696Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

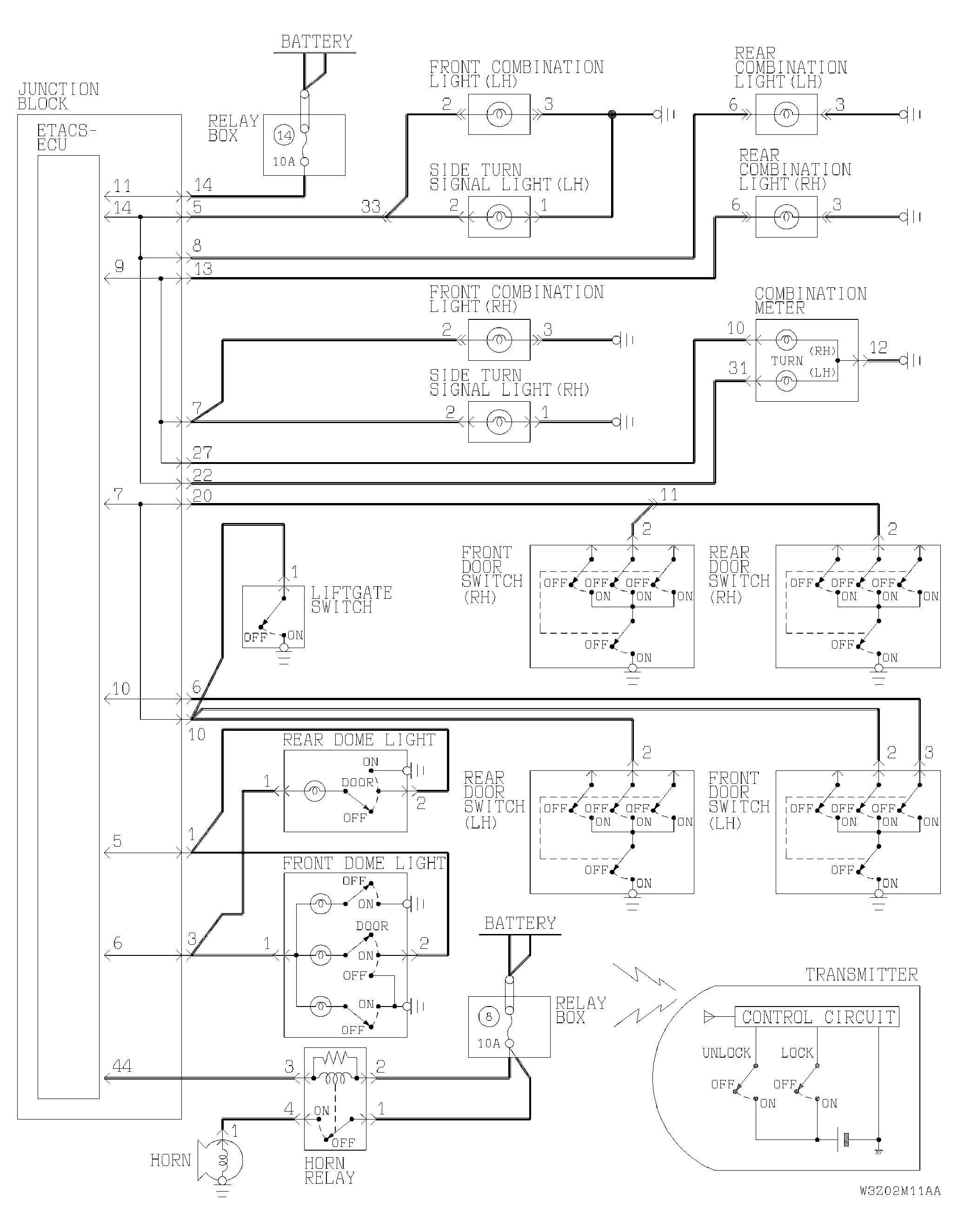

Fig 2: General Circuit Diagram For Keyless Entry System (2 Of 2)
G04305697Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
