DTC B1488: Passenger's Air Bag OFF Indicator Light Drive Circuit System Fault 2 (Passenger's Air Bag OFF Indicator Light Drive Circuit Malfunction).: Notes

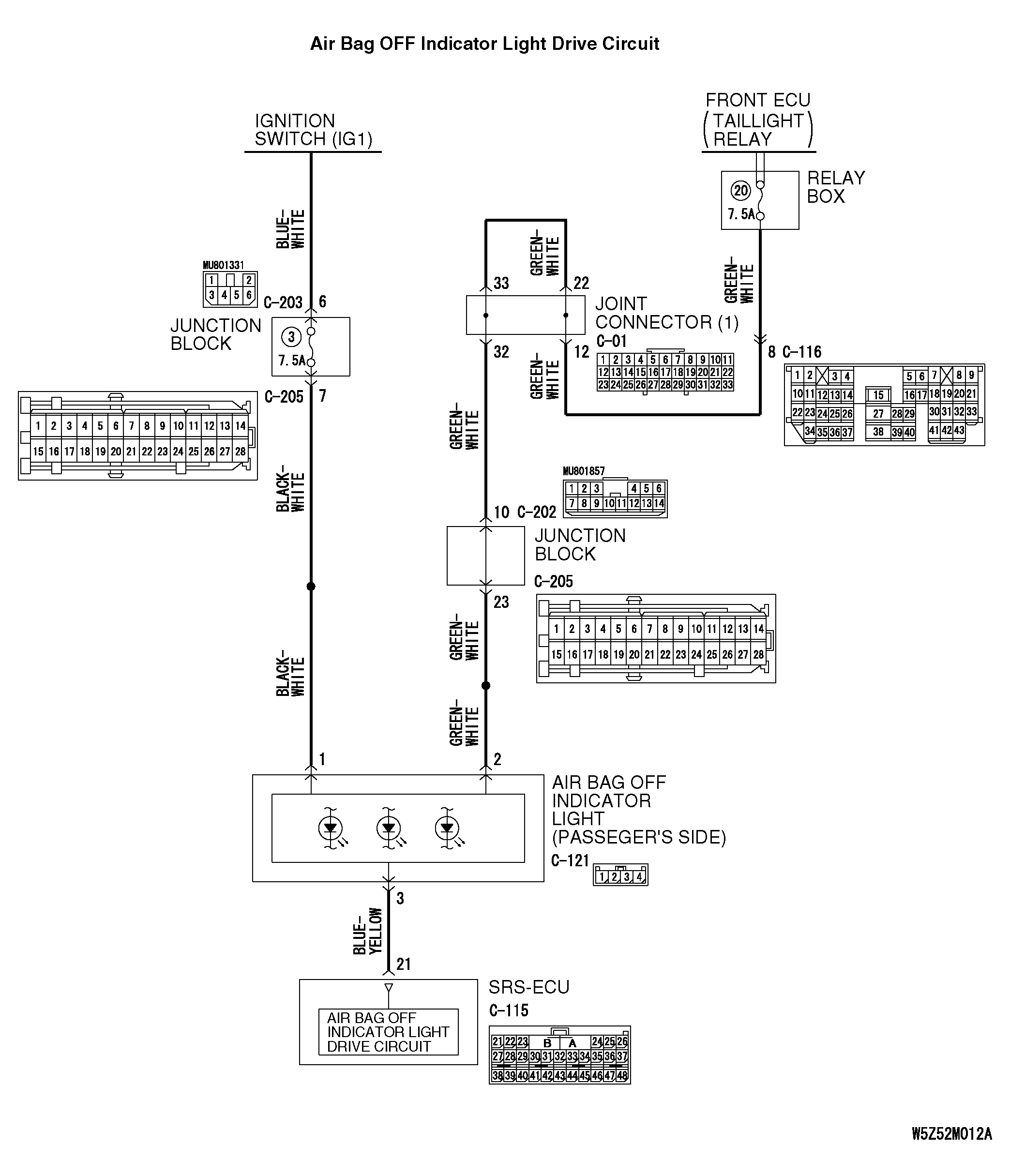

Fig 1: Air Bag OFF Indicator Light Drive Circuit Diagram
G04304763Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
