>>B<< Seat Slide Sensor Installation

WARNING: If the seat slide sensor is not installed securely and correctly, the driver's air bag may not operate normally.
  1. Securely connect the connector.
  2. After installing the seat slide sensor, check the output current of the seat slide position with scan tool MB991958 (front side of the seat: low current, back side of the seat: high current) and confirm that there is no abnormality.

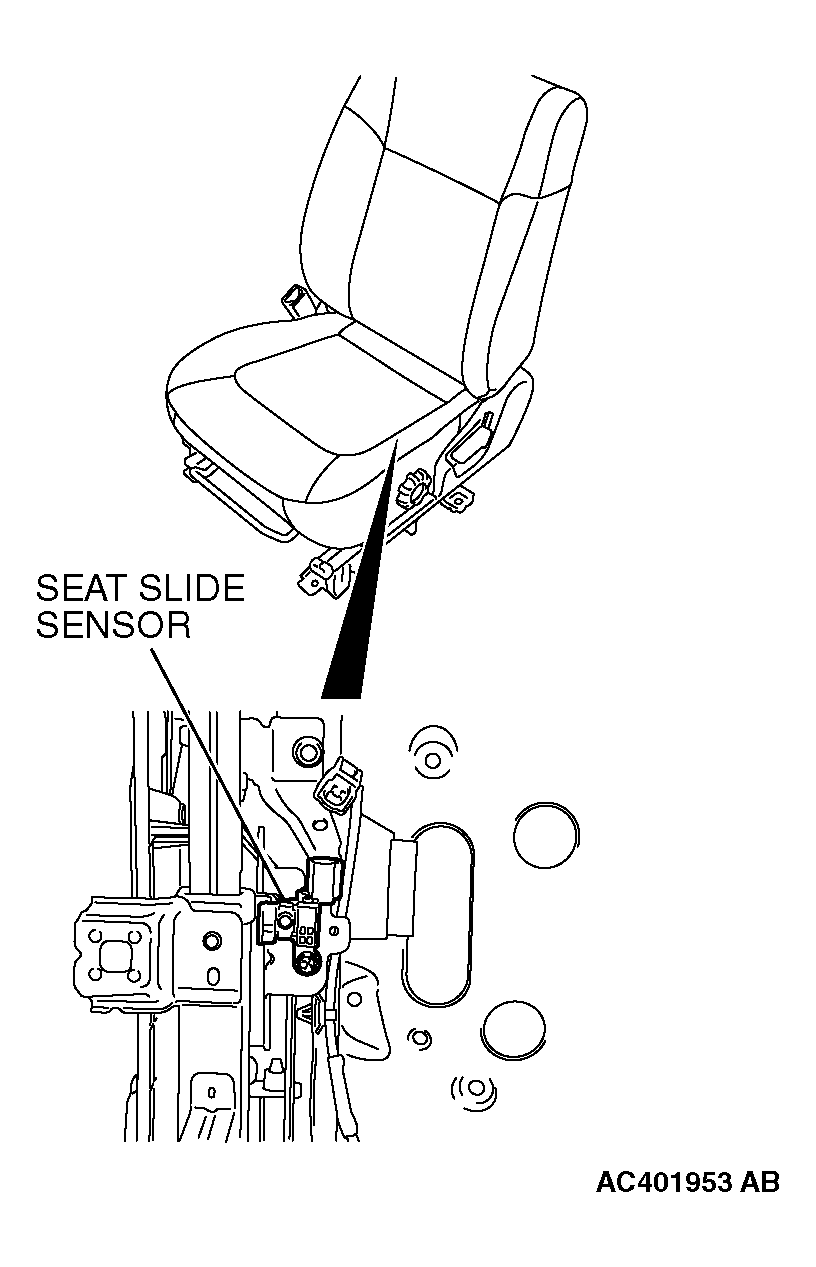

Fig 1: Identifying Seat Slide Sensor
G04305028Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
