>>C<< Post-Installation Inspection

  1. Reconnect the negative (-) battery cable.
  2. Turn the ignition switch to the "ON" position.
  3. Does the "SRS" warning light illuminate for approximately seven seconds, and go out?
  4. If yes, the SRS system is functioning properly. If not, refer to SRS WARNING LIGHT CHECK .

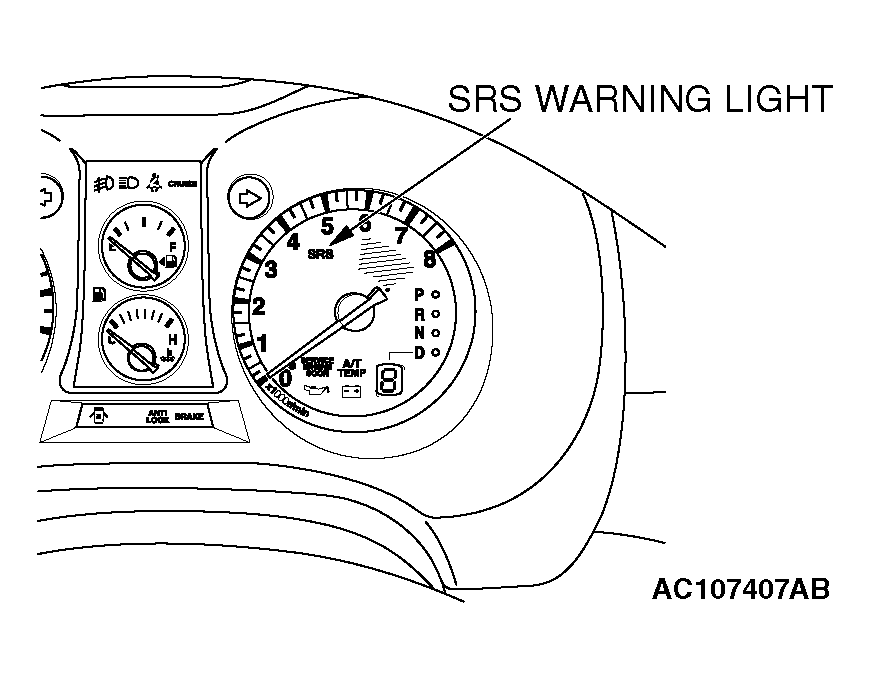

Fig 1: Identifying SRS Warning Light
G04305029Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
