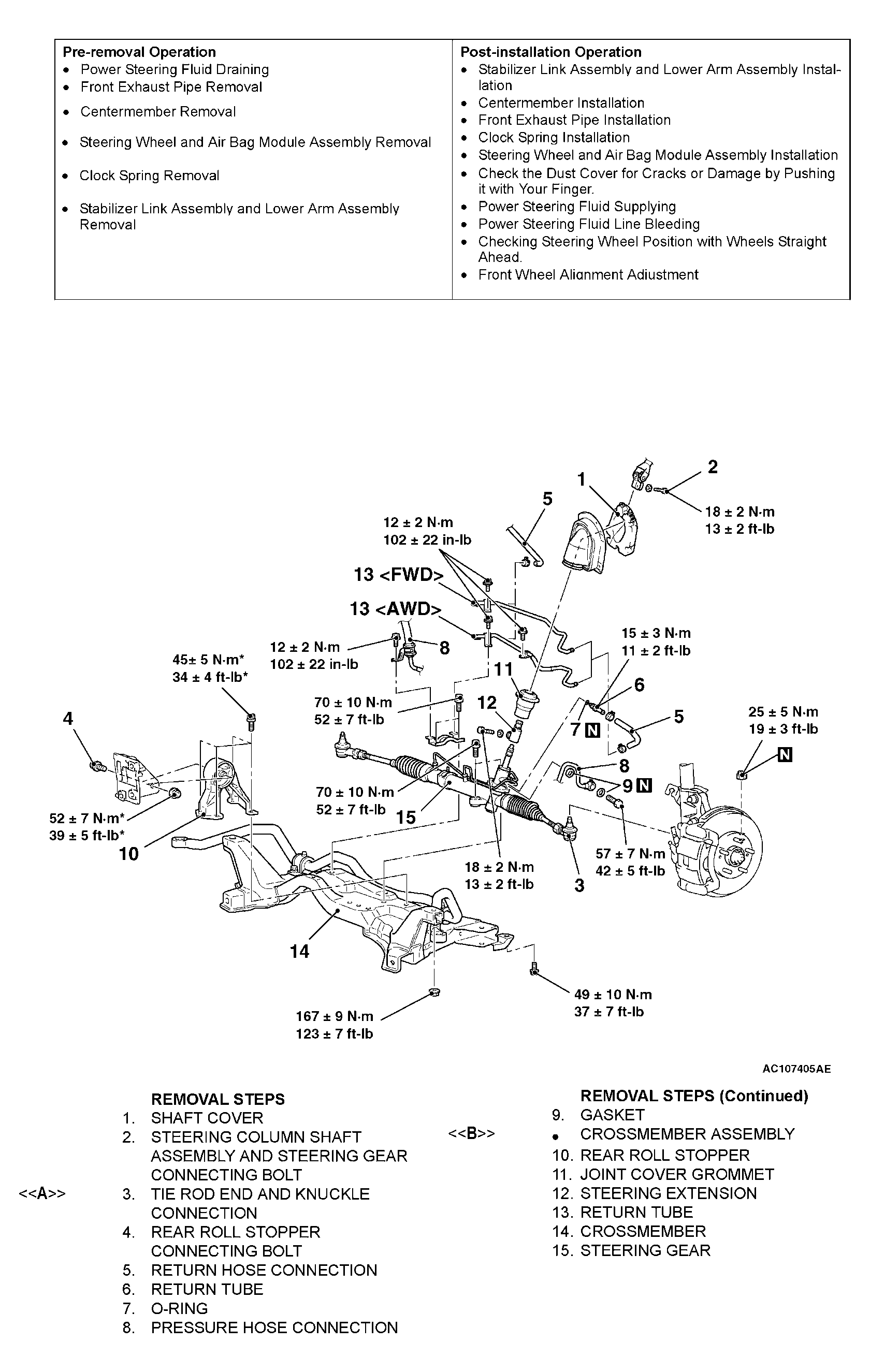

Removal And Installation: Notes
WARNING:
Before removing the steering gear, refer to
SERVICE PRECAUTIONS
and AIR BAG MODULE AND CLOCK SPRING
. Center the front wheels. Failure to do so may damage the SRS clock spring and render the SRS system inoperative, risking serious injury.
CAUTION:
*: Indicates parts which should be temporarily tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.
