Test Equipment

TEST EQUIPMENT CHART

TOOL	NAME	USE

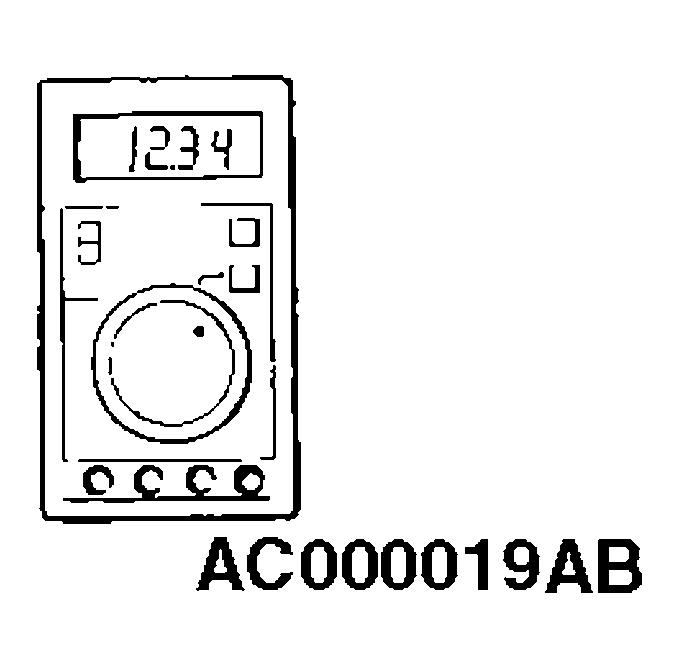

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	Digital multi-meter Use a multi-meter for which the maximum test current is 2 mA or less at the minimum range of resistance measurement	Checking the SRS electrical circuitry with SRS check harness
