Removal And Installation: Notes

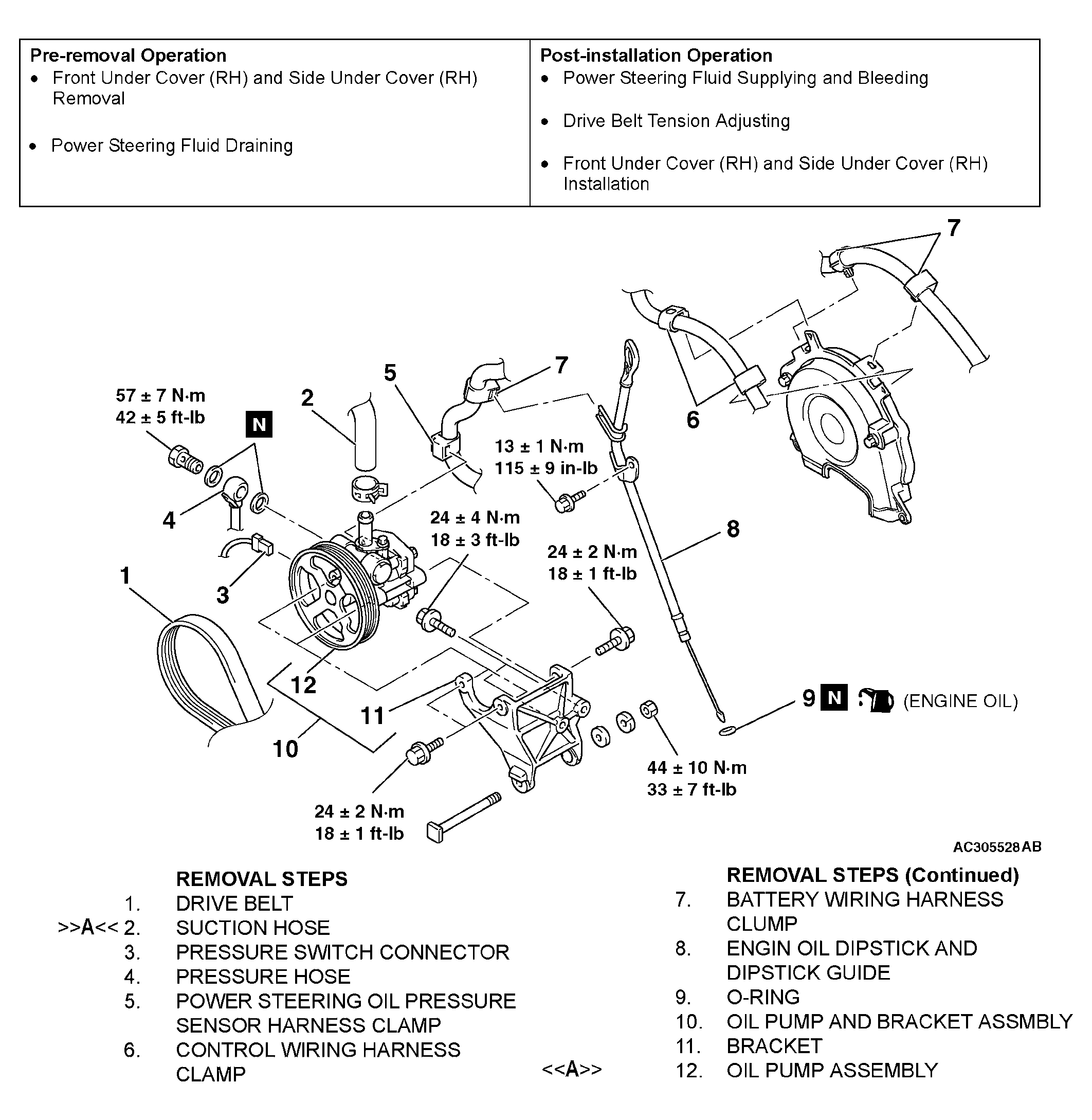

Fig 1: Removal And Installation Of Power Steering Oil Pump Assembly
G04304025Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
