Air Bag Module Assembly Removal

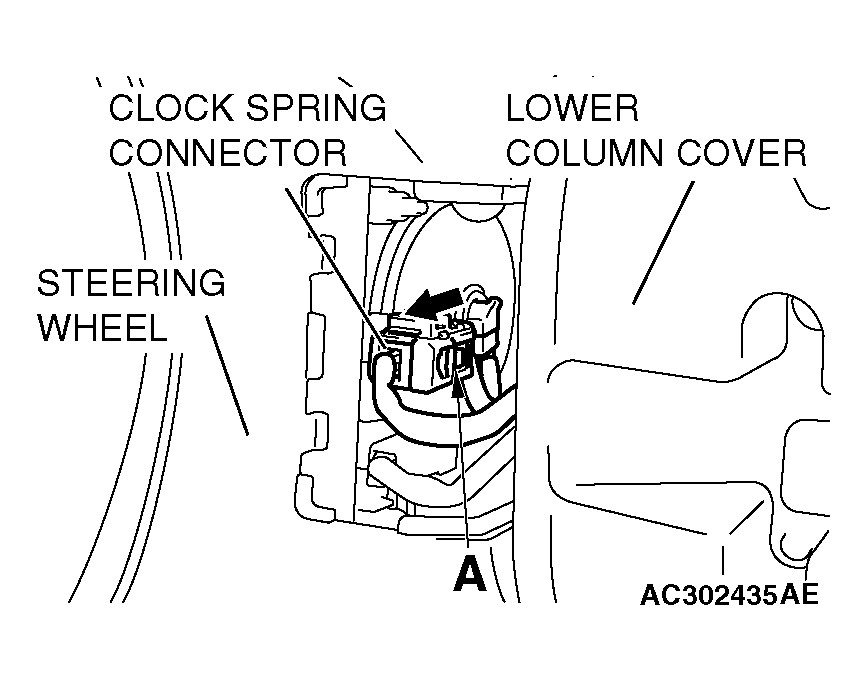

By sliding section A of the clock spring connector shown in the illustration in the arrow direction, disconnect the connector.

Fig 1: Removing Air Bag Module Assembly
G04303978Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
