Memory Positioning Module
Module-Occupant Classification C1-Black 10 Way:

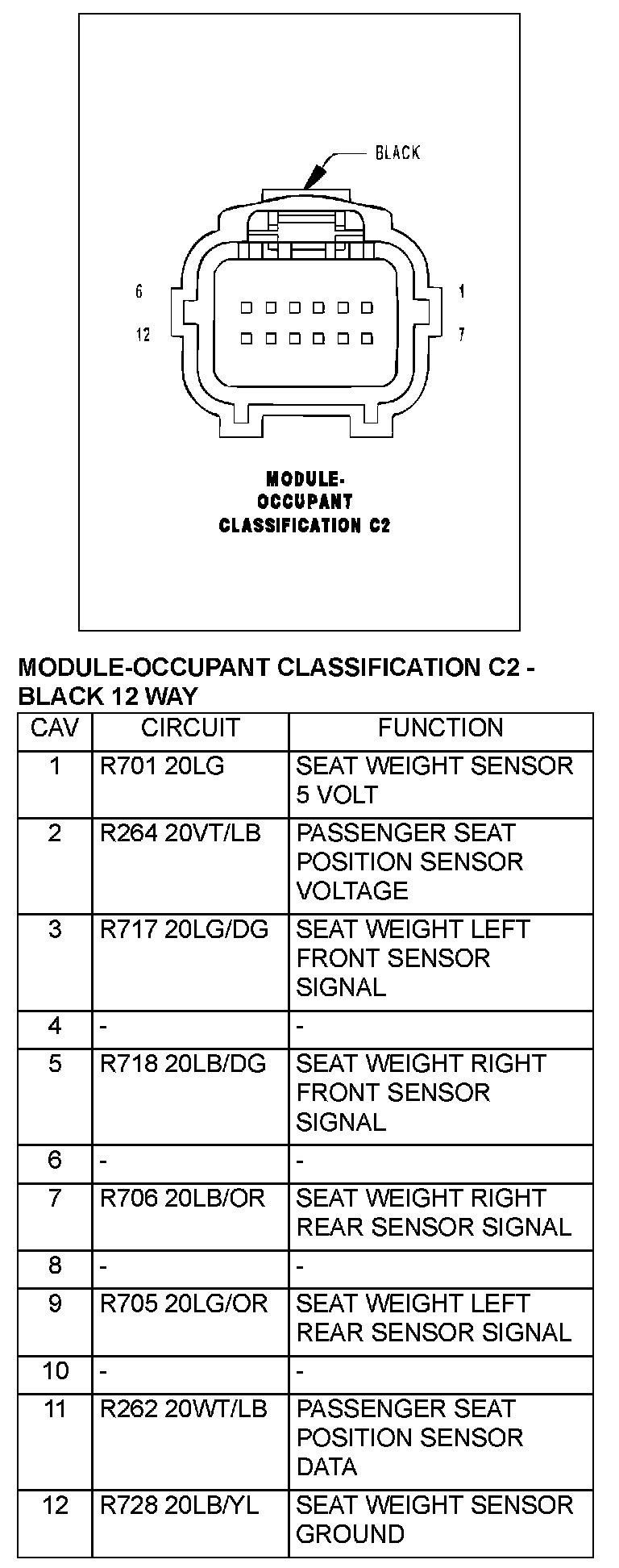

Module-Occupant Classification C2-Black 12 Way:
