*Can C Diagnostic (+) Circuit Low: Notes

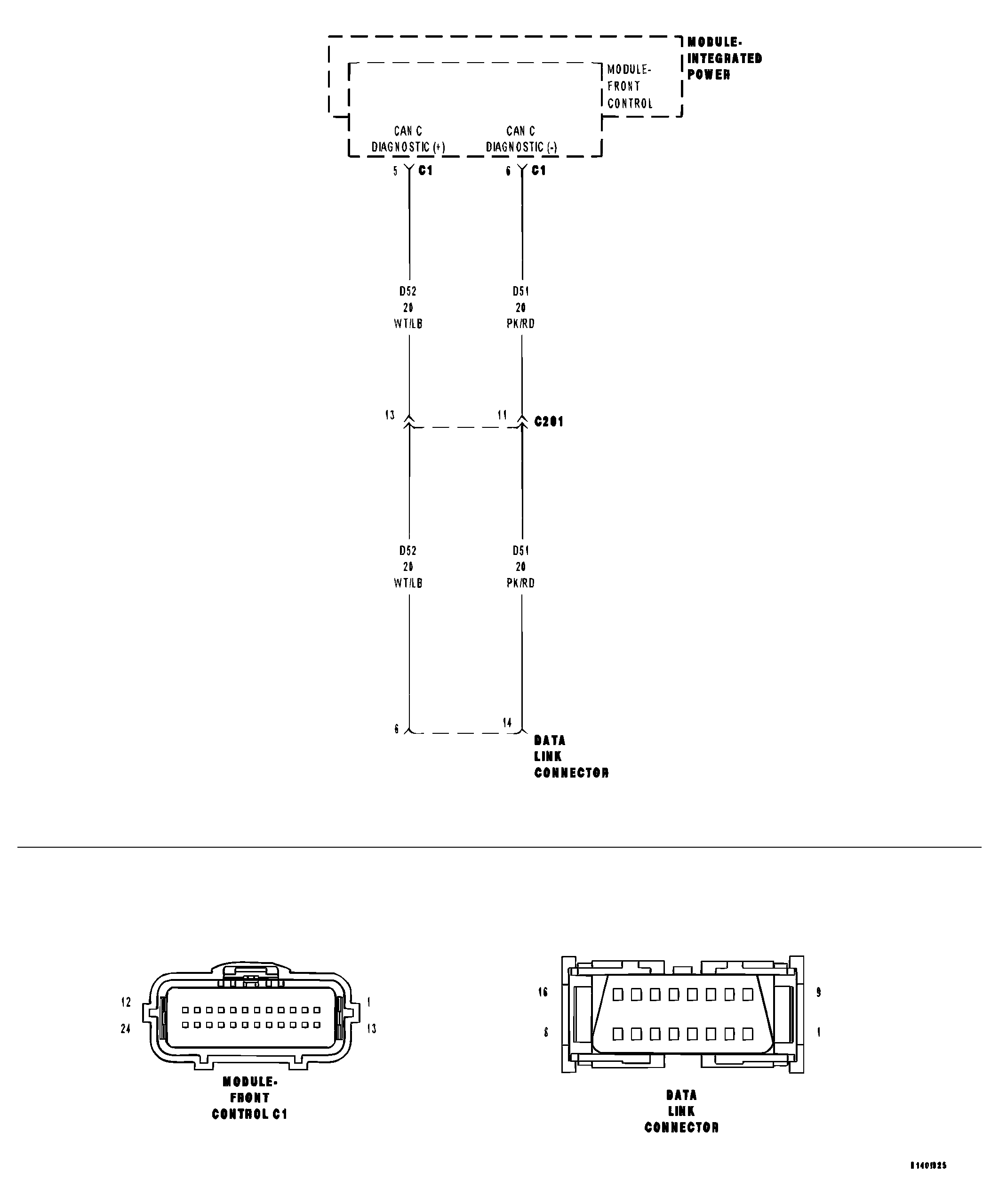

Fig 1: CAN C Diagnostic (+) Low - Wiring Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For a complete wiring diagram Refer to SYSTEM WIRING DIAGRAMS .

• When Monitored:

  When the scan tool queries the FCM  .

• Set Condition:

  The scan tool has detected a shorted low condition on the (D52) CAN C Diagnostic (+) circuit  .

Possible Causes

(D52) CAN C DIAGNOSTIC (+) CIRCUIT SHORTED TO GROUND

FRONT CONTROL MODULE
