*No Response From HFM (Hands Free Module): Notes

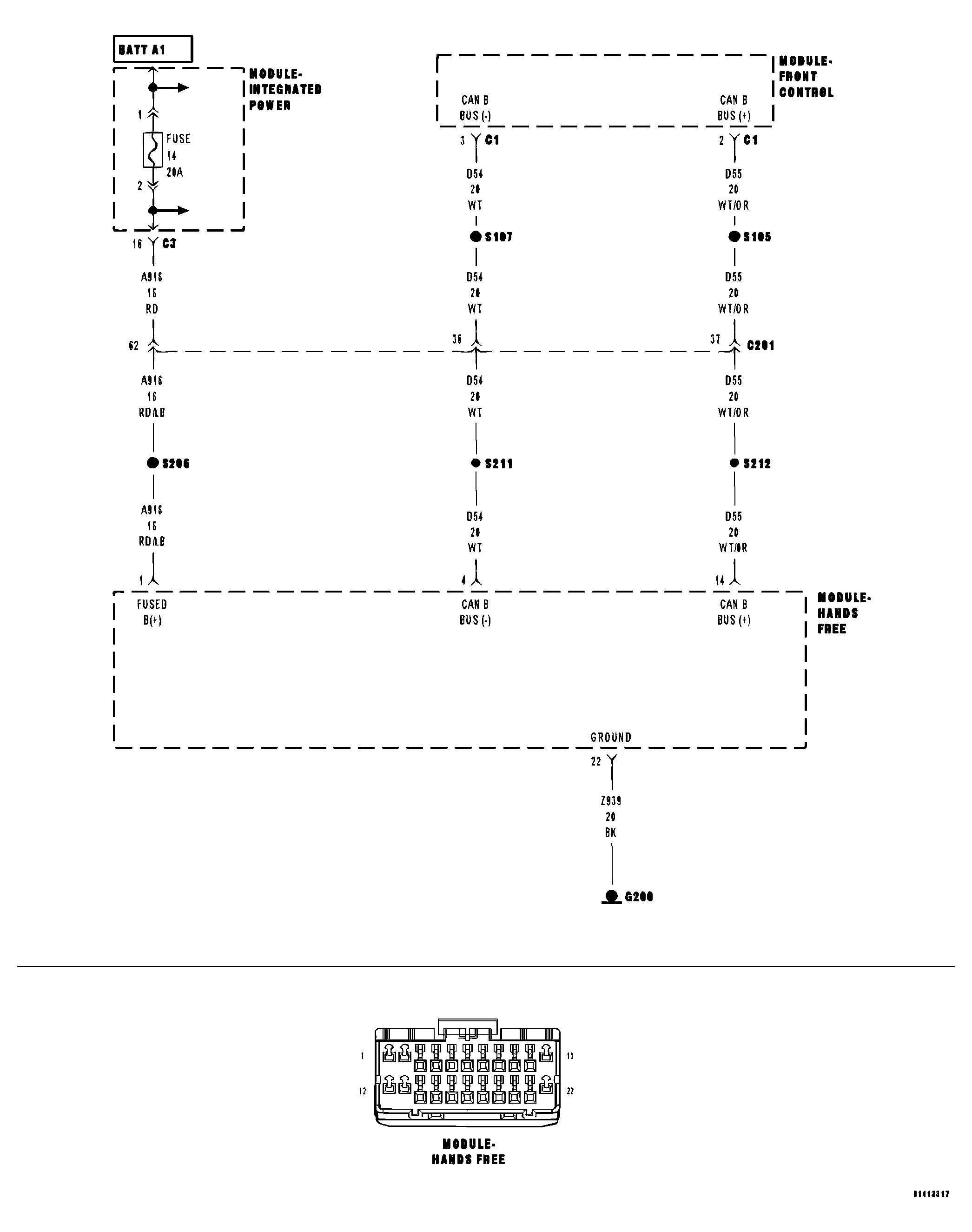

Fig 1: No Response From HFM (Hands Free Module) - Wiring Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For a complete wiring diagram Refer to SYSTEM WIRING DIAGRAMS .

Possible Causes

(A918) FUSED B(+) CIRCUIT OPEN OR SHORTED

(Z939) GROUND CIRCUIT OPEN

(D55) AND (D54) CAN B BUS CIRCUITS OPEN

HANDS FREE MODULE
