Diagnostic Test

TEST FOR INTERMITTENT CONDITION
1. Turn the ignition on.
  NOTE: Ensure the IOD fuse is installed and battery voltage is between 10.0 and 16.0 volts.
2. With the scan tool, select ECU view.
  NOTE: A red X will be next to the module that is not communicating, indicating that the module is not active on the Bus network. A green check indicates that the module is active on the Bus network.

  NOTE: Check the FCM for any active CAN C hardware DTCs, perform DTC before proceeding.
Q: Does the scan tool display a red X next to the module?

Yes :
- Go To 2
No :
- The no response condition is not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring for chafed, pierced, pinched, and partially broken wires and the wiring harness connectors for broken, bent, pushed out, and corroded terminals.
(A919) FUSED B(+) CIRCUIT OPEN OR SHORTED

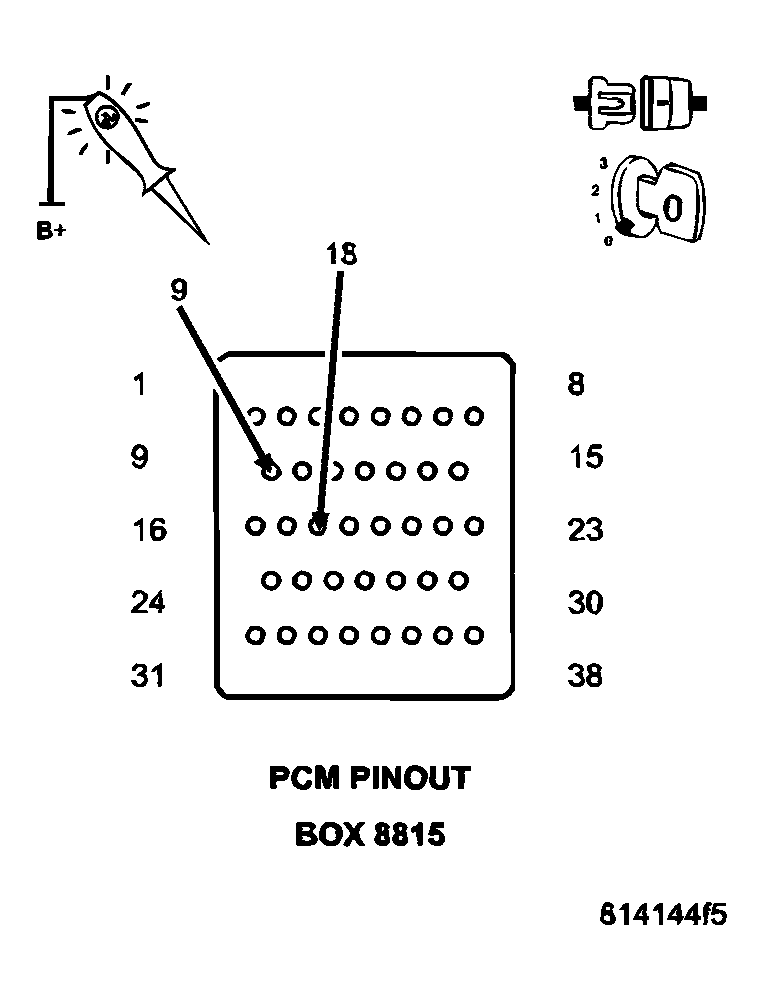

Fig 1: Checking (A919) Fused B(+) Circuit
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
1. Turn the ignition off.
  NOTE: Check IPM fuses before continuing.
2. Disconnect the PCM C1 harness connector.
  CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install Miller Special Tool #8815 to perform diagnosis.
3. Using a 12-volt test light connected to ground, check the (A919) Fused B(+) circuit.
Q: Does the test light illuminate brightly?

Yes :
- Go To 3
No :
- Repair the (A919) Fused B(+) circuit for an open or short.
- Perform (NGC) POWERTRAIN VERIFICATION TEST VER - 5.
(Z913) (Z937) GROUND CIRCUIT OPEN

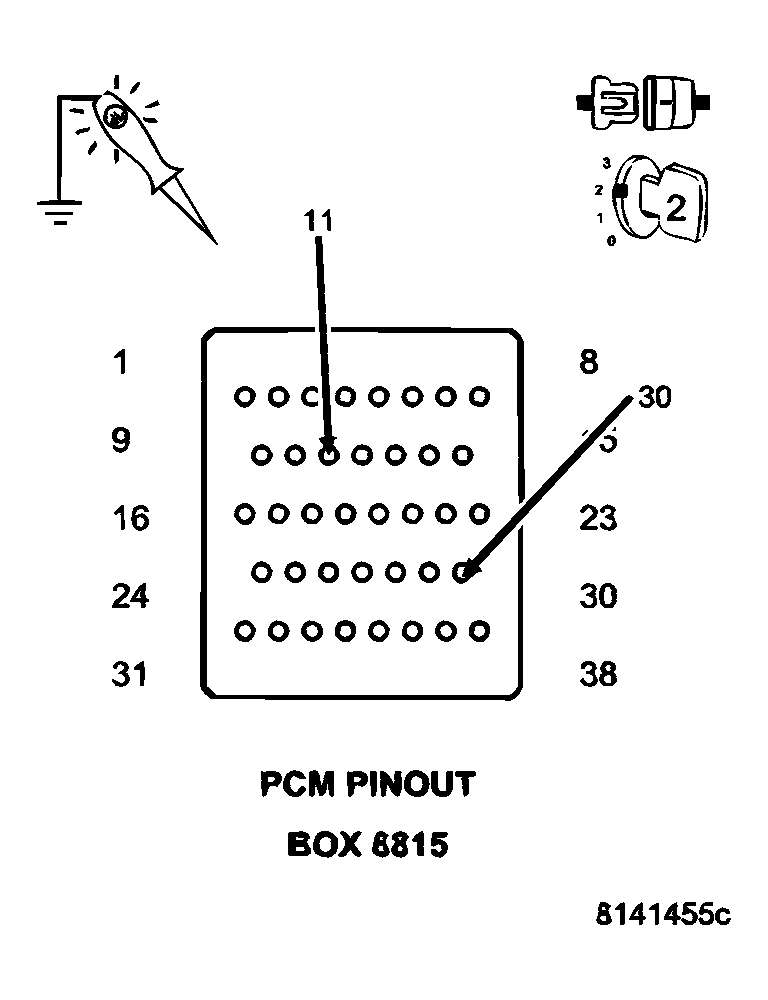

Fig 2: Checking (Z913) And (Z937) Ground Circuit
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
1. Using a 12-volt test light connected to 12-volts, check each (Z913) and (Z937) ground circuit.
Q: Does the test light illuminate brightly for each circuit?

Yes :
- Go To 4
No :
- Repair the ground circuit for an open.
- Perform (NGC) POWERTRAIN VERIFICATION TEST VER - 5.
(F202) (F924) FUSED IGNITION SWITCH OUTPUT CIRCUIT OPEN OR SHORTED

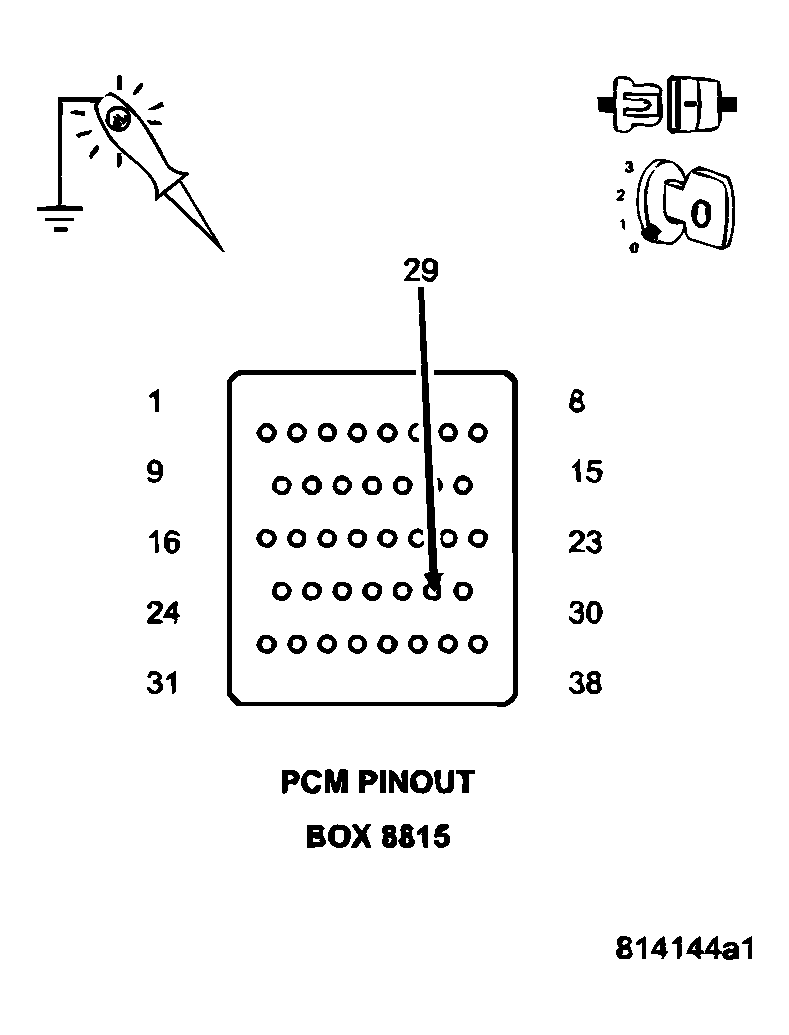

Fig 3: Checking (F202) And (F924) Fused Ignition Switch Output Circuit
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
1. Turn the ignition on.
  NOTE: Check IPM fuses before continuing.
2. Using a 12-volt test light connected to ground, check each (F202) and (F924) Fused Ignition Switch Output circuit.
  NOTE: It may be necessary to turn the ignition to the start position for the (F924) circuit.
Q: Does the test light illuminate brightly for each circuit?

Yes :
- Go To 5
No :
- Repair the Fused Ignition Switch Output circuit for an open or short.
- Perform (NGC) POWERTRAIN VERIFICATION TEST VER - 5.
(D65) CAN C BUS (+) CIRCUIT OPEN

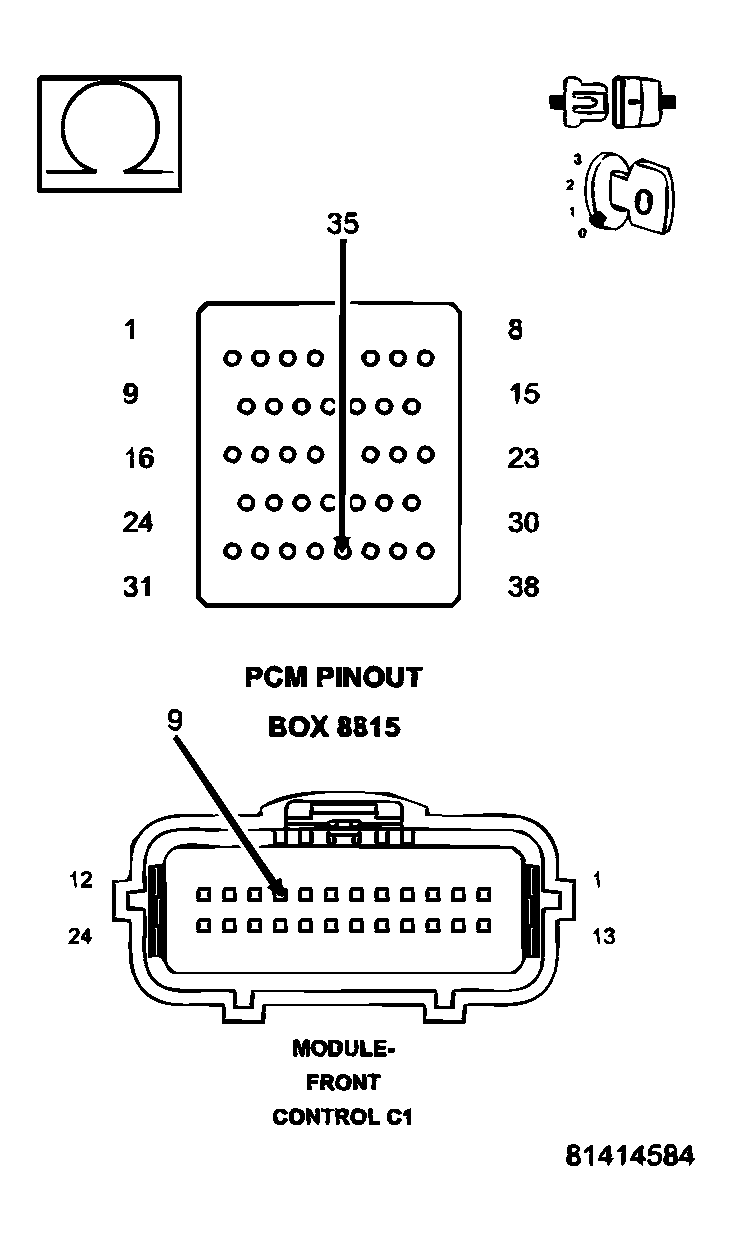

Fig 4: Measuring Resistance Of (D65) CAN C BUS (+) Circuit Between FCM Connector And Appropriate Terminal
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
1. Turn the ignition off.
2. Disconnect the FCM C1 harness connector.
3. Measure the resistance of the (D65) CAN C Bus (+) circuit between the FCM connector and the appropriate terminal of the special tool #8815.
Q: Is the resistance below 5.0 ohms?

Yes :
- Go To 6
No :
- Repair the (D65) CAN C Bus (+) circuit for an open.
- Perform (NGC) POWERTRAIN VERIFICATION TEST VER - 5.
(D64) CAN C BUS (-) CIRCUIT OPEN

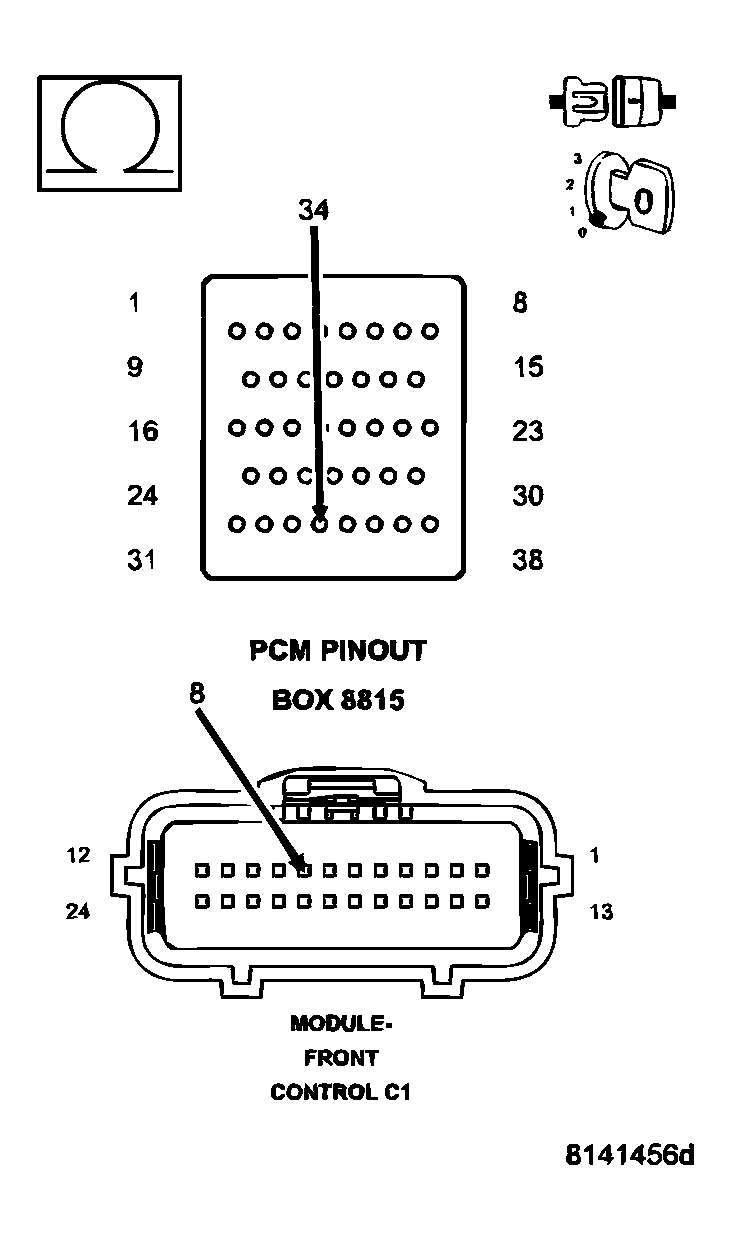

Fig 5: Measuring Resistance Of (D64) CAN C BUS (-) Circuit Between FCM Connector And Terminal
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
1. Measure the resistance of the (D64) CAN C Bus (-) circuit between the FCM connector and the appropriate terminal of the special tool #8815.
Q: Is the resistance below 5.0 ohms?

Yes :
- Replace and program the Powertrain Control Module in accordance with the service information.
- Perform (NGC) POWERTRAIN VERIFICATION TEST VER - 5.
No :
- Repair the (D64) CAN C Bus (-) circuit for an open.
- Perform (NGC) POWERTRAIN VERIFICATION TEST VER - 5.
