*No Response From Radio: Notes

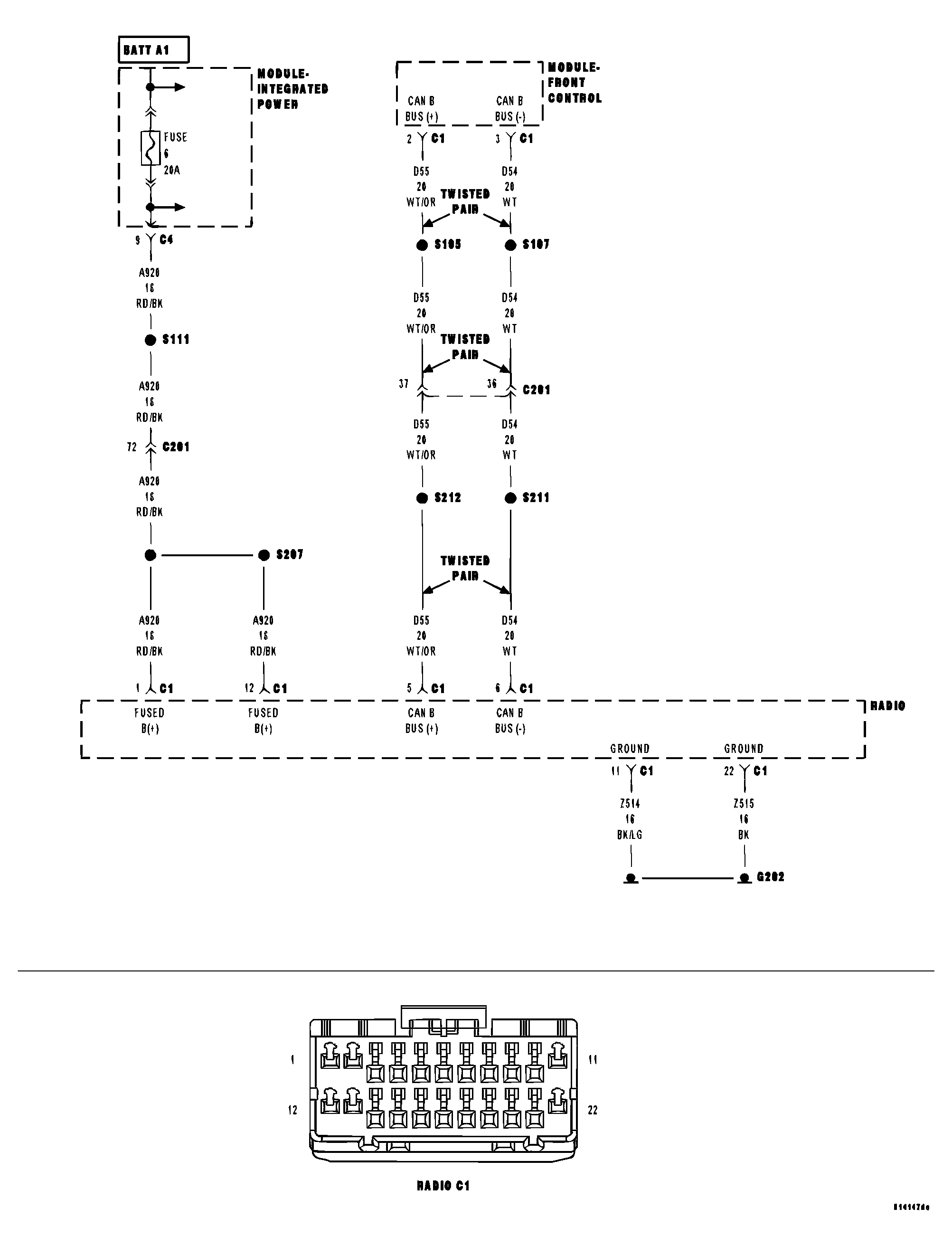

Fig 1: No Response From Radio - Wiring Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For a complete wiring diagram Refer to SYSTEM WIRING DIAGRAMS .

Possible Causes

(A920) FUSED B (+) CIRCUIT OPEN OR SHORTED

(Z514) OR (Z515) GROUND CIRCUIT OPEN

(D55) AND (D54) CAN B BUS CIRCUITS OPEN

RADIO
