*No Response From SDAR (Satellite Receiver): Notes

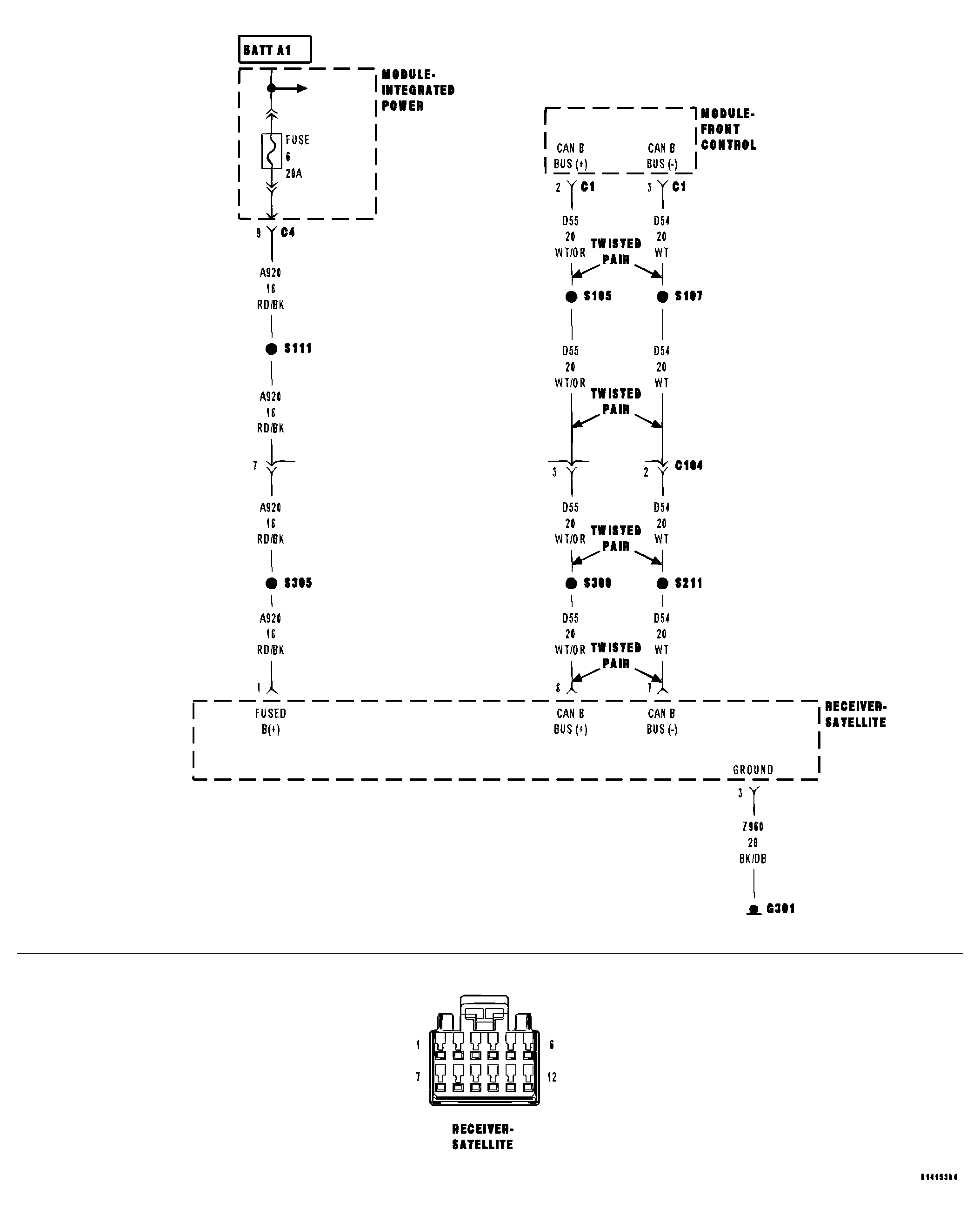

Fig 1: No Response From SDAR (Satellite Receiver) - Wiring Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For a complete wiring diagram Refer to SYSTEM WIRING DIAGRAMS .

Possible Causes

(A920) FUSED B (+) CIRCUIT OPEN OR SHORTED

(Z960) GROUND CIRCUIT OPEN

(D55) AND (D54) CAN B BUS CIRCUITS OPEN

SATELLITE RECEIVER
