DTC U0001: Can C Bus Circuit: Notes

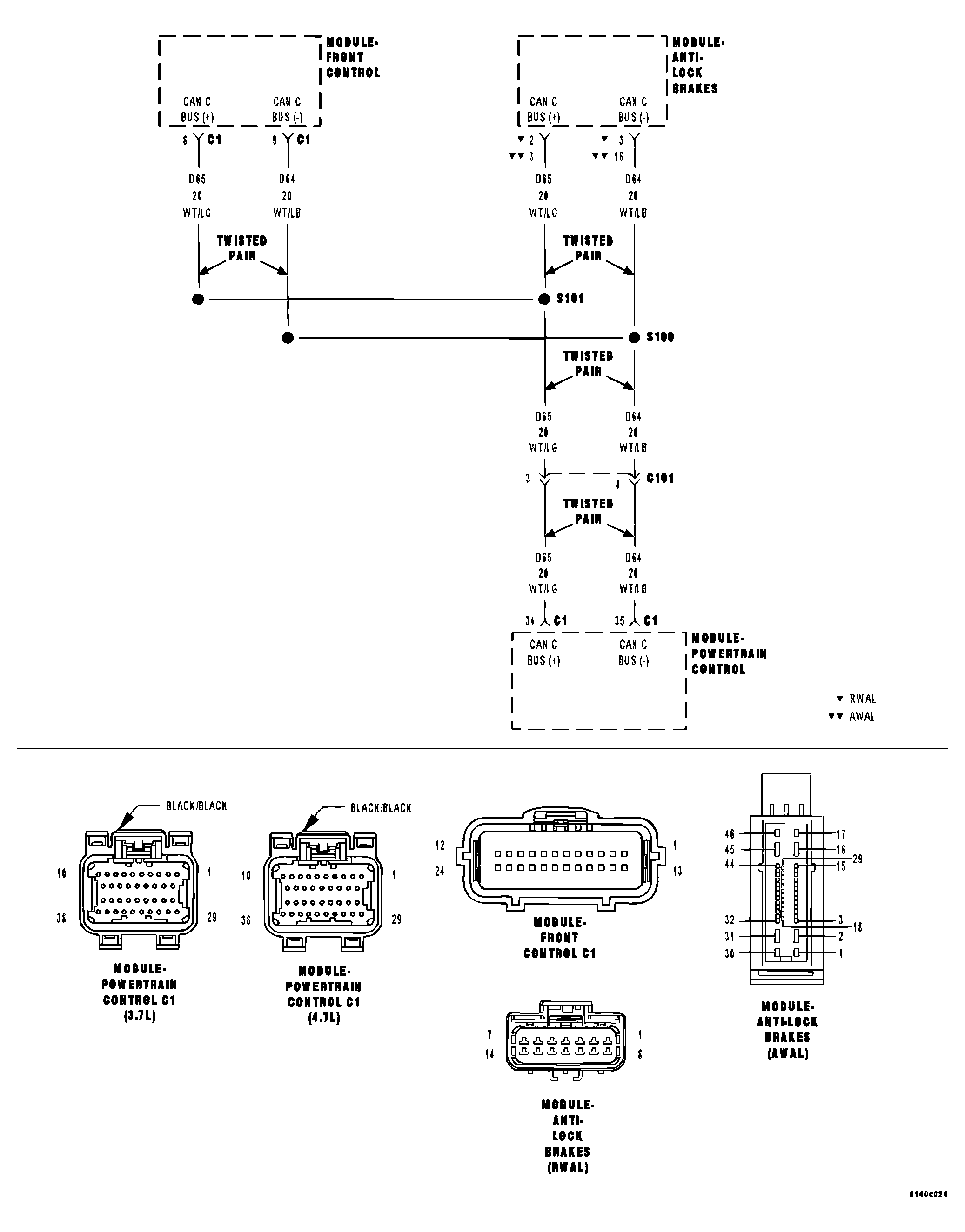

Fig 1: U0001-CAN C BUS - Wiring Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For a complete wiring diagram Refer to SYSTEM WIRING DIAGRAMS .

• When Monitored:

  With the ignition on  .

• Set Condition:

  The FCM detects a short in either CAN C Bus circuit  .

Possible Causes

(D65) CAN C BUS (+) CIRCUIT SHORTED TO GROUND

(D64) CAN C BUS (-) CIRCUIT SHORTED TO GROUND

(D65) CAN C BUS (+) CIRCUIT SHORTED TO VOLTAGE

(D64) CAN C BUS (-) CIRCUIT SHORTED TO VOLTAGE

(D65) CAN C BUS (+) CIRCUIT SHORTED TO (D64) CAN C BUS (-) CIRCUIT

ANTILOCK BRAKE MODULE

POWERTRAIN CONTROL MODULE

FRONT CONTROL MODULE
