DTC U0023: Can B Bus (+) Circuit High: Notes

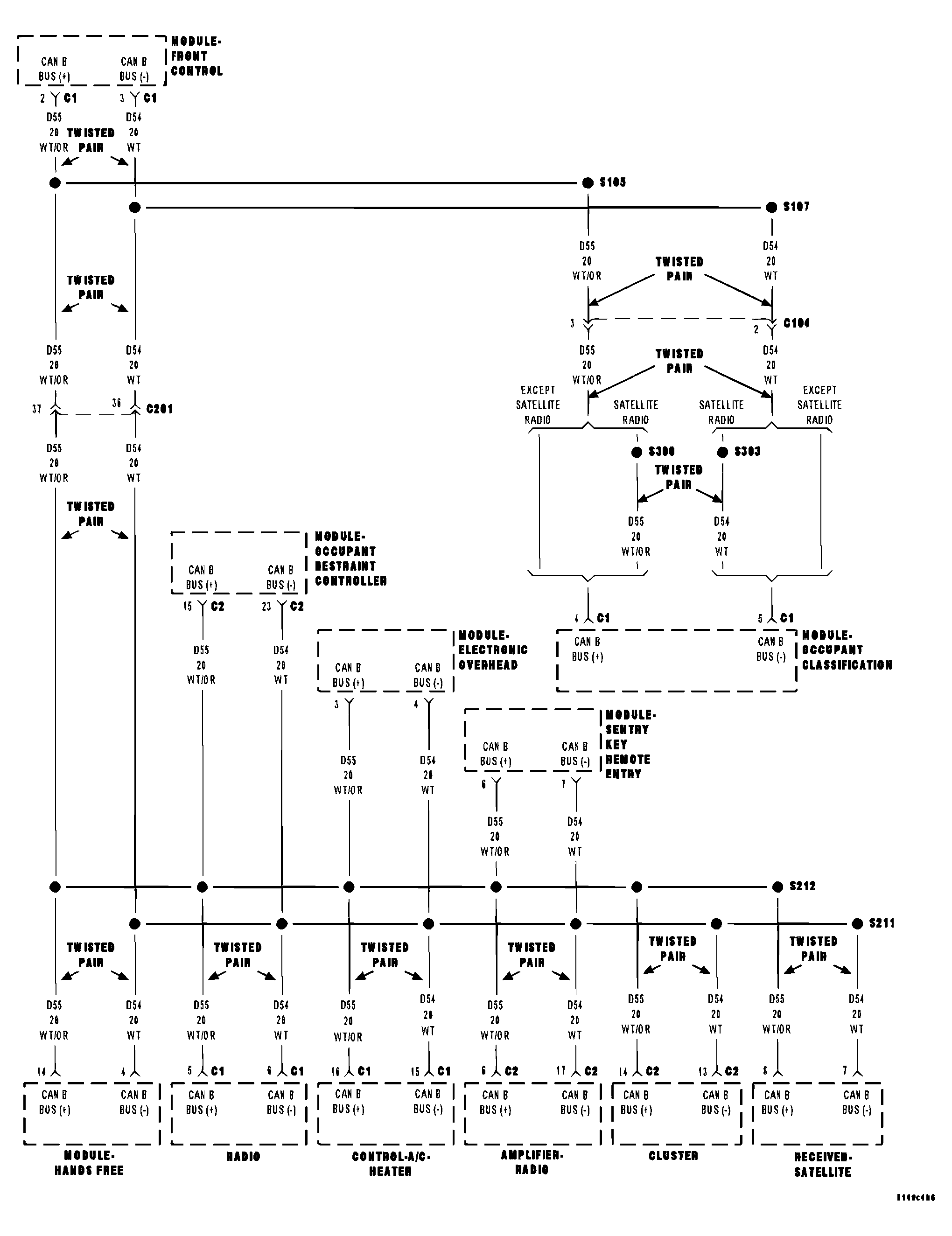

Fig 1: U0023-CAN B BUS (+) High - Wiring Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For a complete wiring diagram Refer to SYSTEM WIRING DIAGRAMS .

• When Monitored:

  Continuously

• Set Condition:

  The FCM detects the (D55) CAN B Bus (+) circuit is shorted to voltage  .

Possible Causes

(D55) CAN B BUS (+) CIRCUIT SHORTED TO VOLTAGE

ANY CAN B BUS MODULE

FRONT CONTROL MODULE
