*Can C Diagnostic (-) Circuit Open: Notes

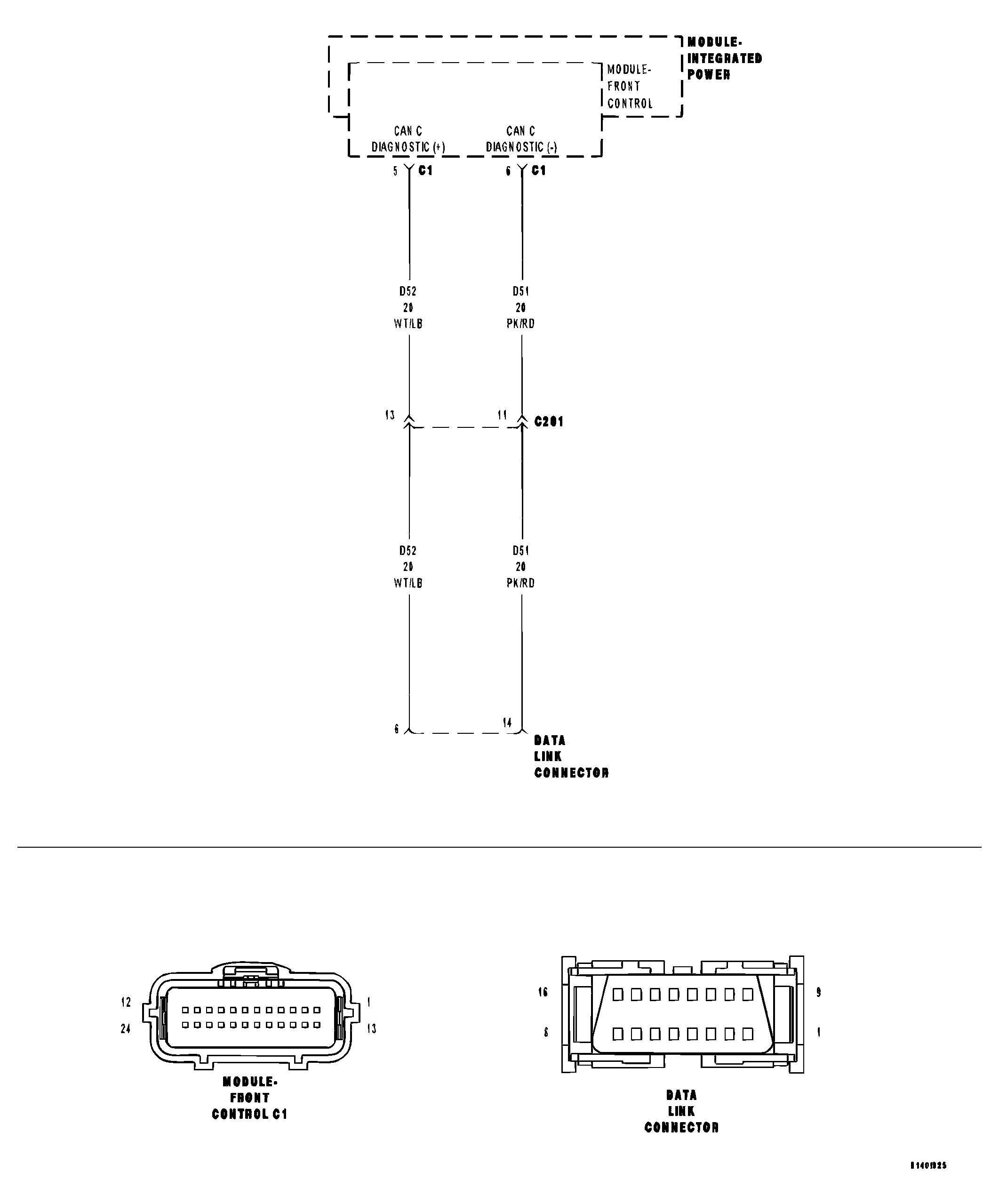

Fig 1: CAN C Diagnostic (-) Open - Wiring Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For a complete wiring diagram Refer to SYSTEM WIRING DIAGRAMS .

• When Monitored:

  When the scan tool queries the FCM  .

• Set Condition:

  The scan tool has detected an open condition on the (D51) CAN C Diagnostic (-) circuit  .

Possible Causes

(D51) CAN C DIAGNOSTIC (-) CIRCUIT OPEN

FRONT CONTROL MODULE
