Diagnostic Test

TEST FOR INTERMITTENT CONDITION
1. Turn the ignition on.
  NOTE: Ensure the IOD fuse is installed and battery voltage is between 10.0 and 16.0 volts.

  NOTE: Ensure the scan tool is updated to the latest software.

  NOTE: If the scan tool displays any error messages involving the CAN C Diagnostic circuits, diagnose and repair the error message before proceeding. Refer to the DIAGNOSTIC TROUBLE CODES (DTC) LIST .

  NOTE: A loss of communication with the FCM can cause the ECU View button on the scan tool to be inoperative (not highlighted).
2. With the scan tool, attempt to select ECU view.
Q: Can the scan tool communicate with the FCM?

Yes :
- The no response condition is not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring for chafed, pierced, pinched, and partially broken wires and the wiring harness connectors for broken, bent, pushed out, and corroded terminals.
No :
- Go To 2
(A918) FUSED B(+) CIRCUIT OPEN AT DLC

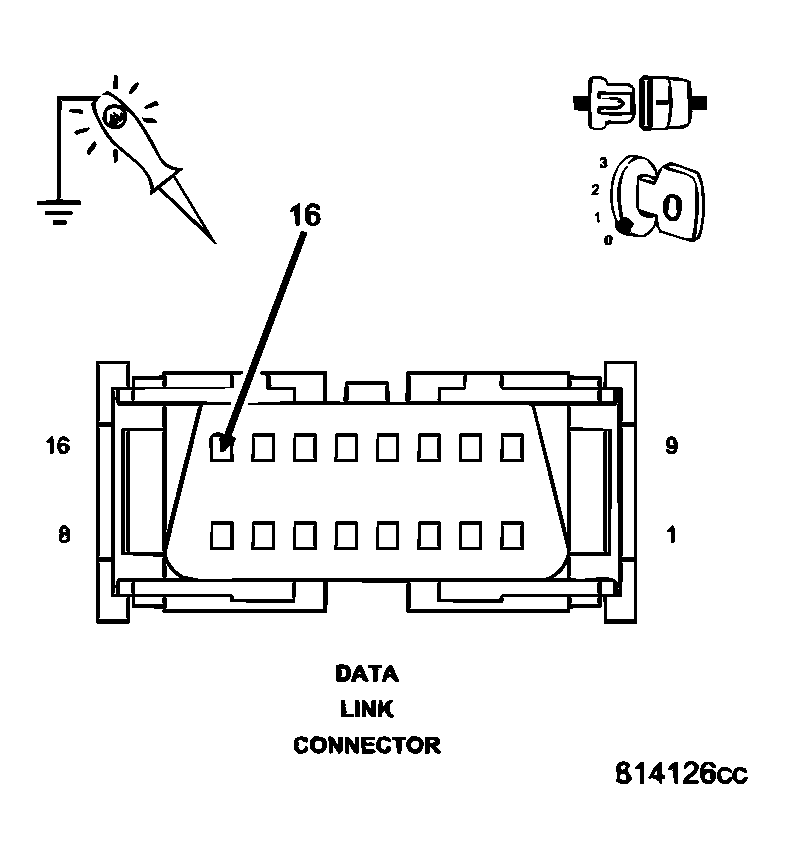

Fig 1: Checking (A918) Fused B(+) Circuit
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
1. Disconnect the scan tool from the DLC.
  NOTE: Check IPM fuses before continuing.
2. Using a 12-volt test light connected to ground, check the (A918) Fused B(+) circuit.
Q: Does the test light illuminate brightly?

Yes :
- Go To 3
No :
- Repair the (A918) Fused B(+) circuit for an open or short.
- Perform BODY VERIFICATION TEST - VER 1 . (Refer to DIAGNOSIS AND TESTING ).
(Z11) GROUND CIRCUIT OPEN AT DLC

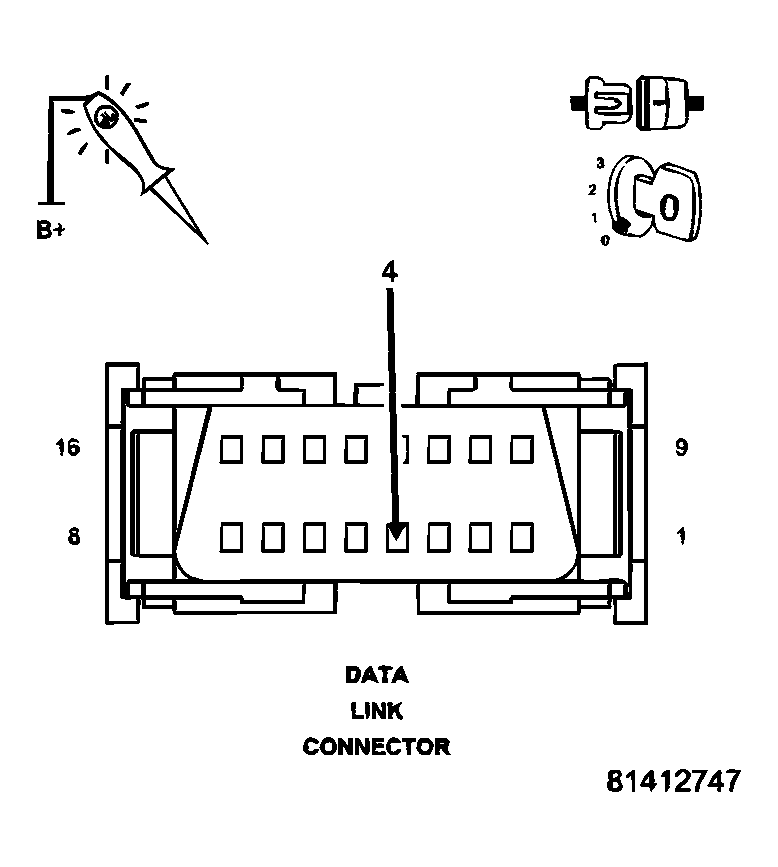

Fig 2: Checking (Z11) Ground Circuit
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
1. Using a 12-volt test light connected to 12-volts, check the (Z11) ground circuit.
Q: Does the test light illuminate brightly?

Yes :
- Go To 4
No :
- Repair the (Z11) ground circuit for an open.
- Perform BODY VERIFICATION TEST - VER 1 . (Refer to DIAGNOSIS AND TESTING ).
GROUND CIRCUITS OPEN AT FCM C1 AND C2 CONNECTORS

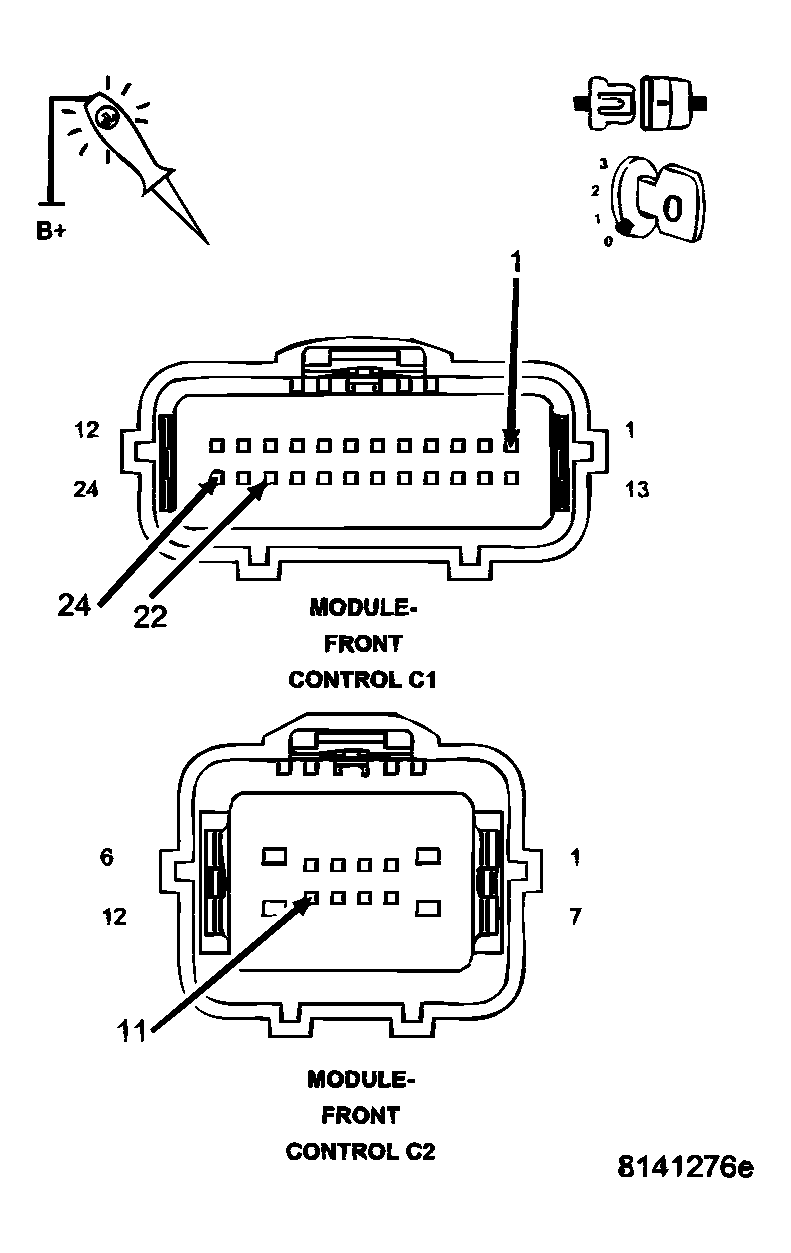

Fig 3: Disconnecting FCM C1 And C2 Harness Connectors
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
1. Disconnect the FCM C1 and C2 harness connectors.
2. Using a 12-volt test light connected to 12-volts, check each ground circuit.
Q: Does the test light illuminate brightly for each circuit?

Yes :
- Go To 5
No :
- Repair the ground circuit for an open. Inspect the connector for damage.
- Perform BODY VERIFICATION TEST - VER 1 . (Refer to DIAGNOSIS AND TESTING ).
GROUND CIRCUITS OPEN AT FCM IPM CONNECTOR

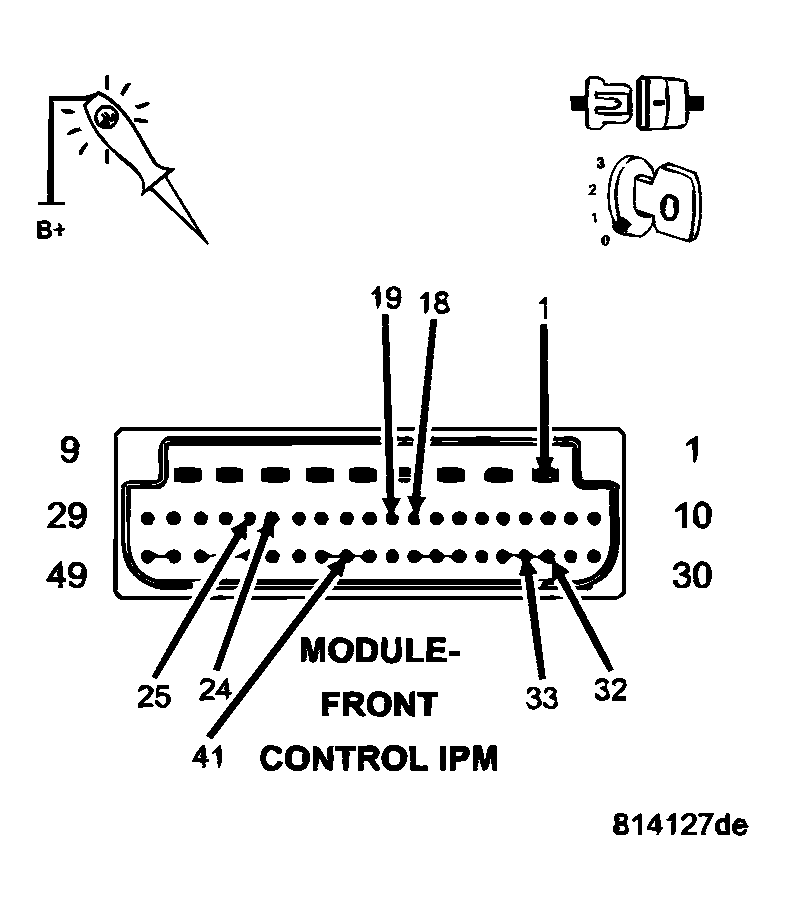

Fig 4: Removing FCM From IPM
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
1. Remove the FCM from the IPM.
2. Using a 12-volt test light connected to 12-volts, check each ground circuit.
Q: Does the test light illuminate brightly for each circuit?

Yes :
- Go To 6
No :
- Repair the ground circuit for an open. Inspect the connector for damage.
- Perform BODY VERIFICATION TEST - VER 1 . (Refer to DIAGNOSIS AND TESTING ).
FUSED B(+) CIRCUITS OPEN AT FCM IPM CONNECTOR

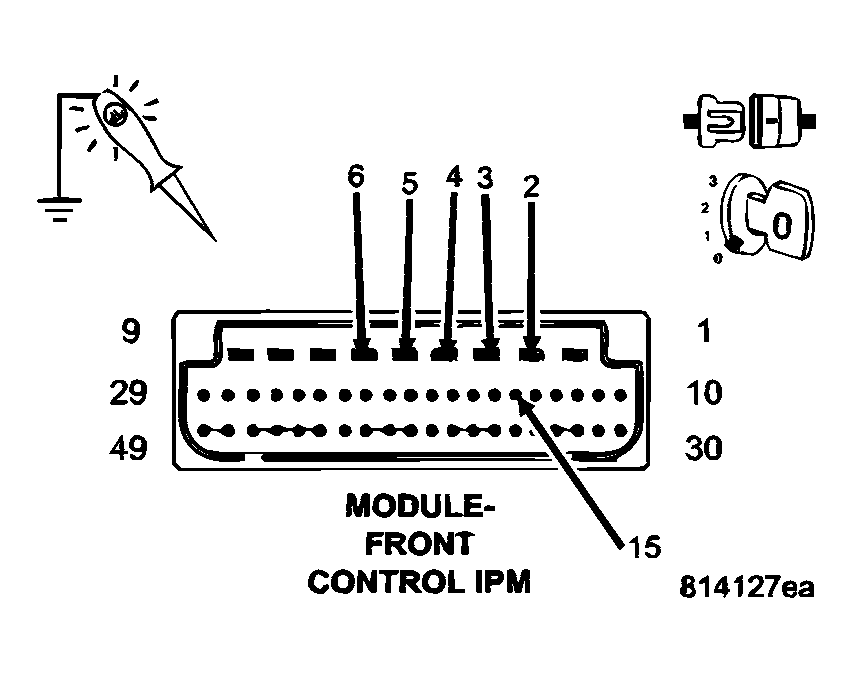

Fig 5: Identifying Fused B(+) Open At FCM IPM Connector
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: Check IPM fuses before continuing.
1. Using a 12-volt test light connected to ground, check each Fused B(+) circuit.
Q: Does the test light illuminate brightly for each circuit?

Yes :
- Replace and program the Front Control Module in accordance with the service information.
- Perform BODY VERIFICATION TEST - VER 1 . (Refer to DIAGNOSIS AND TESTING ).
No :
- Repair the Fused B(+) circuit for an open. Inspect the connector for damage. If OK, replace the Power Distribution Center (PDC) portion of the Integrated Power Module (IPM).
- Perform BODY VERIFICATION TEST - VER 1 . (Refer to DIAGNOSIS AND TESTING ).
