*No Response From WCM (Sentry Key Remote Entry Module): Notes

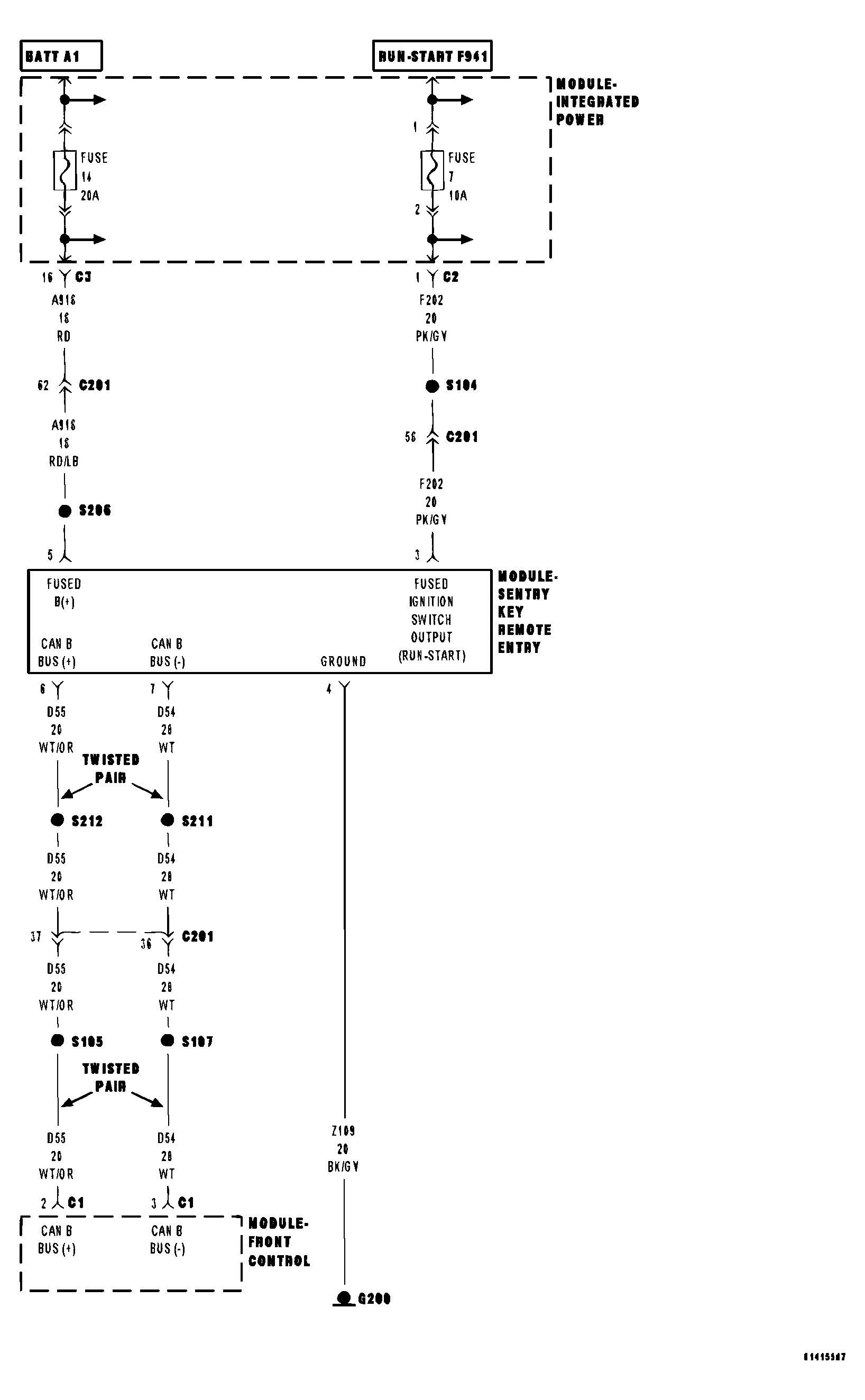

Fig 1: No Response From WCM (Sentry Key Remote Entry Module) - Wiring Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For a complete wiring diagram Refer to SYSTEM WIRING DIAGRAMS .

Possible Causes

(A918) FUSED B(+) CIRCUIT OPEN OR SHORTED

(Z109) GROUND CIRCUIT OPEN

(F202) FUSED IGNITION SWITCH OUTPUT CIRCUIT OPEN OR SHORTED

(D55) AND (D54) CAN B BUS CIRCUITS OPEN

SENTRY KEY REMOTE ENTRY MODULE
