Module - Front Control: Removal

  1. Disconnect and isolate the battery negative cable.
  2. Remove the Integrated Power Module (IPM) from the engine compartment.
  3. Remove the four fasteners (2) securing the Front Control Module (FCM) (1) to the Power Distribution Center (PDC) (3).
  4. Separate the FCM from the PDC by pulling the two straight away from each other to disengage the electrical connector.

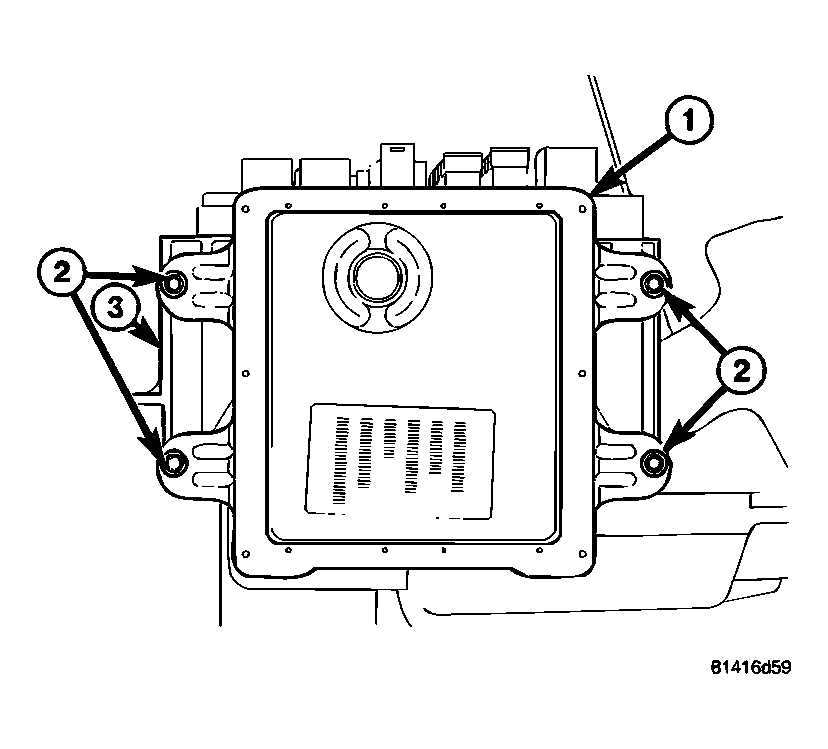

    Fig 1: Removing Integrated Power Module (IPM) From Engine Compartment
    G04283922Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
