*No Response From CCN (Cluster): Notes

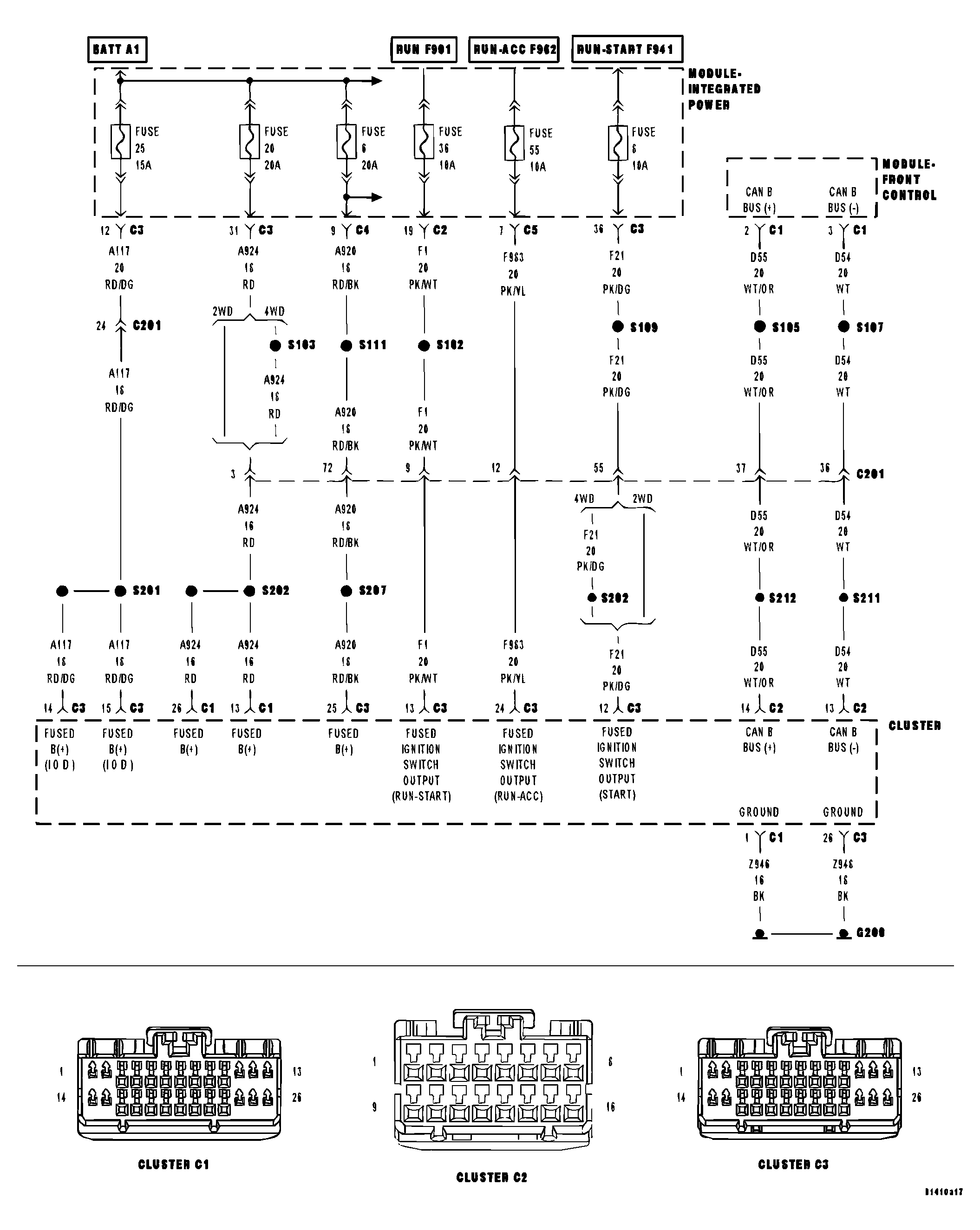

Fig 1: No Response From CCN (CLUSTER) - Wiring Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For a complete wiring diagram Refer to SYSTEM WIRING DIAGRAMS .

Possible Causes

(A924) (A920) (A117) FUSED B(+) CIRCUITS OPEN OR SHORTED

(Z946) (Z948) GROUND CIRCUITS OPEN

(F21) (F983) FUSED IGNITION SWITCH OUTPUT CIRCUIT OPEN OR SHORTED

(D55) AND (D54) CAN B BUS CIRCUITS OPEN CLUSTER (CCN)
